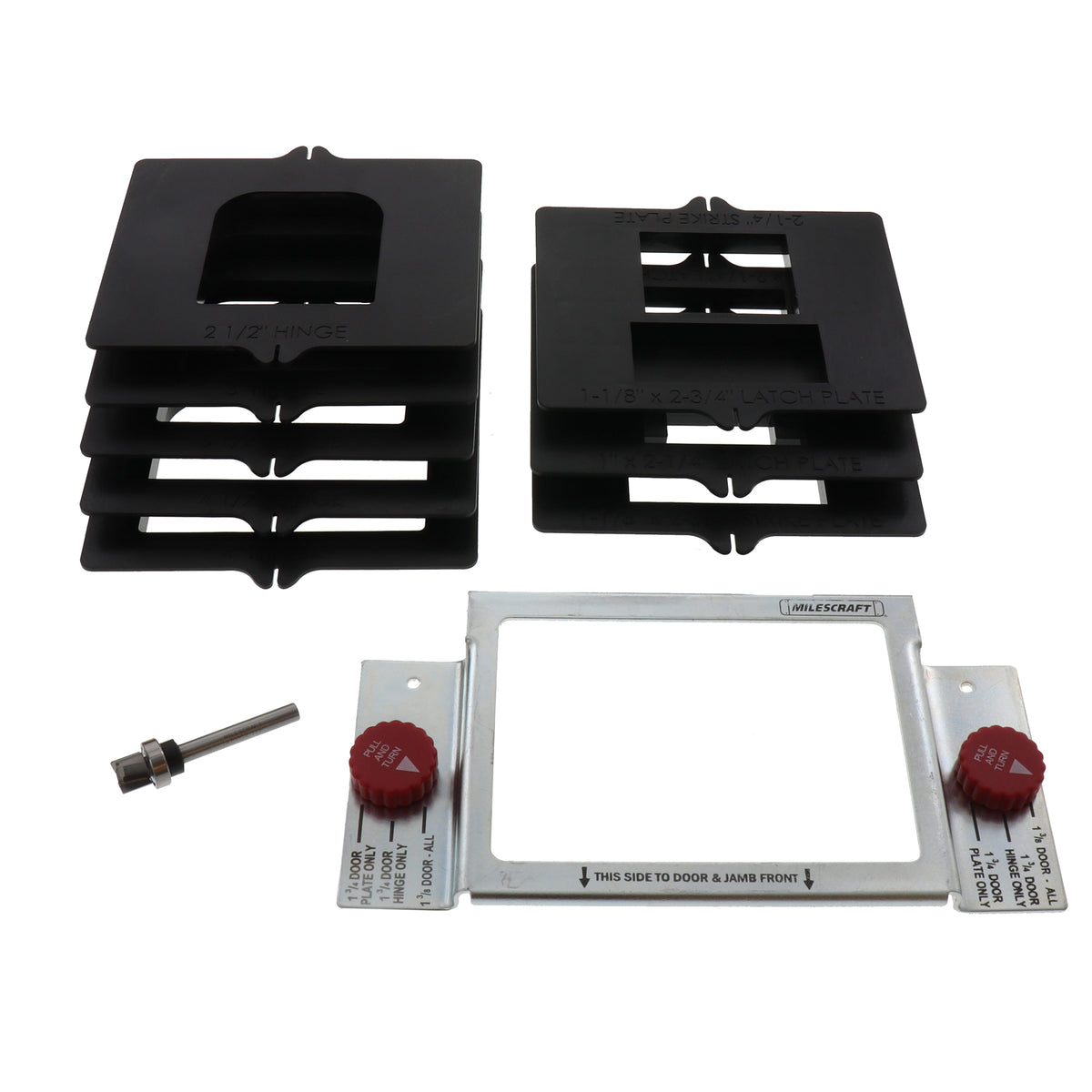

Milescraft Door Hinge Morticing Set with Router Bit

Create mortices for door hinges with Milescraft's Door Mortice Kit

Increase security and privacy in your home by replacing interior and exterior doors without damaging the jamb or door frame with the Deluxe DoorMorticeKit™ from Milescraft.

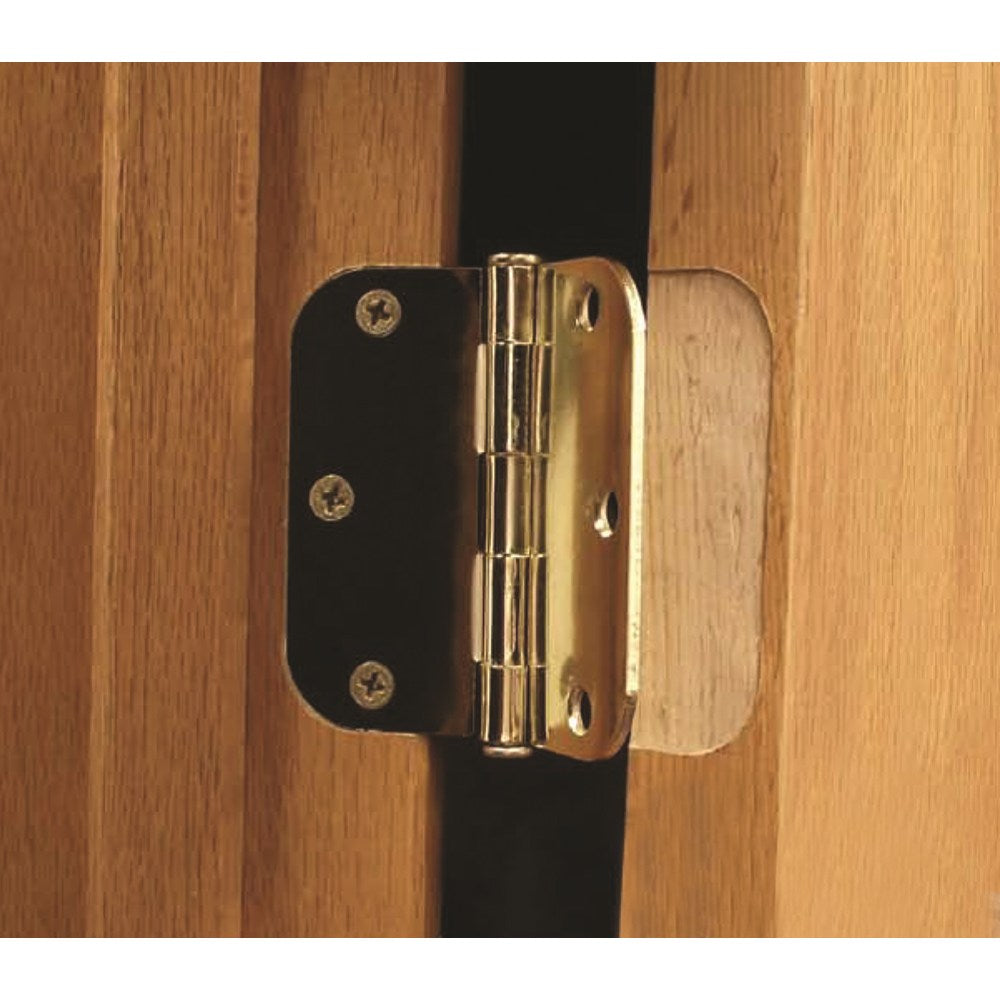

By routing matching mortices for hinges, as well as strike and latch plates into the door and jamb, you won't have to tear a hole in the wall just to hang a better wooden door. Featuring an easy to use drop-in template design with a sturdy steel frame, this kit comes with everything you need for virtually all hinges on 35mm and 45mm doors and jambs.

Easily set the door thickness and you're ready to go

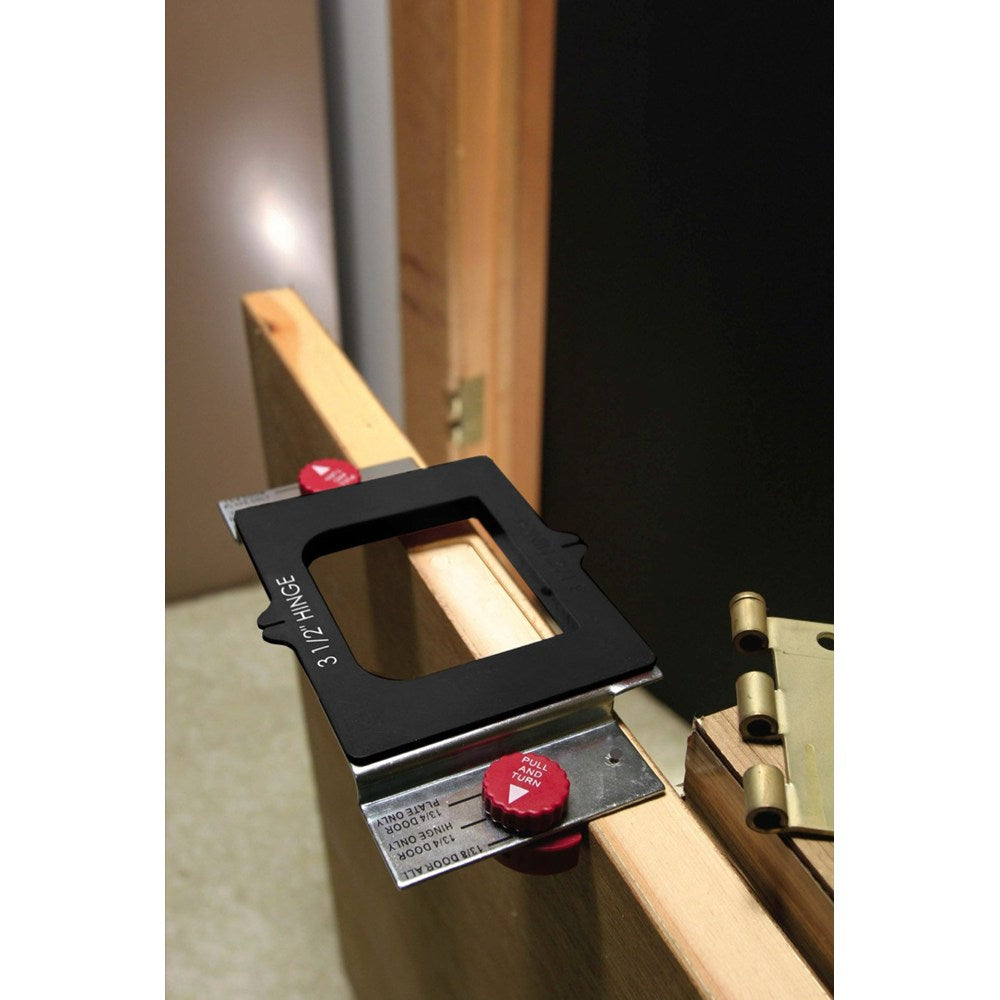

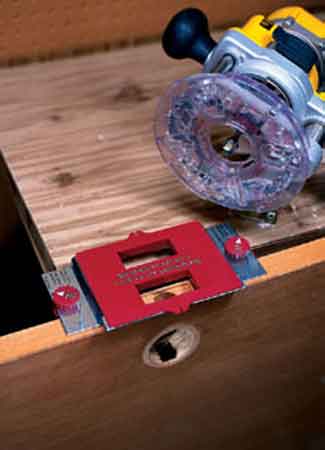

Simply set the door thickness selector knob, attach to the door or jamb, drop in the plainly marked template for your door hardware, and rout! Includes a durable tungsten carbide tipped 1/2in router bit with ball bearing, eliminating the need for guide bushings. Also includes an Easy Measure Guide where we have done the math and made it simple for you to get standard industry placement of your door hardware.

Centered tabs on each template ensure complete accuracy. This product is packaged in a clamshell that snaps shut to act as a hanging storage container for your templates when not in use. Simply cut off the package seal edge when opening for reuse.

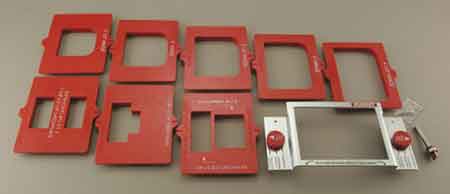

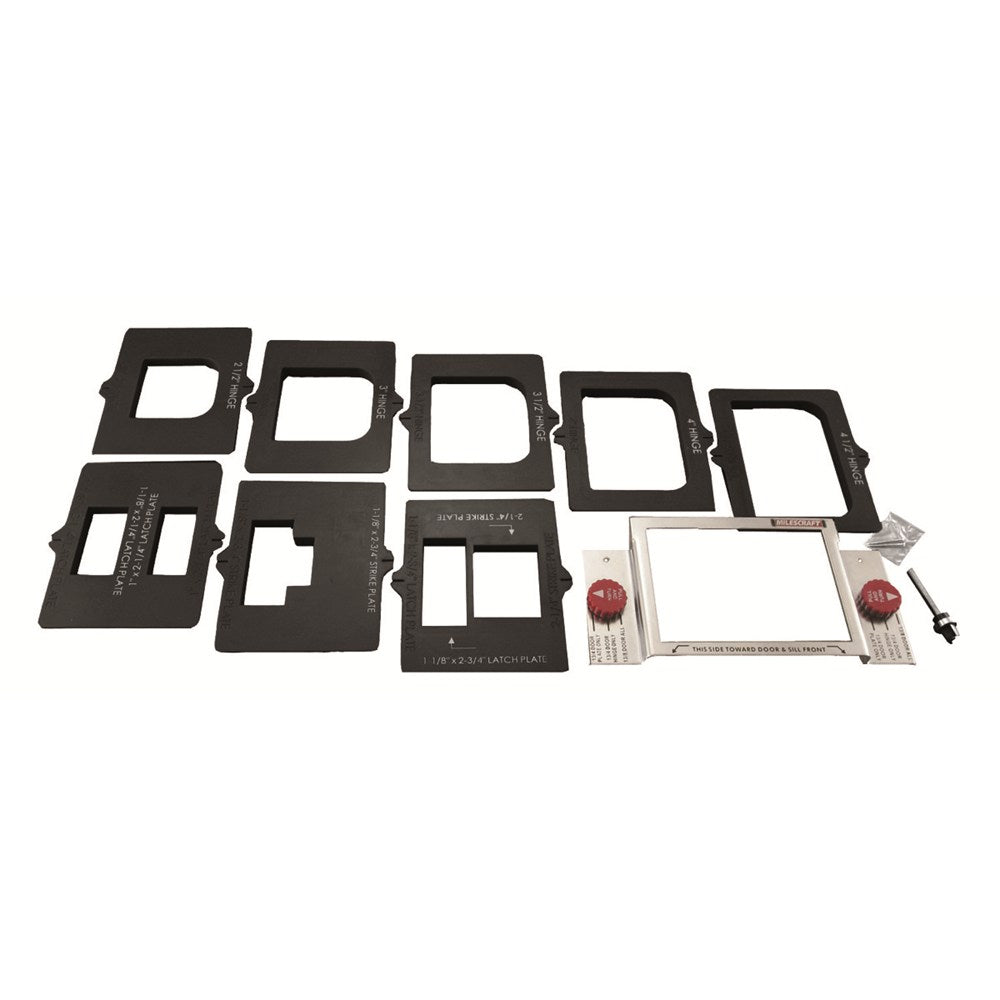

This Kit Includes The Following Templates -

HINGE MORTICES FOR SQUARE AND ROUNDED HINGES:

• 63mm (2 1/2in)
• 76mm (3in)
• 88 - 90mm (3 1/2in)
• 100 - 102mm (4in)
• 115mm (4 1/2in)

STRIKE PLATE MORTICES:

• 70 x 28mm (2 3/4in x 1 1/8in)
• 63 x 38mm (2 1/4in x 1 1/2in)
• 70 x 38mm (2 3/4in x 1 1/2in)

LATCH PLATE MORTICES:

• 63 x 25mm (2 1/4in x 1in)
• 63 x 28mm (2 1/4in x 1 1/8in)
• 70 x 28mm (2 3/4in x 1 1/8in)
