Milescraft ShelfJig Shelf Pin Hole Poisitioning Jig with Drill Bit

Create custom cabinet shelving like a pro with the Milescraft ShelfJig - a simple and accurate shelf pin drilling jig suitable for a broad range of cabinetry applications. It’s accurate, easy to use, lightweight and durable, perfect for the enthusiast and professional cabinetmaker alike.

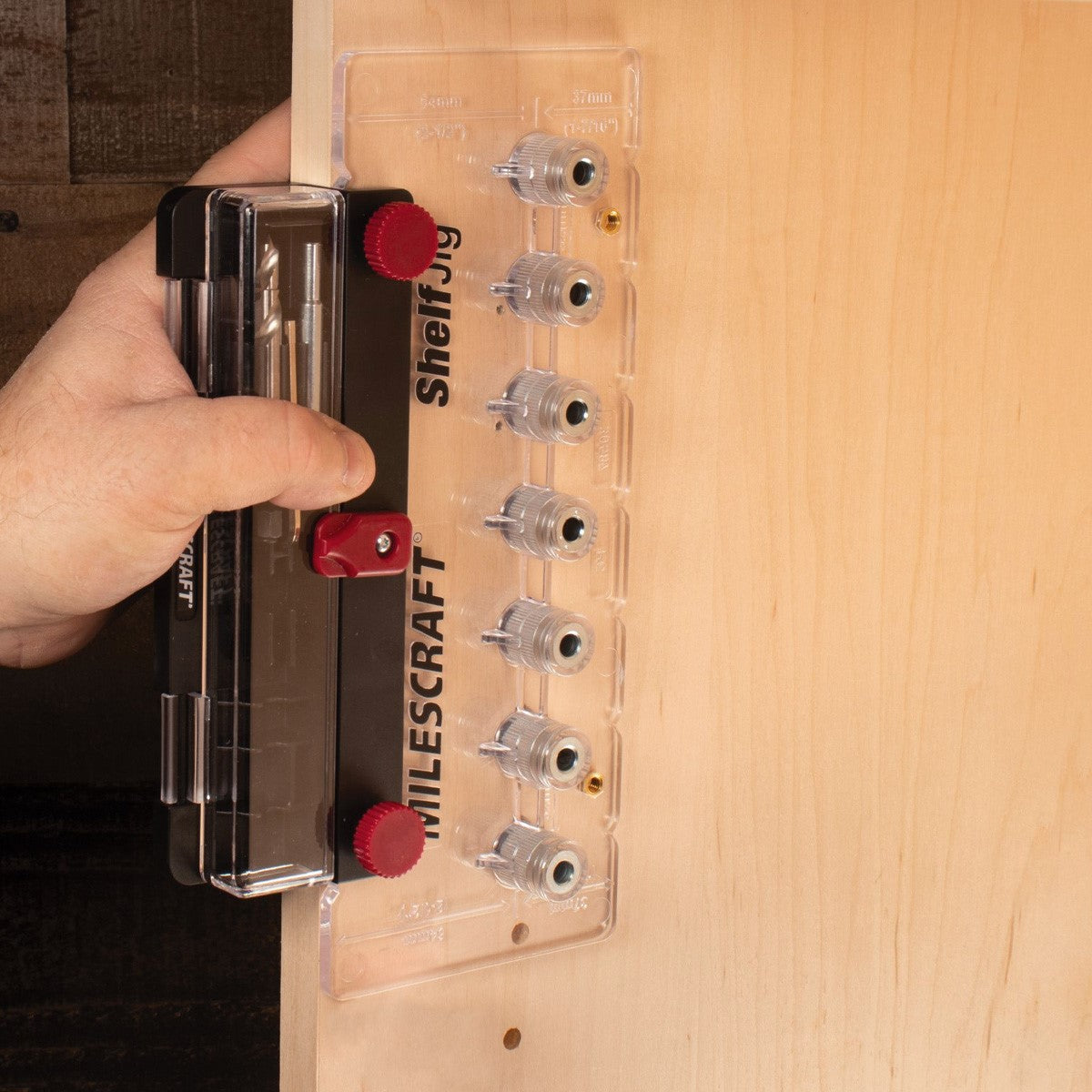

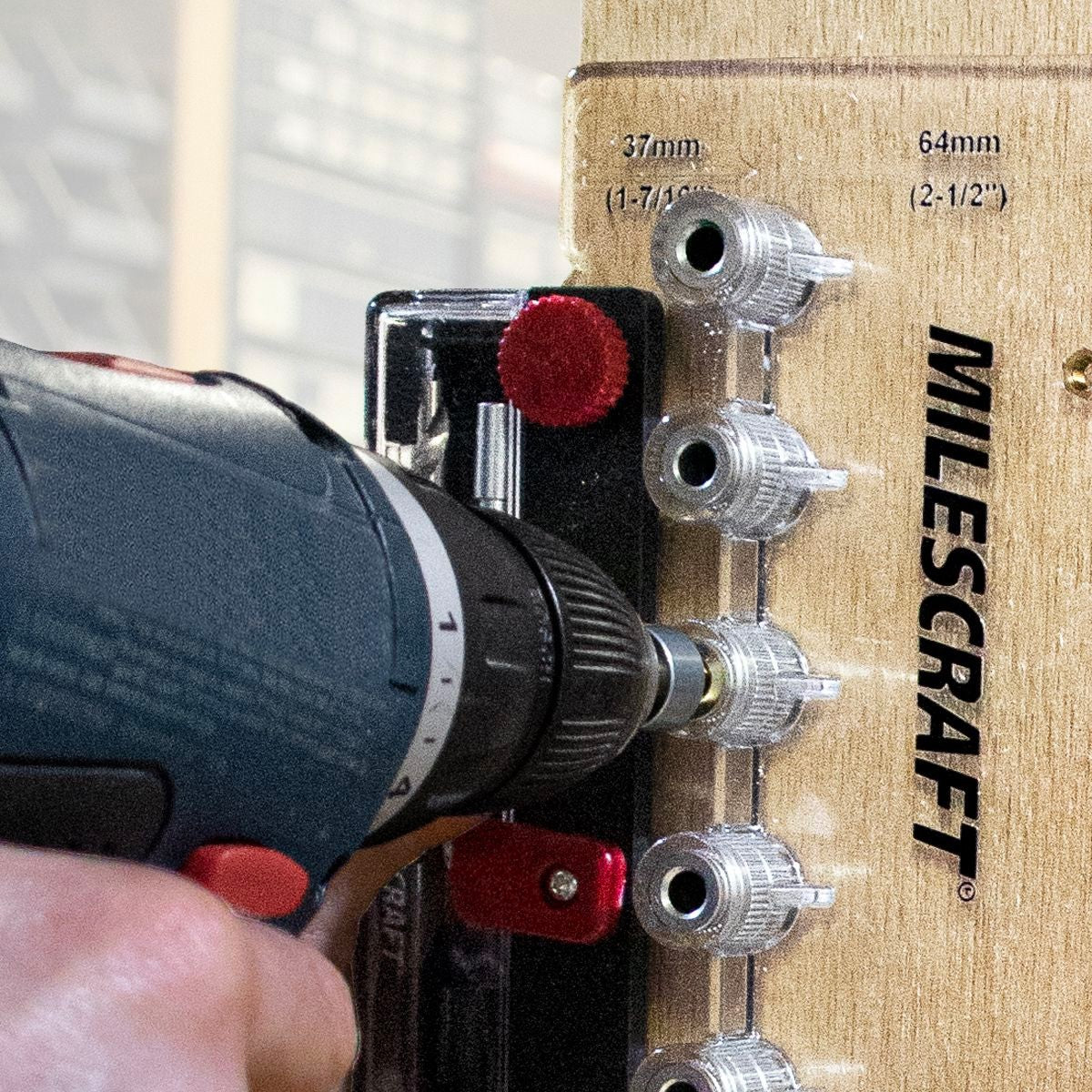

The Milescraft ShelfJig positions and drills perfect 5mm or ¼” shelf pin holes every time. You can drill up to 7 holes at once with the error reducing, see-through body, then reposition for the next set using the included indexing pins.

The centering notches built into the jig make it easy to set it in place.

The ShelfJig features standard 32mm spacing between holes, and the guide fence can be repositioned to give you 37mm or 64mm setbacks. Removing the guide fence allows for easy access to the back of the cabinet box.

Included with the jig are two different drill bits to complete holes for all of the most common shelf pins in the market. The quick release, impact ready hex-shaft makes changing bits quick and easy. The detachable guide fence also acts as convenient storage for parts that are not in use.

Features and benefits

• Large template allowing you to accurately drill seven evenly spaced at 32mm apart in a single setting
• Included drill bits create both ¼” and 5mm shelf pin holes
• Clear body construction helps reduce errors and provide a clear working environment
• Hardened metal guide bushings accurately keep the drill bit perpendicular to the worksurface
• Detachable fence can be changed to provide either 37mm or 64mm setbacks
• Convenient centering notches allow for easy alignment
•  ¼” and 5mm indexing pins allows jig to be repositioned to create unlimited series of holes
• May be used on cabinet sides before assembly, assembled cabinets and face-frame or frameless cabinets
• Storage compartment so you never lose your index pins or drill bits

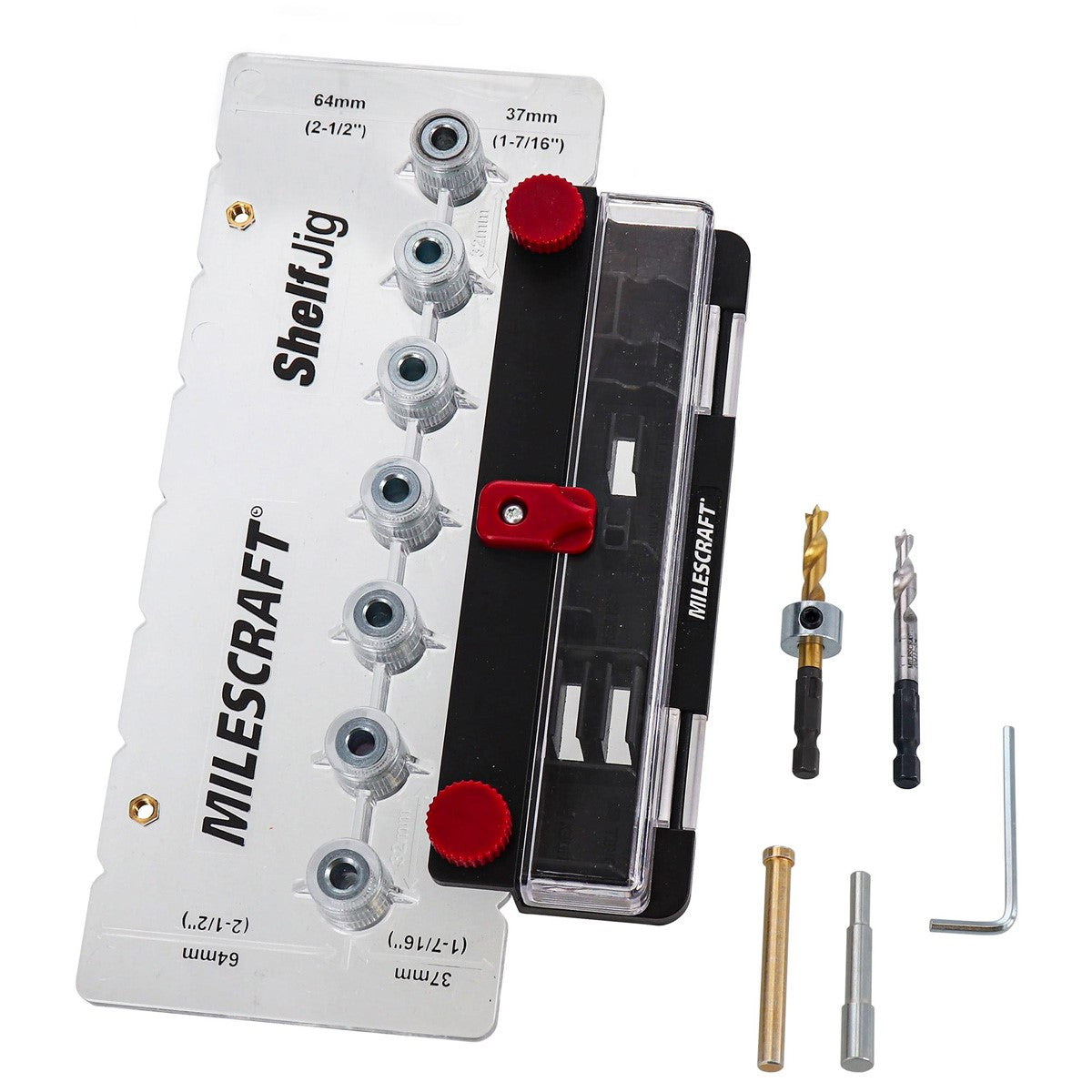

What’s in the box:

• Jig Body
• Detachable Fence with Storage
• ¼” Drill Bit
• 5mm Step Drill Bit
• Depth Stop
• ¼” Indexing Pin
• 5mm Indexing Pin
• 3mm Hex Key
