Sherwood  |  SKU: PTNSC-260

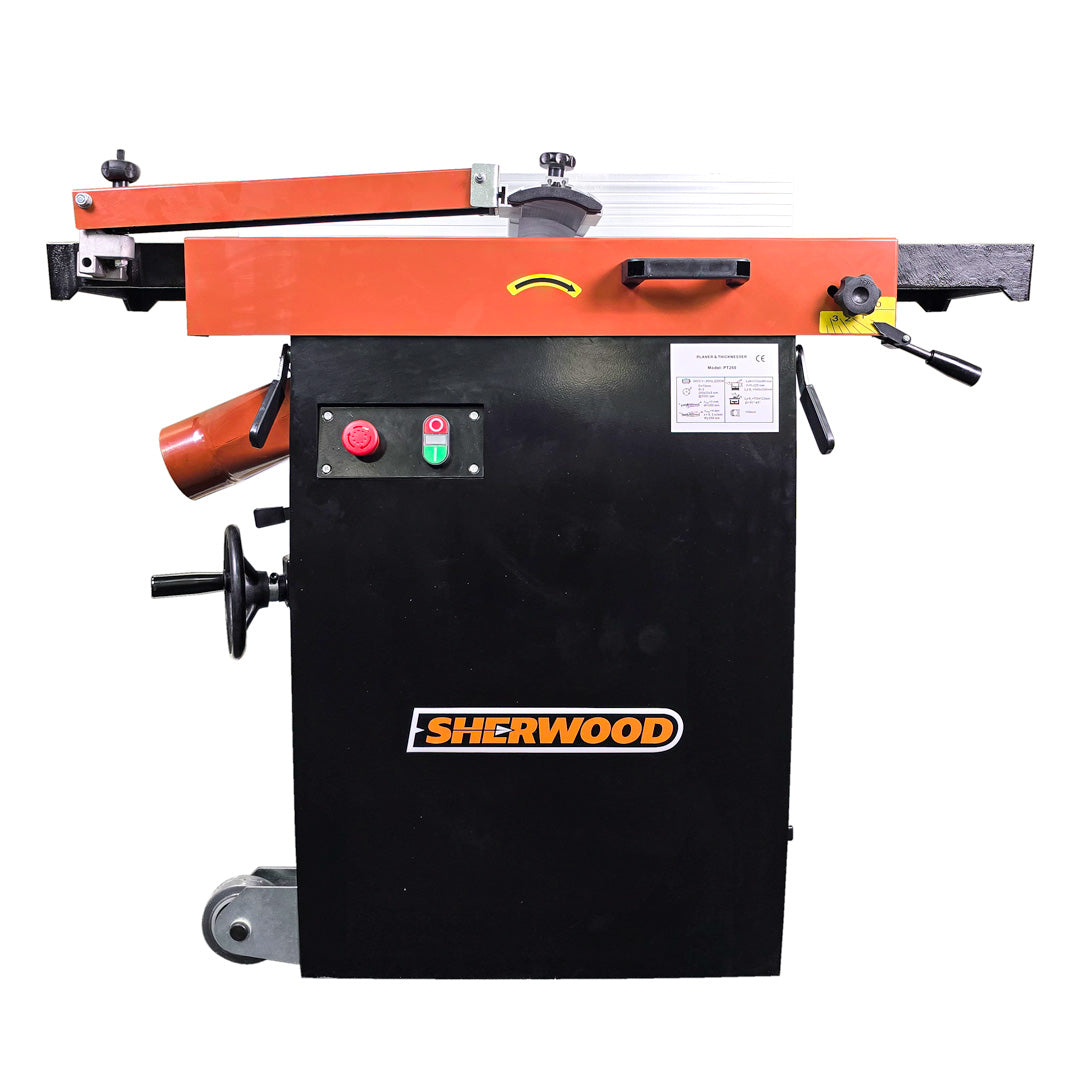

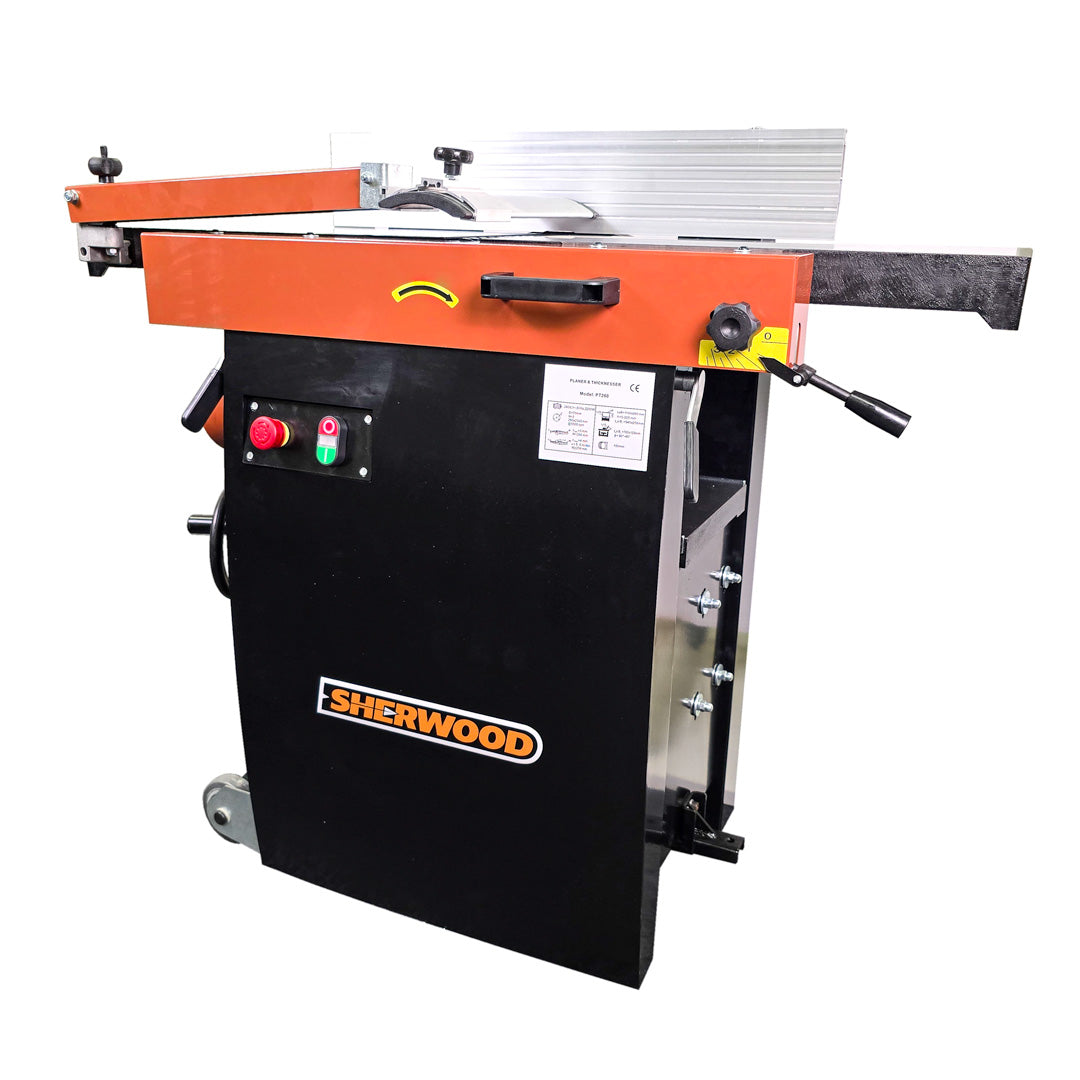

Sherwood 10in Combination Planer Thicknesser with Helical Spiral Cutterhead Carbide Knives 3HP

$3,399.00
Melbourne: 0, Perth: 0

Free Shipping ends in:

00 : 00 : 00 : 00
Days
Hours
Mins
Secs

Sherwood 10in Combination Planer Thicknesser with Helical Spiral Cutterhead Carbide Knives 3HP is backordered and will ship as soon as it is back in stock.

Request Further Information

Sherwood 10in Combination Planer Thicknesser with Helical Spiral Cutterhead Carbide Knives 3HP

Eligible for FREE Shipping*

Sherwood Combination Planers are a compact and versatile planer / thicknesser suitable for all types of wood machining applications. They are the perfect combination machine for the enthusiast and professional woodworker alike.

Dimensioning timber is a fundamental process of woodworking, and a combination planer / thicknesser is the perfect machine to complete this work, especially if you have limited workshop space. Sherwood combination machines are compact, robust and are of a simple design meaning they are easy to tune and maintain.

Combination planer / thicknessers are useful for woodworkers of all skill levels. Once you have learned how to tune and use your combination machine, you can dimension timber with ease. No workshop, whether enthusiast or professional, should be without proper dimensioning machinery.

The Sherwood 10in Lift-Up Combination Planer with Helical Spiral Cutterhead

  • Powerful 2200W (3HP) - 15A plug
  • Helical cutterhead with tungsten carbide knives
  • 260mm wide planing capacity
  • 258 x 225mm thicknessing capacity
  • Easy changeover from planer to thicknesser
  • Precision ground cast iron worktable
  • Aluminium fence and European blade guard

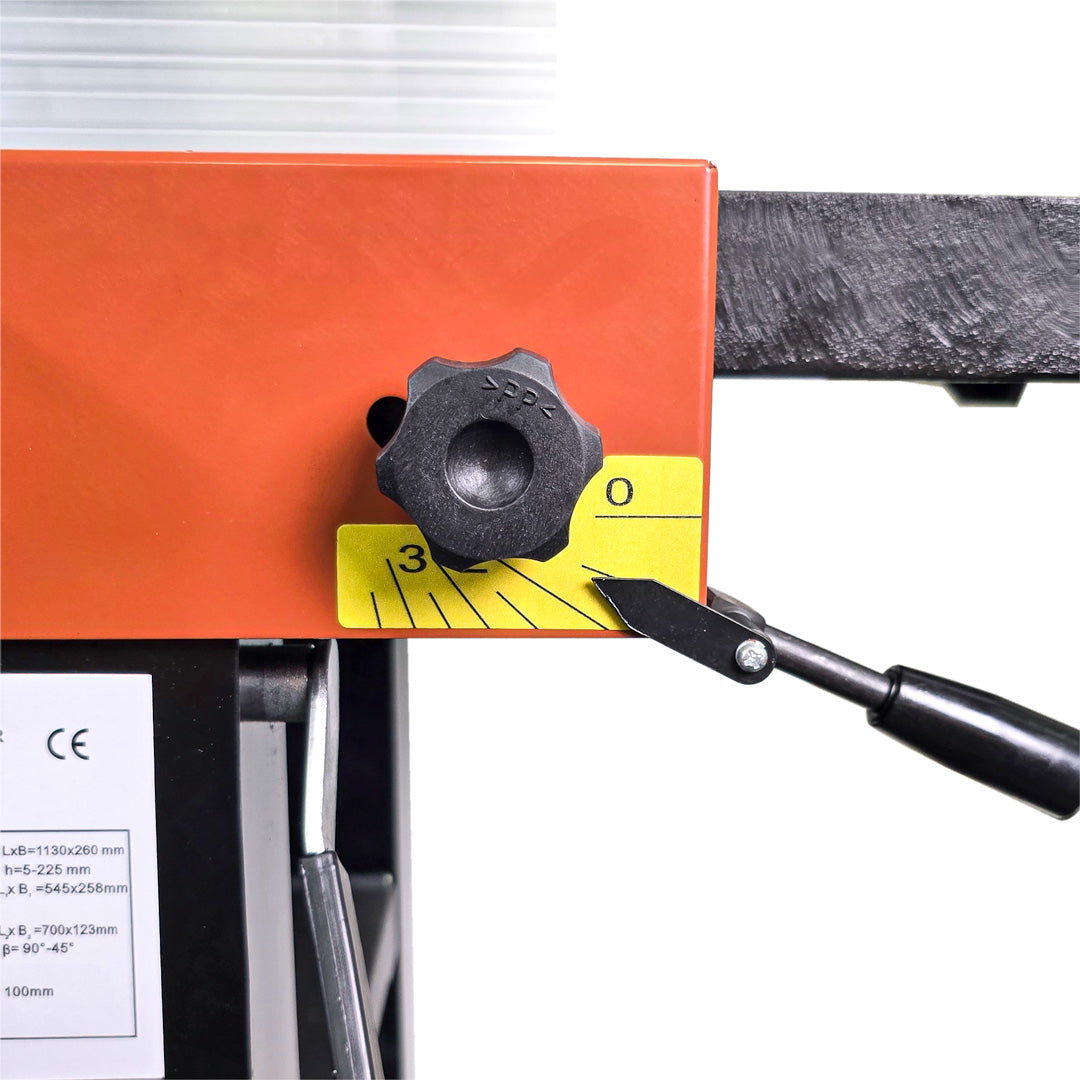

  • Lever worktable height adjustment with depth of cut gauge

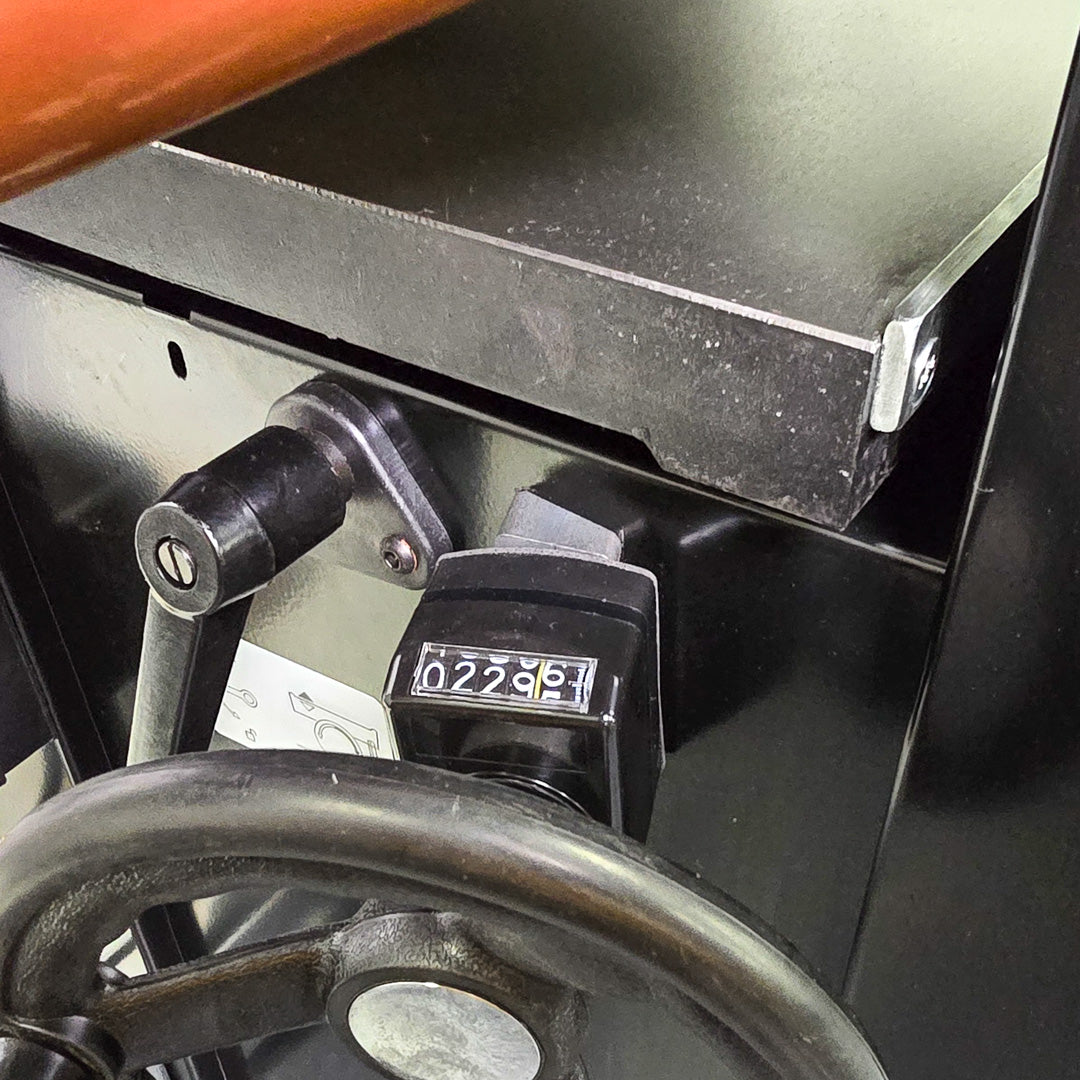

  • Winding thicknessing adjustment with metric depth of cut gauge

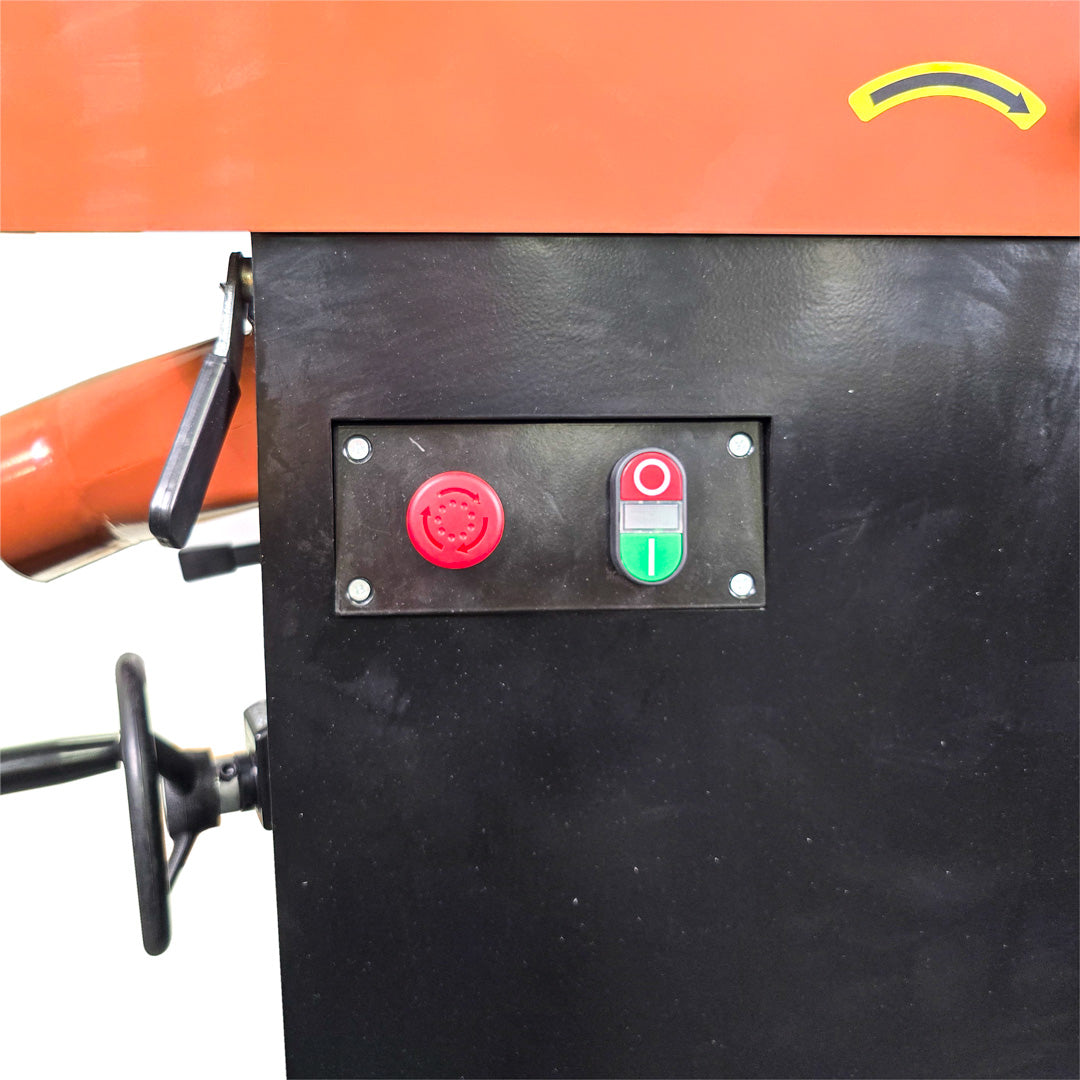

  • Mechanical on / off switch
  • Feed rollers on / off lever
  • 102mm dust port

Please note – this machine has a 15A Plug

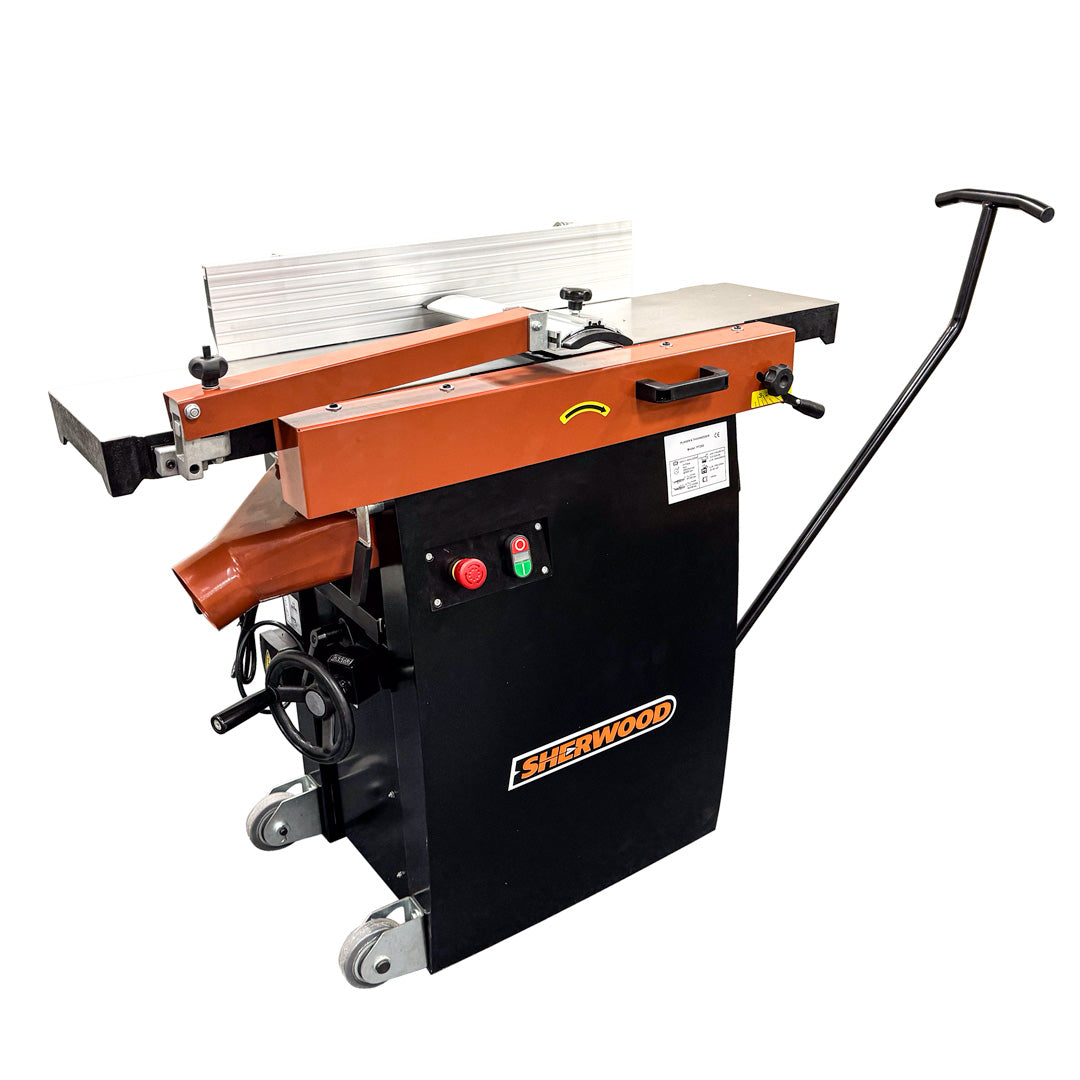

Compact and mobile

The Sherwood 10in Lift-Up Combination Planer is where the Sherwood combination machine range begins. This machine offers all the features of larger combination machines yet remains conveniently compact and affordable. It features a built-in mobility kit making it the easiest combo to move around. The Sherwood 10in combination is the perfect for enthusiasts and professionals who need to thickness and plane wood, yet also need a compact and mobile machine.

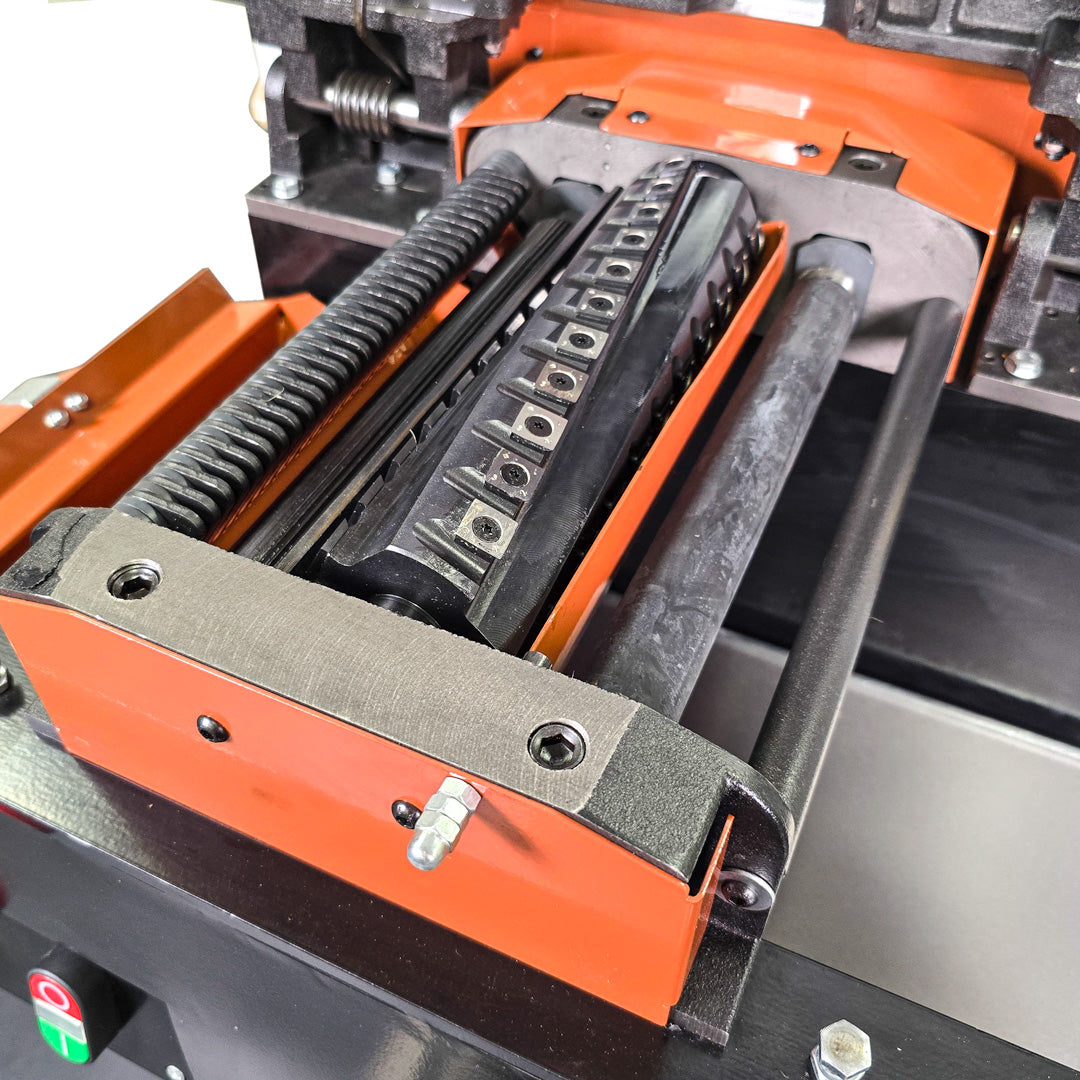

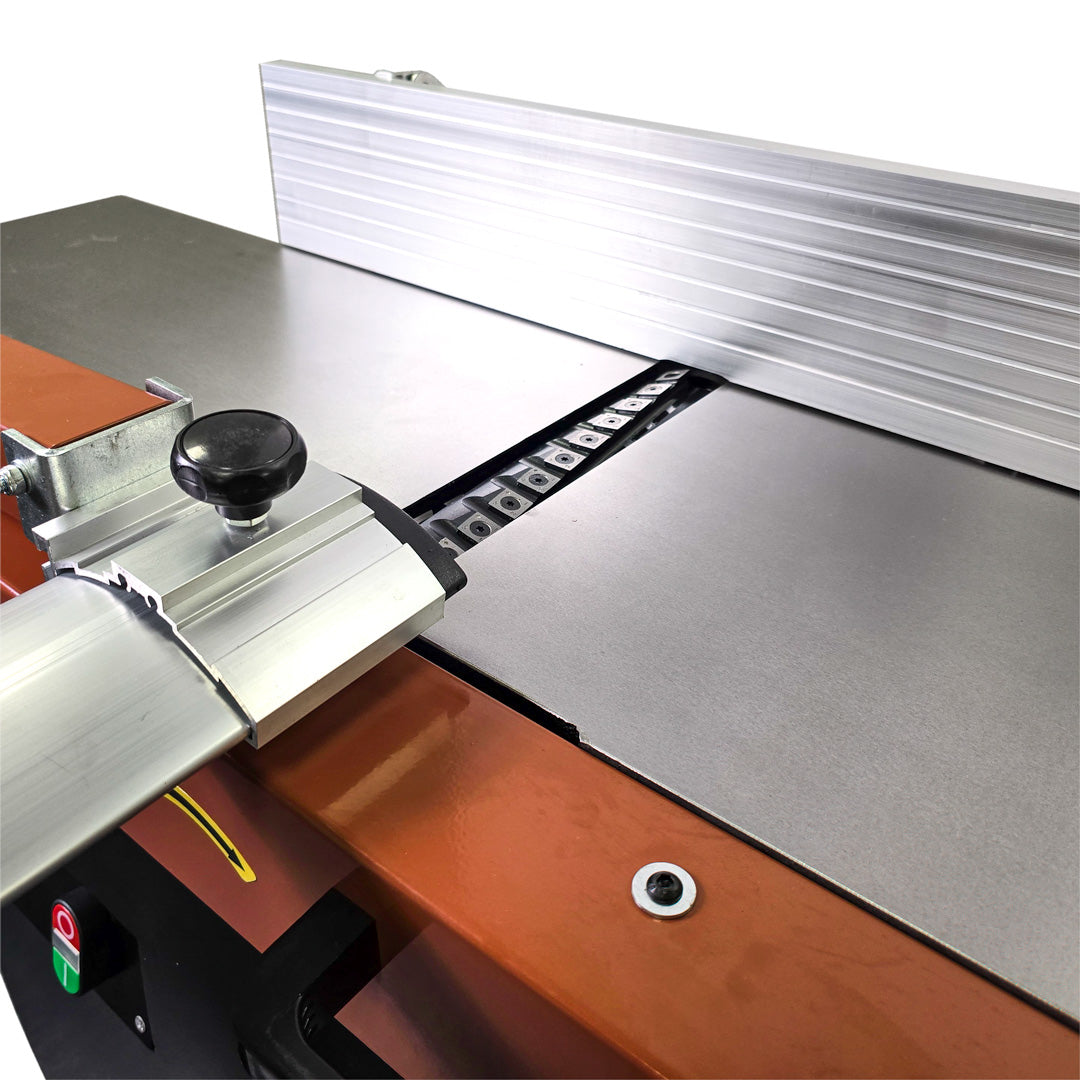

Helical Cutterhead

This Sherwood 10in Lift-Up Combination Planer features a helical cutterhead with tungsten carbide inserts. Helical cutterheads incorporate square carbide cutters arranged into rows that wrap around the cutter block. Helical cutterheads are long lasting, easy to maintain and are perfect for machining difficult and highly figured timbers with little or no tear out.  The additional advantage of helical cutterheads is that they operate quietly when compared to the chopping action of a traditional straight blade cutterheads. Work away in your home workshop without upsetting the neighbours. Perfect for shared spaces such as a club or community workshop.

Carbide Insert Knives

If you haven’t heard already, carbide cutters are the way to go. Each insert is 15mm square and sharpened on all four edges. Each insert fixes directly to the indexed helical head via a steel grub screw. The edge of each cutter is slightly radiused so to ease the shearing cutting action. When requiring replacement, due to the indexed head, it is very easy to release the carbide insert and turn to expose a brand-new cutting edge. Each insert has 4 sharp edges - no sharpening required!

Easy mode changeover

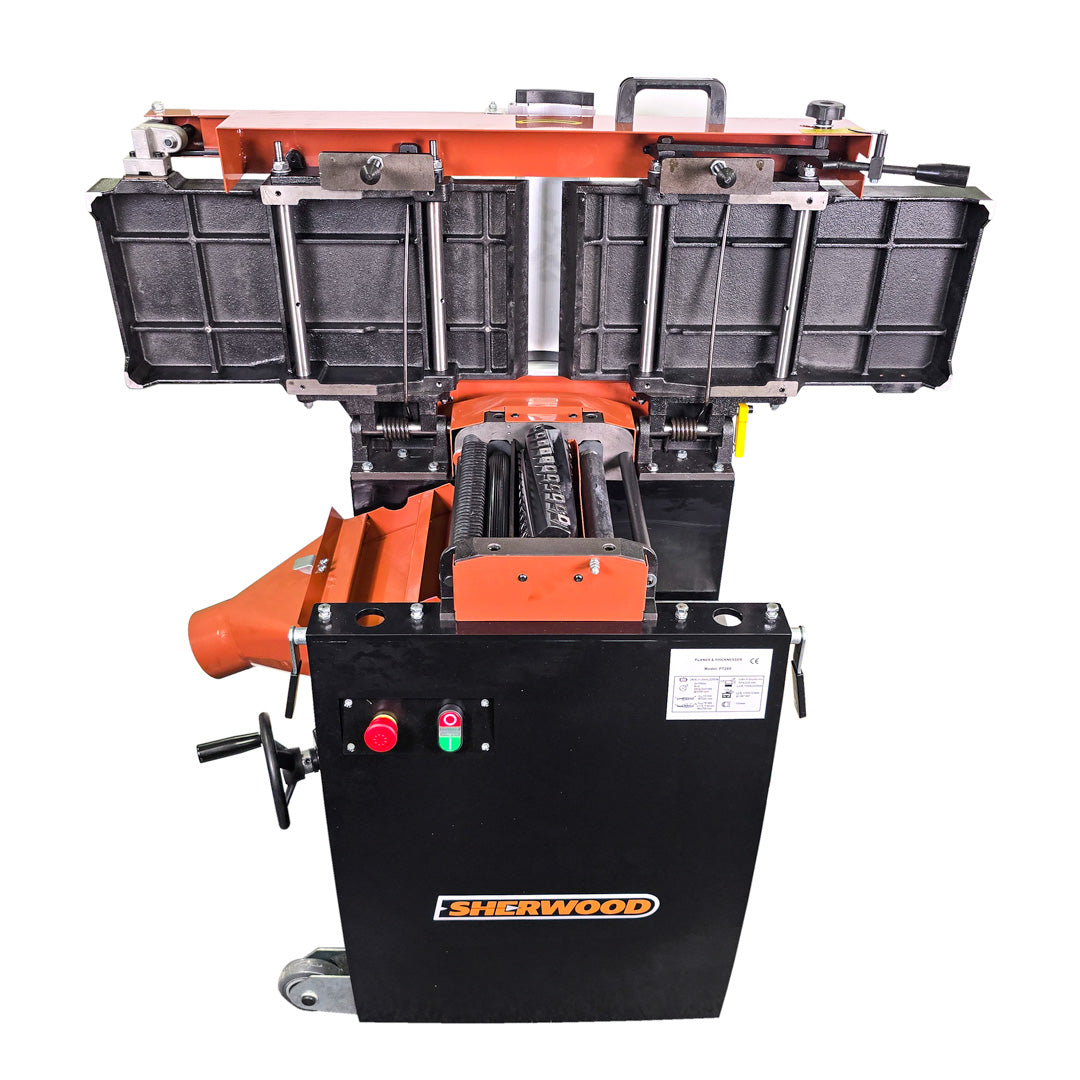

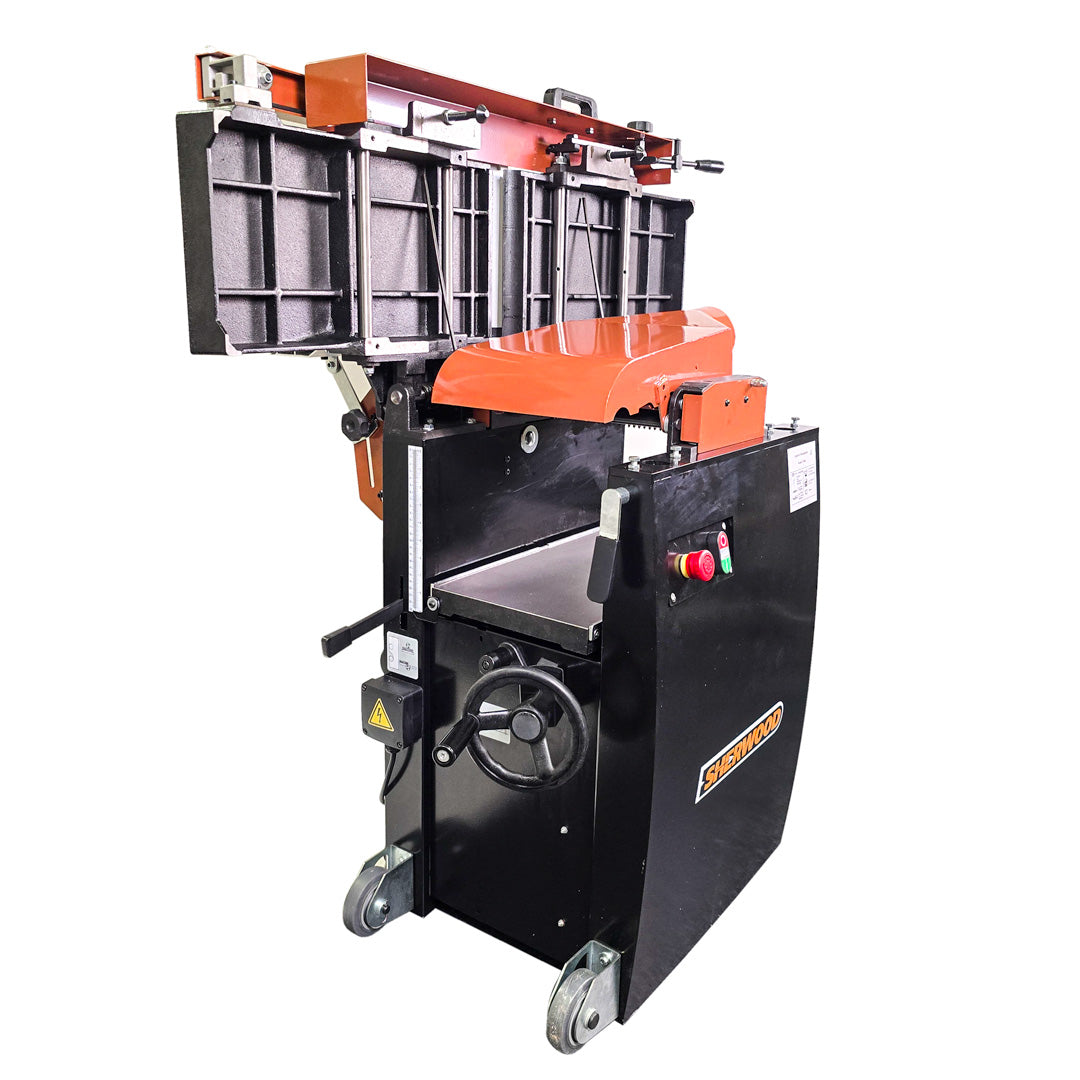

The Sherwood 10in Lift-Up Combination Planer is very easy and quick to change from planer mode to thicknesser mode. Release the two worktable locking handles. Lift the one-piece worktable. Lower the thicknessing worktable and flip the dust port into position, and you're ready to go! And because the worktable is made as one piece, no additional alignment or tuning is required.

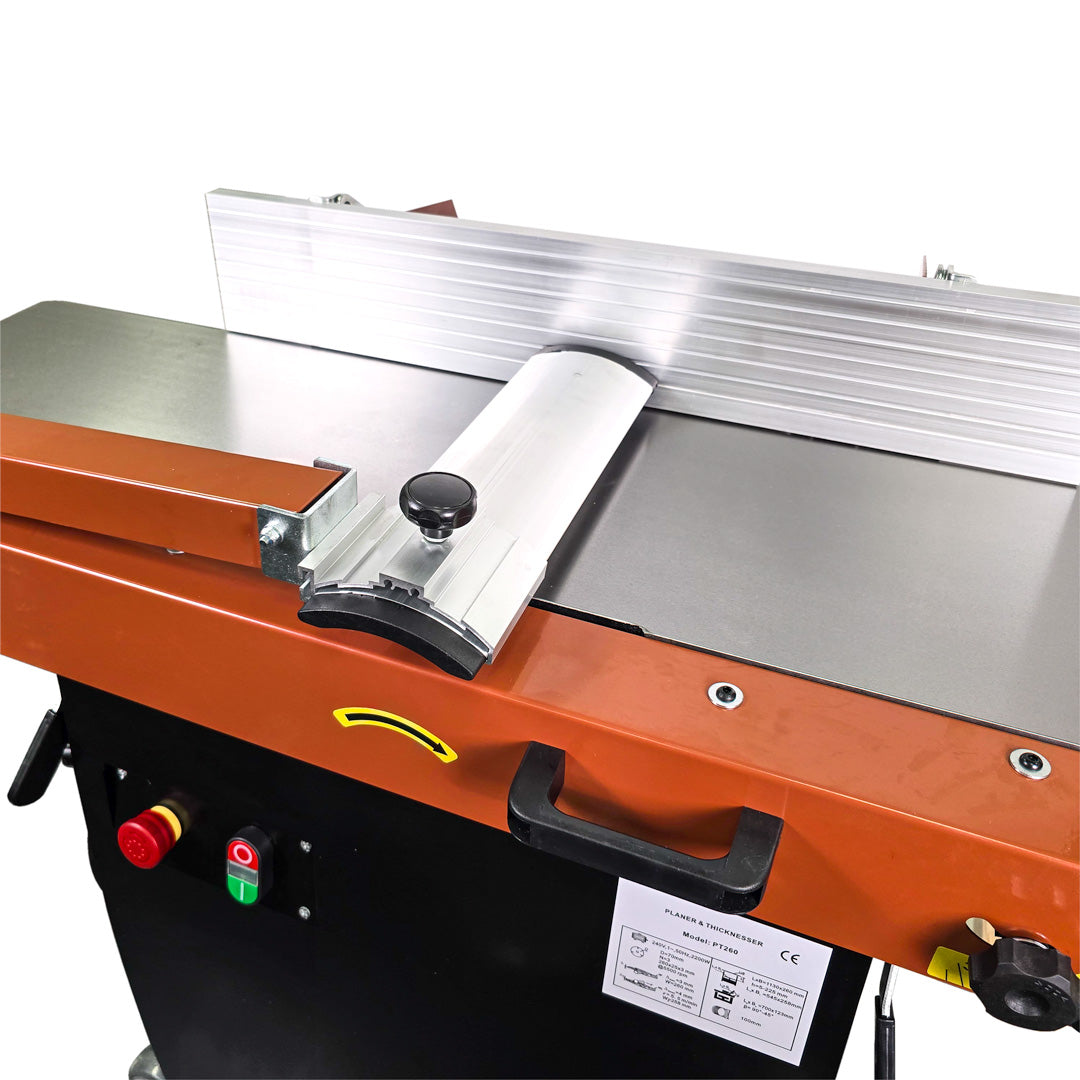

Aluminium fence and European blade guard

The aluminium fence is long, tall and hard fixes in position via two locking handles. The European styled blade guard is easily adjusted and provides you with maximum protection when using such a wide blade machine. Plane with confidence on your Sherwood 10in combo.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other combination planer / thicknesser in its class is more supported than the Sherwood 10in Lift-Up Combination Machine with Helical Carbide Cutter Head.

Specifications

Brand

Sherwood

Model SKU’s

PTNSC-260

Country of origin

China

Warranty

5 years limited

Motor

2200W

Note – this machine has a 15A plug

Cutter head

Helical cutter head – 44 individual tungsten carbide inserts

Cutterhead speed

5500rpm

Maximum depth of cut

3mm

Minimum stock thickness

6mm

Thicknessing capacity

258 x 225mm

Thicknessing table length

545mm

Rate of feed

5.5m/min

Planing / jointing worktable dimensions

260 x 1125mm

Planing worktable height

830mm

Maximum planing / jointing width

260mm

Fence dimensions

120 x 700mm

Fence tilt adjustment

45 – 90 degrees

Dust port

1 x 102mm (4in)
