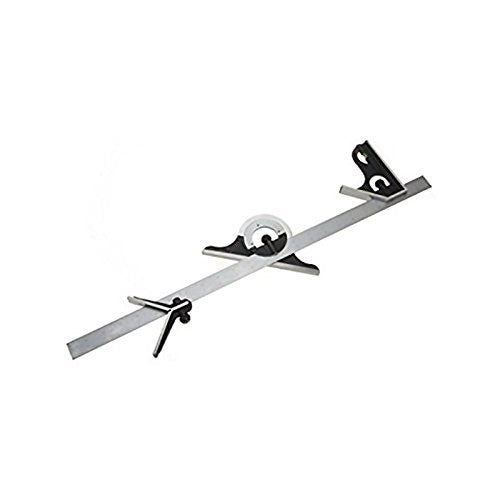

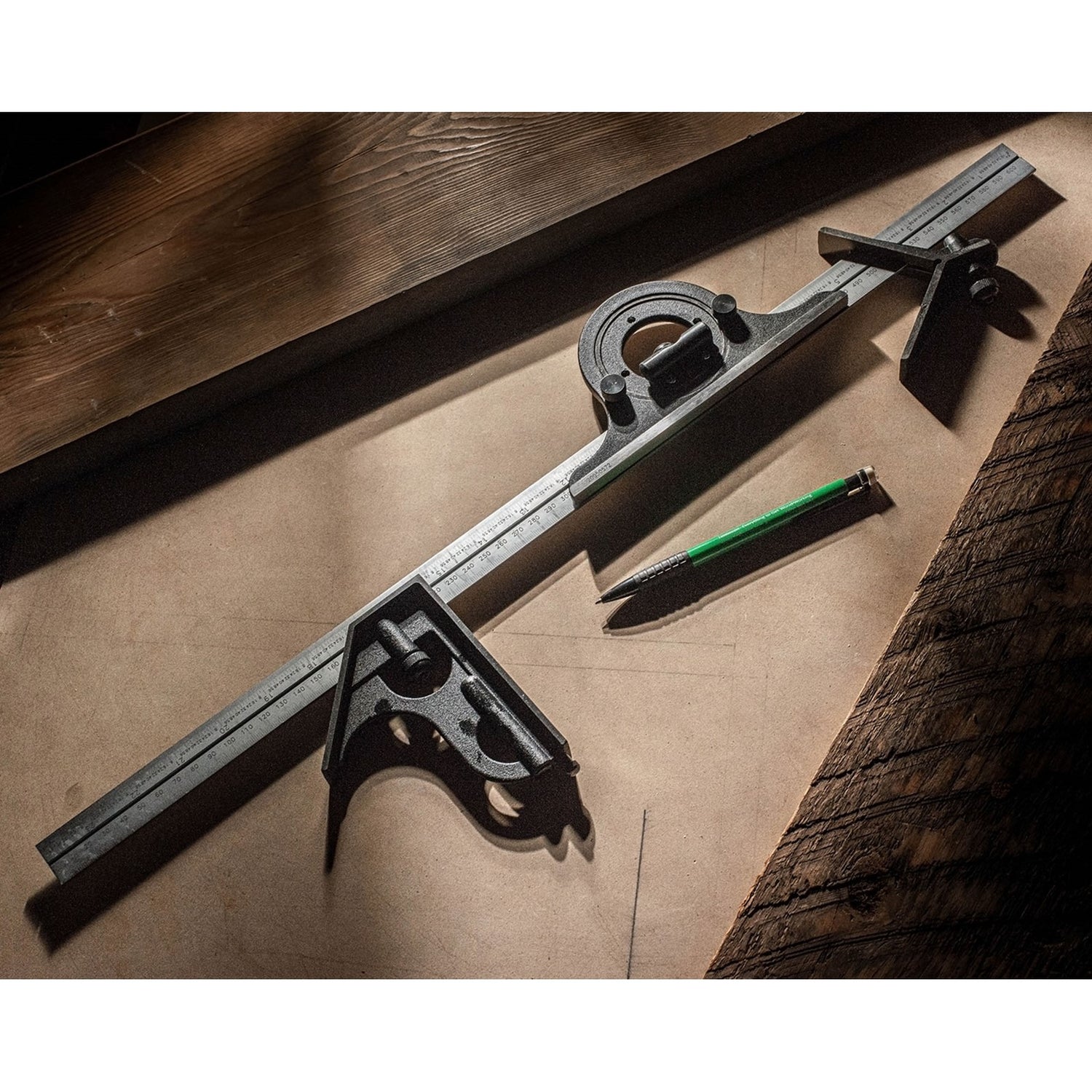

iGaging 600mm Combination Square, Centre Finder & Protractor - Metric & Imperial

Enjoy the accuracy and greater efficiency on multiple applications with this 600mm (24in) precision combination square, centre head and protractor.

Use it as a 45 miter, depth gauge, level, plumb, and precision tool. Made of stainless steel with a satin chrome finish blade. Easy-to-read graduations in inch/metric; 1mm, 64th, 32nd, 1/2mm. Features a level vial and a hardened Scribe tool. Includes storage case. Technical details: hardened steel construction. Satin chrome finish blade. Square/miter head features a level vial and a hardened Scribe tool.

Features

• Square head and center heads are hardened and precision ground for accuracy.
• Chrome Plated Combination Blades are the best protection from scratching.
• Blades are chrome plated and etched.
• Precision lapping on all measuring surfaces.

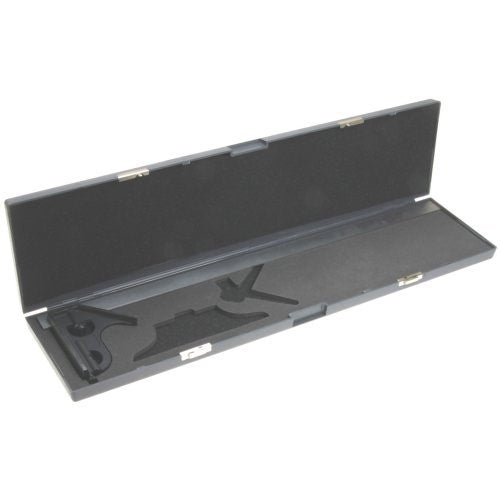

• Supplied with Protective Fitted Case

Gradations & Sureness

• E/M: inch/metric 1mm, 64th, 32nd, 1/2mm
• Blade straightness/Parallelism 0.0006"/12"
• End Sureness +/- 0.03
• Squarehead Sureness 0.005in/12in. miter
• Sureness: 0.005in/12in
