Incra Mitre Slide Steel for 19mm 3/4in Mitre Tracks 18in

The Incra Mitre Slider is perfect for demanding jigs.

Please note: Price is for one 18" (457mm) Mitre Slide only.

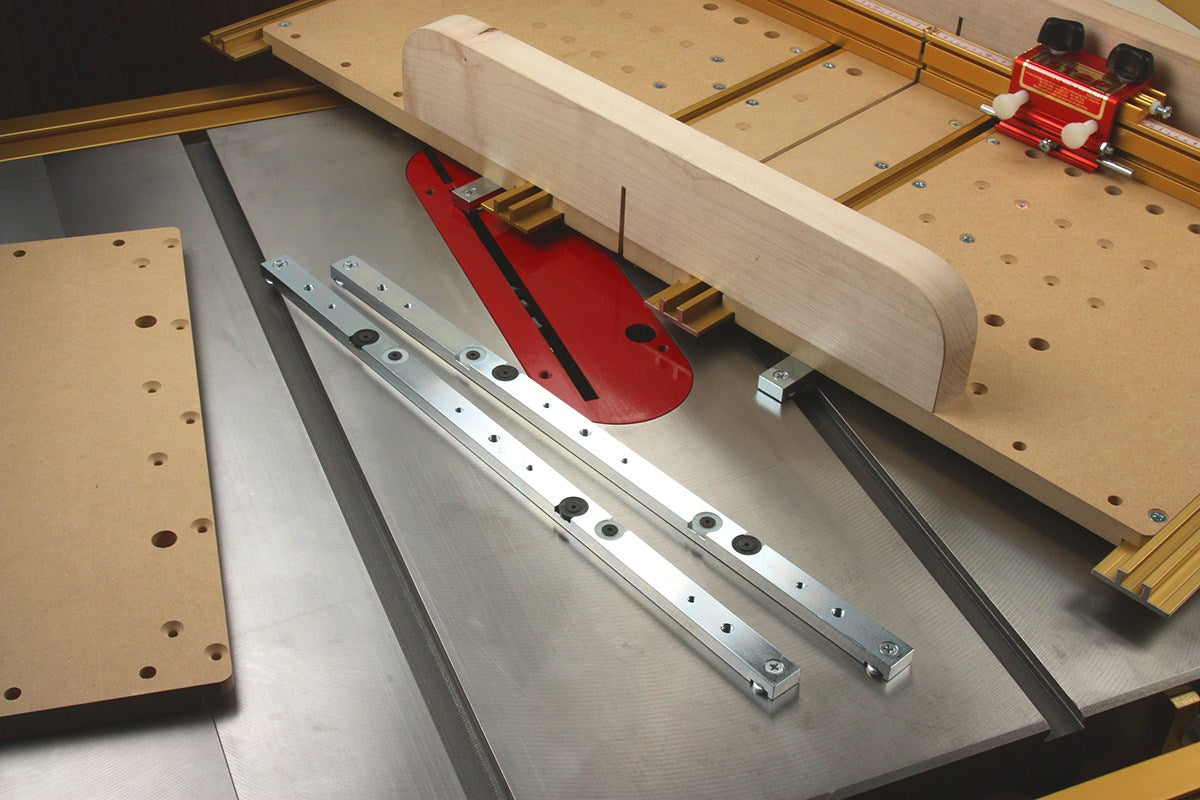

When you need to build super-accurate sliding jigs and fixtures, the  Incra Mitre Slider SE combines the time savings of the original Aluminium Mitre Slider with the unique performance and feel of the adjustable Glidelock Mitre Bar used on Incra Mitre Gauges.

These beefy mitre slot runners are perfect for the most demanding jig applications!

The heavy steel construction is more rigid than any wooden or plastic runners, and they're not susceptible to changes in humidity or temperature. Miter Slider SE bars are drilled and tapped with two separate bolt patterns: (4) #10-24 holes attach the bars quickly to your own custom jigs.

These #10 holes are spaced identically to the original Incra Mitre Slider, so the Miter Slider SE is a direct, bolt-on upgrade to jigs and fixtures you may have already constructed. There's also a second set of (3) 1/4"-20 holes evenly spaced along the length to accept knobs and other fasteners commonly used when building jigs and fixtures.

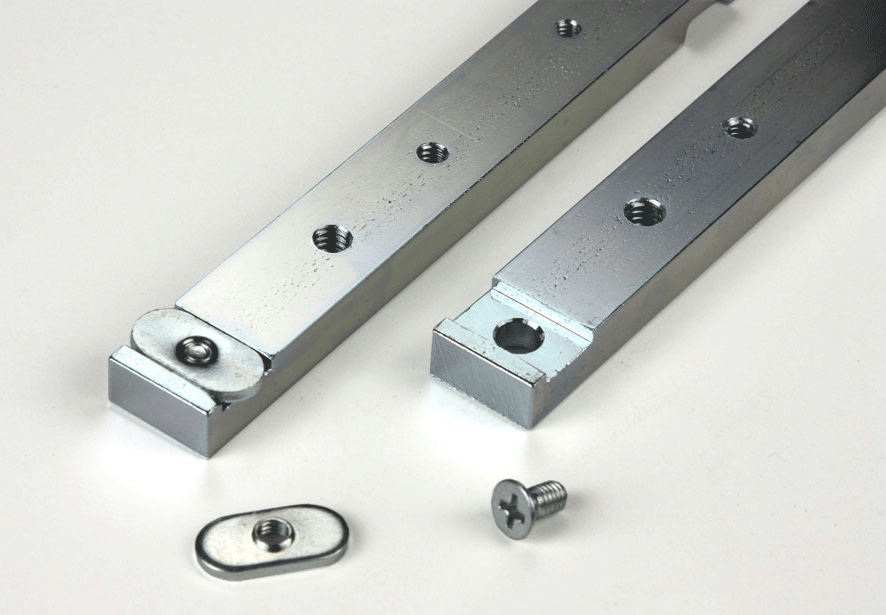

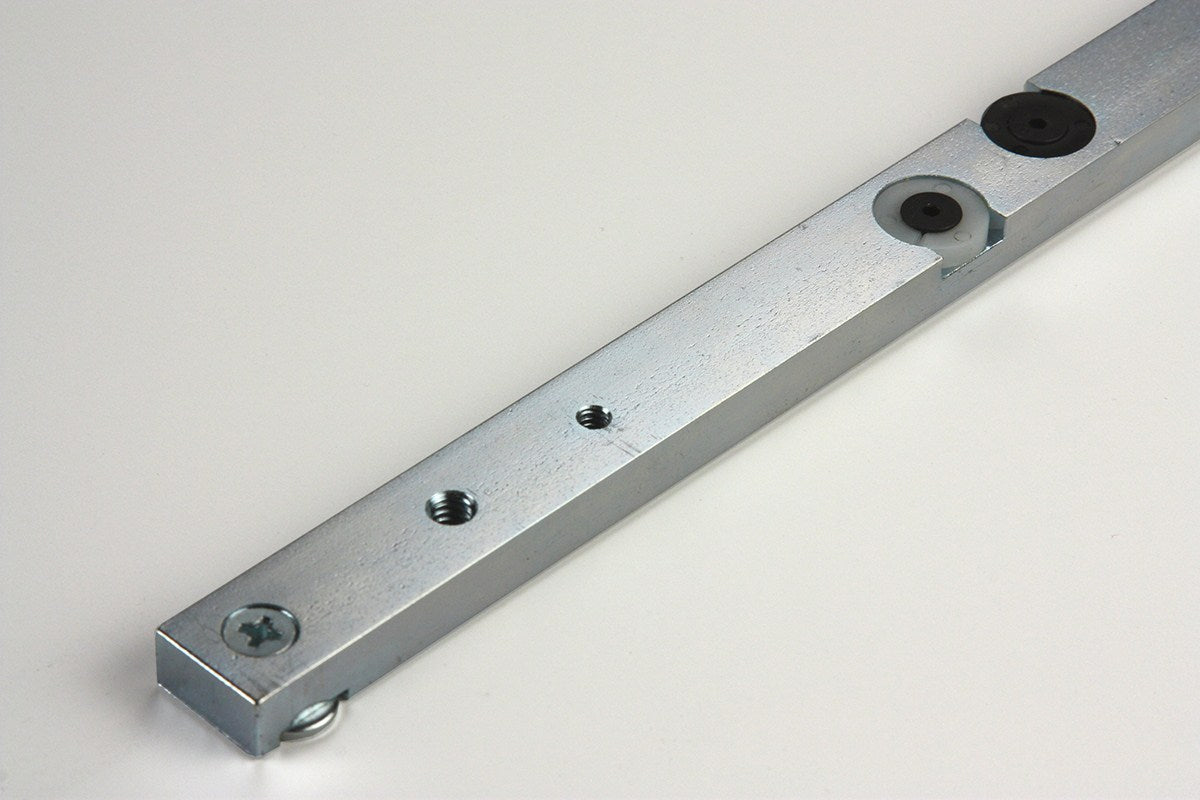

Long-wearing Nylon Glide Lock adjusting discs conveniently adjust from the top and provide a precise fit in the mitre slot of most table saws, router tables, and band saws, and the discs also give the bars a smooth, low-friction travel.

The 18" (457mm) bar has two pairs of discs. Includes removable T-Slot retaining clips for both ends of the bar for superior stability of larger jigs.

Incra Mitre Slider Compatibility

The Miter Slider SE will fit square-sided mitre slots approximately 3/4" wide, 3/8" deep, and with or without a 15/16"-wide T-slot at the bottom. The Glide Lock adjustment will accommodate slots measuring 0.740" to 0.765" in actual width.
The Miter Slider SE is not recommended for stationary jigs that must be locked into position within a mitre slot. The standard Incra Aluminium Mitre Slider is the best choice for these applications.
