Torquata Bottom Cut Straight Plunge Router Bits 1/2in shank
Sale ends in:
Torquata Bottom Cut Straight Plunge Router Bits 1/2in shank - 6mm ø x 25mm Cutting Height is backordered and will ship as soon as it is back in stock.
Request Further Information
Torquata Bottom Cut Straight Plunge Router Bits 1/2in shank
Eligible for FREE Shipping*
Torquata Bottom Cut Straight Plunge Router Bits 1/2in shank
Please note. The cutters on both sides do not overlap. This is to allow of clean waste removal when plunging. This means that in a router this will not be an issue. However this may be a problem for CNCs and due to this we do not recommend these bits for CNCs. Please use a Torquata spiral bit for CNC plunge cuts.
These bits offer that improved performance for only a small cost.
Bits 16.0mm diameter and above have a downshear angle for improved chip injection and smooth cut finish.
Straight bits are the most versatile bits and can be used for trenching, grooving, trimming and rebating either hand-held with a guide or in a router table. All Torquata straight bits are twin-fluted for a better-finished edge and long life.
| Product Code | Cutting Diameter Metric | Cutting Diameter Imp'l | Cutting Height Metric | Cutting Height Imp'l | Overall Length |
|---|---|---|---|---|---|
| SE-060-H | 6.0 | 15/64in | 25.0 | N/A | 67.0 |

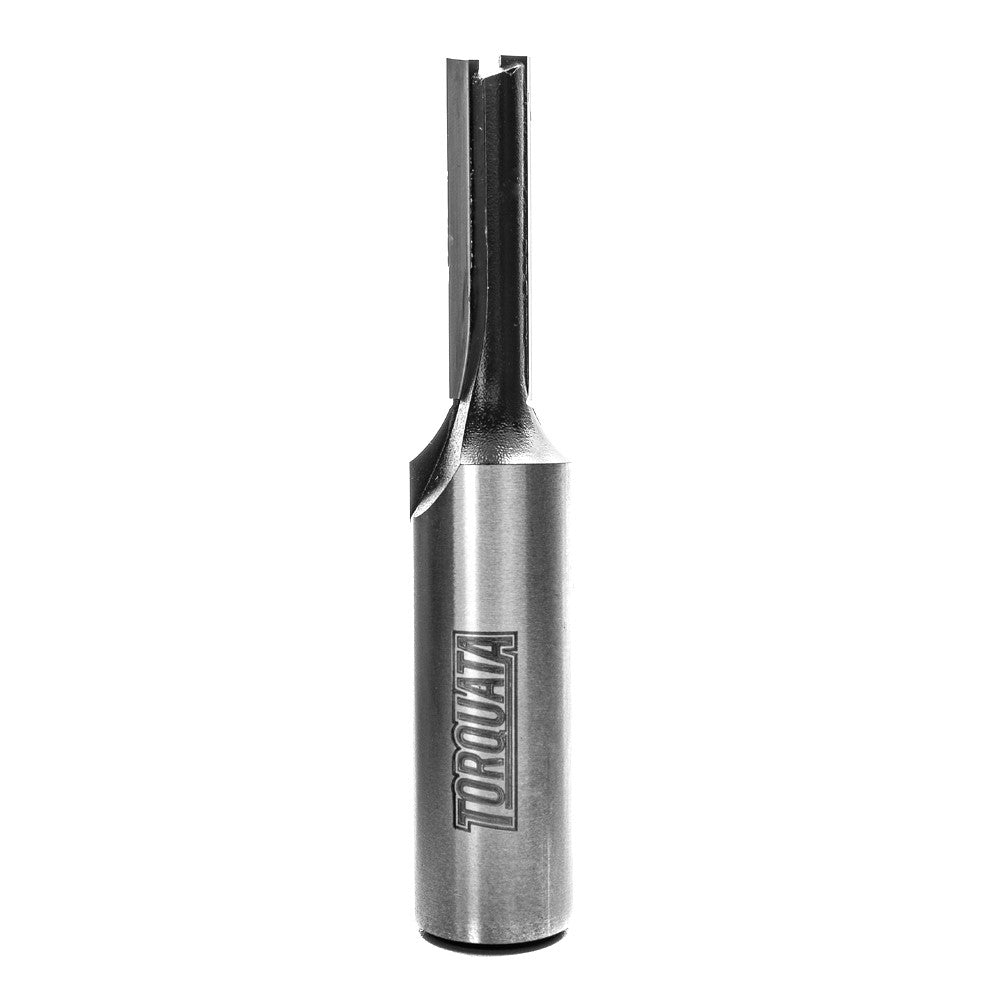

| SE-064-H | 6.4 | 1/4in | 25.4 | 1in | 67.9 |
| SE-079-H | 7.9 | 5/16in | 25.4 | 1in | 67.9 |
| SE-095-H | 9.5 | 3/8in | 25.4 | 1in | 67.9 |
| SE-100-H | 10.0 | N/A | 32.0 | N/A | 73.0 |

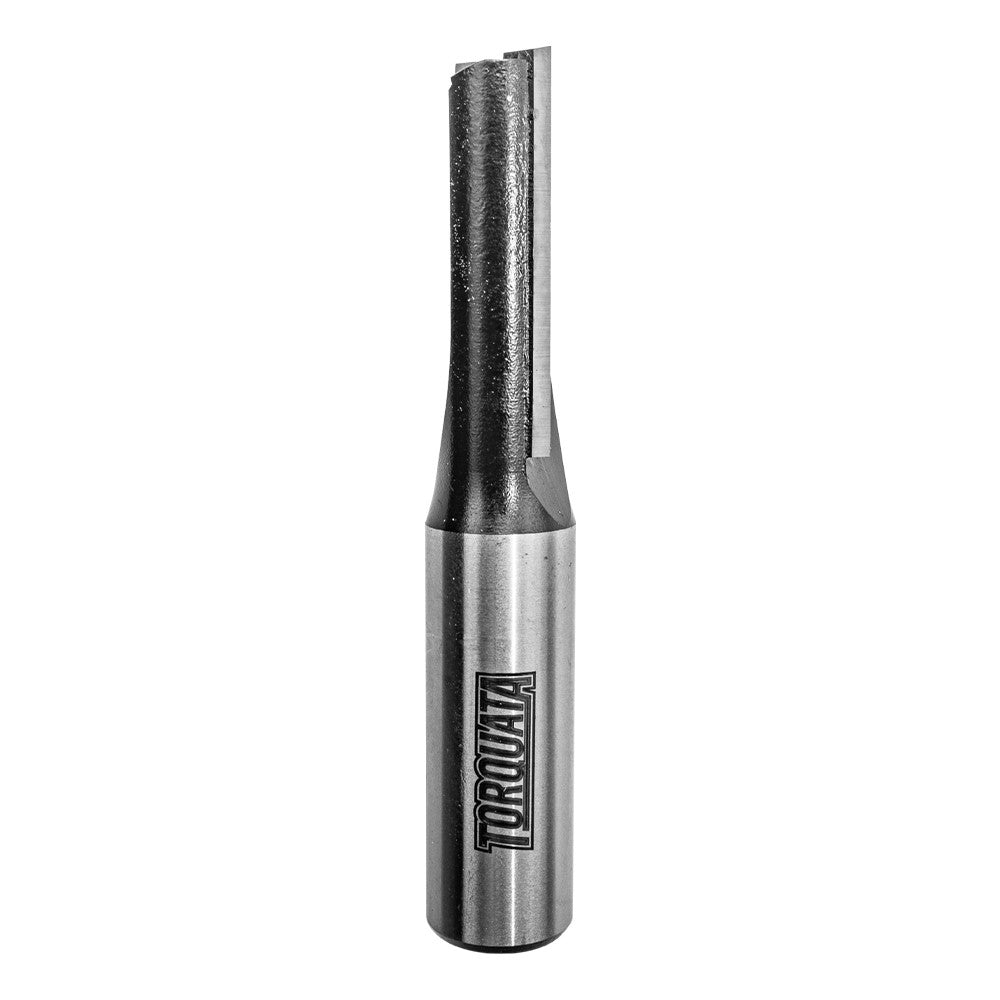

| SE-120-H | 12.0 | N/A | 32.0 | N/A | 73.0 |
| SE-127-H | 12.7 | 1/2in | 31.8 | 1 1/4in | 73.5 |
| SE-127-XH | 12.7 | 1/2in | 50.8 | 2in | 88.9 |
| SE-130-XH | 13.0 | N/A | 50.0 | N/A | 92.7 |
| SE-143-H | 14.3 | 9/16in | 31.8 | 1 1/4in | 73.0 |
| SE-160-H | 16.0 | N/A | 32.0 | N/A | 73.0 |

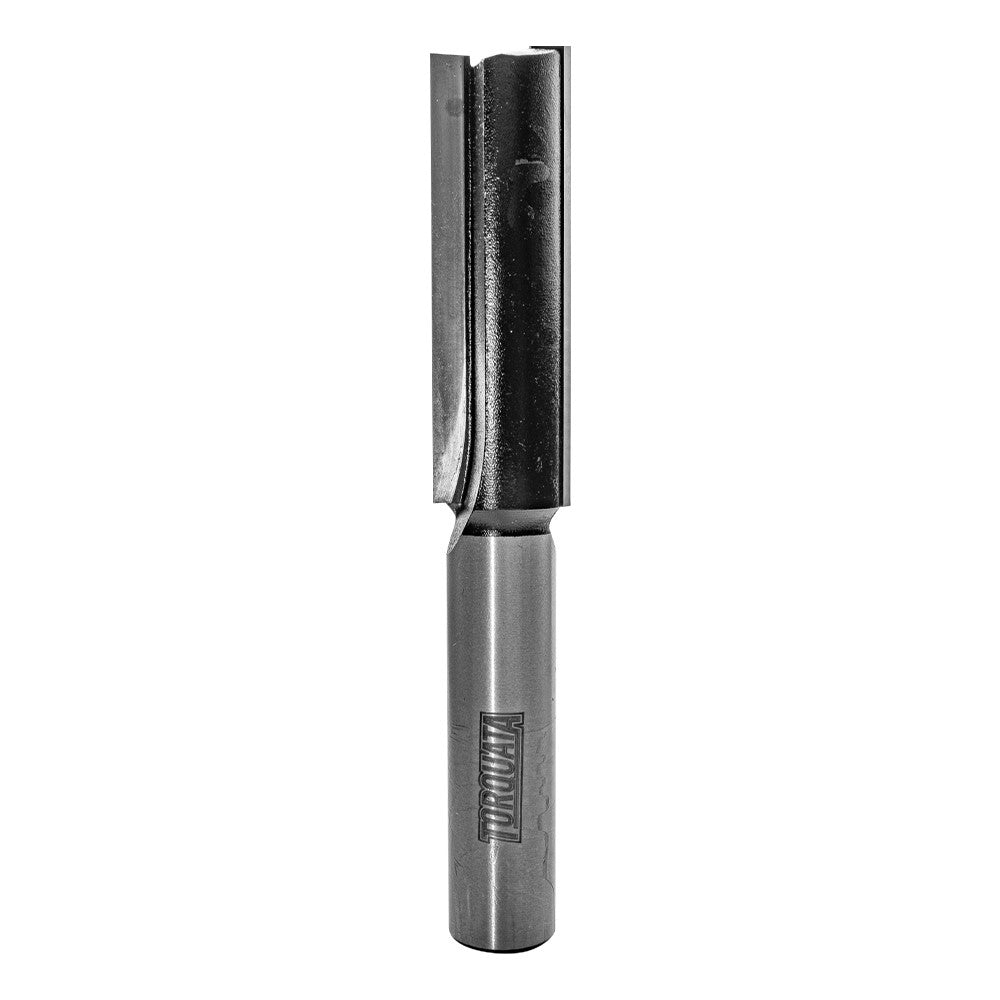

| SE-160-XH | 16.0 | N/A | 51 | N/A | 67 |
| SE-170-H | 17.0 | N/A | 32.0 | N/A | 73.0 |

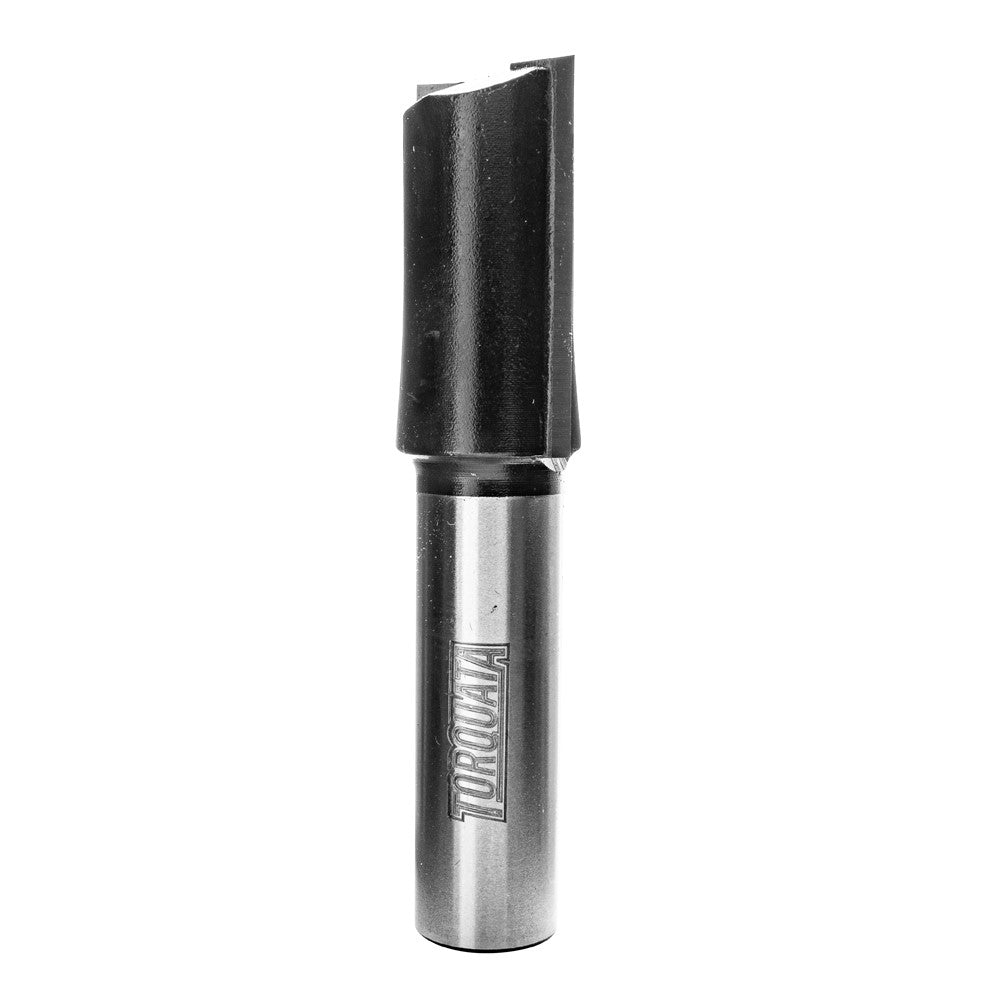

| SE-180-H | 18.0 | N/A | 32.0 | N/A | 73.0 |
| SE-180-XH | 18.0 | N/A | 51.0 | N/A | 89.0 |
| SE-190-H | 19.0 | 3/4in | 31.8 | 1 1/4in | 73.5 |
| SE-250-H | 25.0 | N/A | 32.0 | N/A | 73.0 |

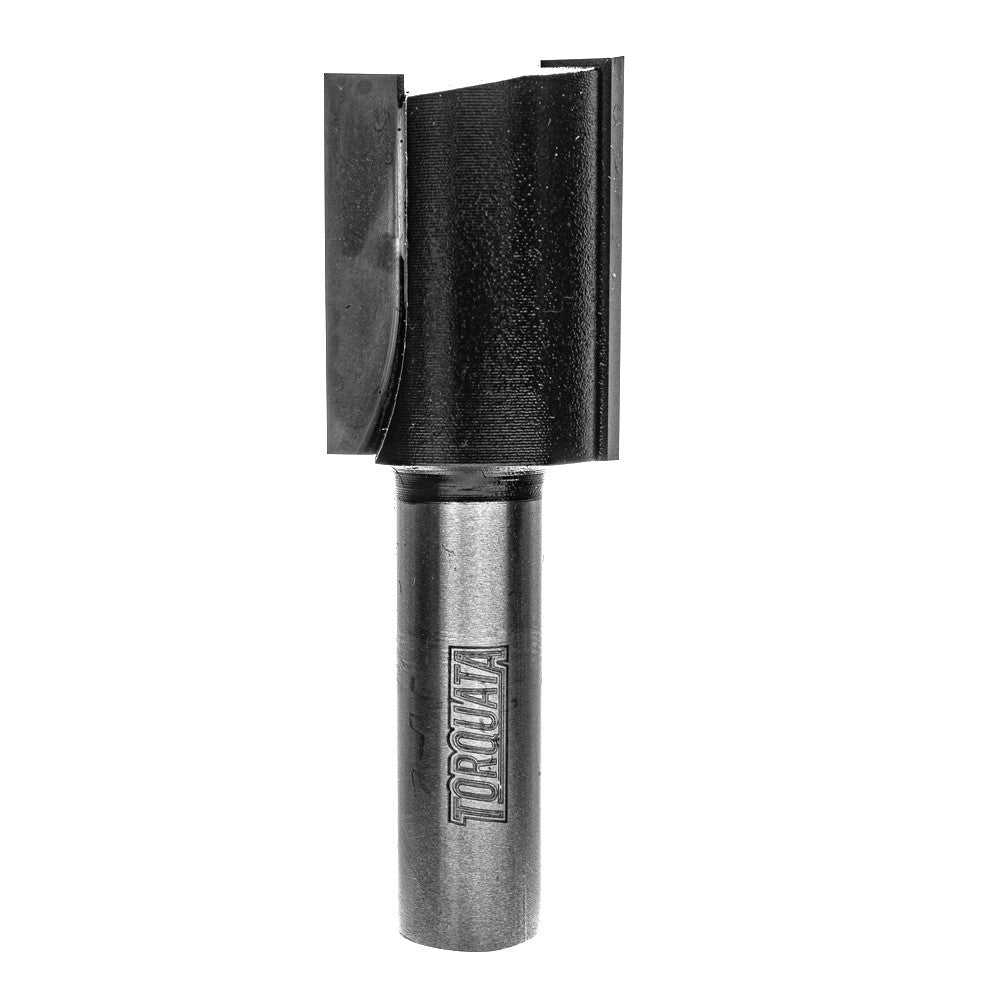

| SE-254-H | 25.4 | 1in | 31.8 | 1 1/4in | 73.0 |
