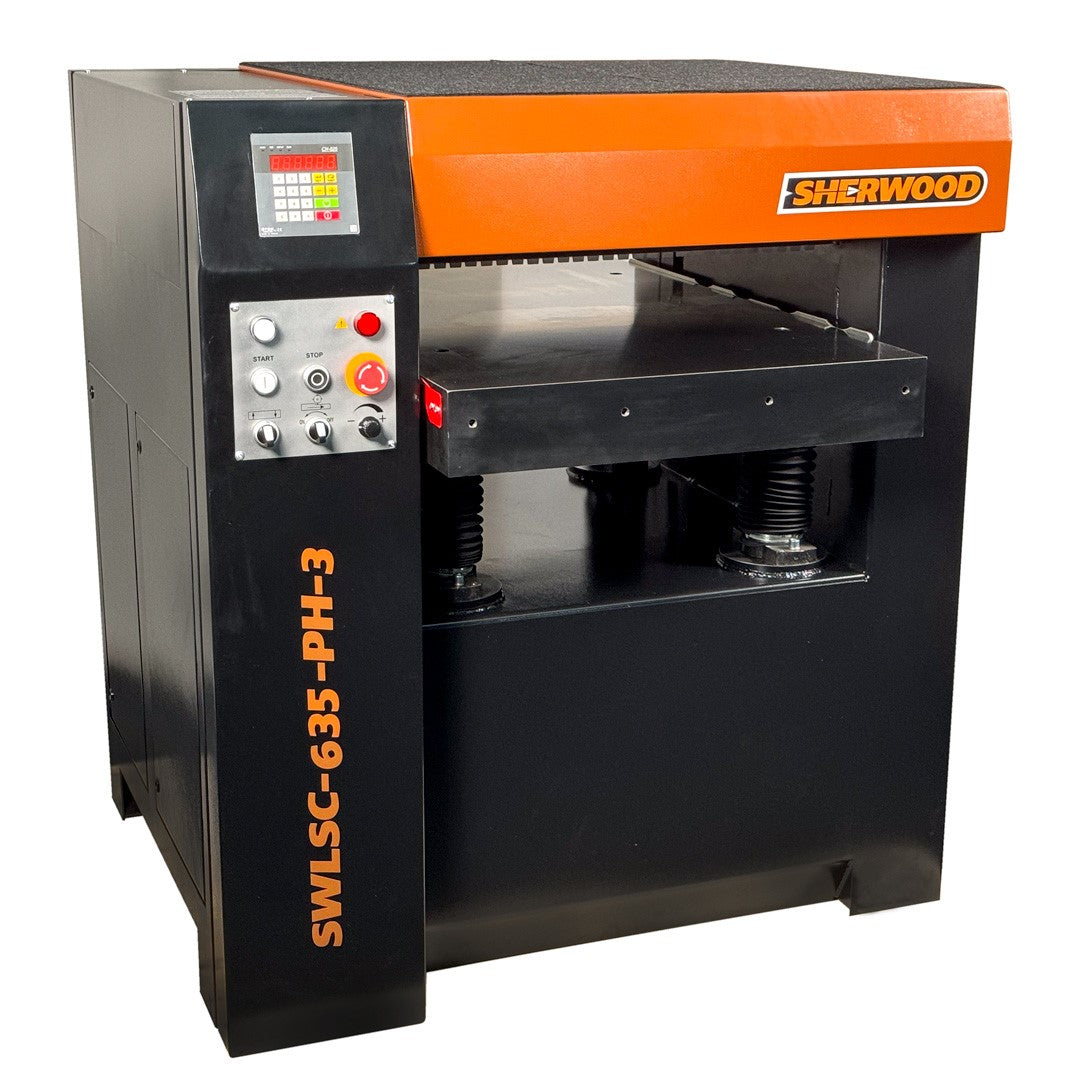

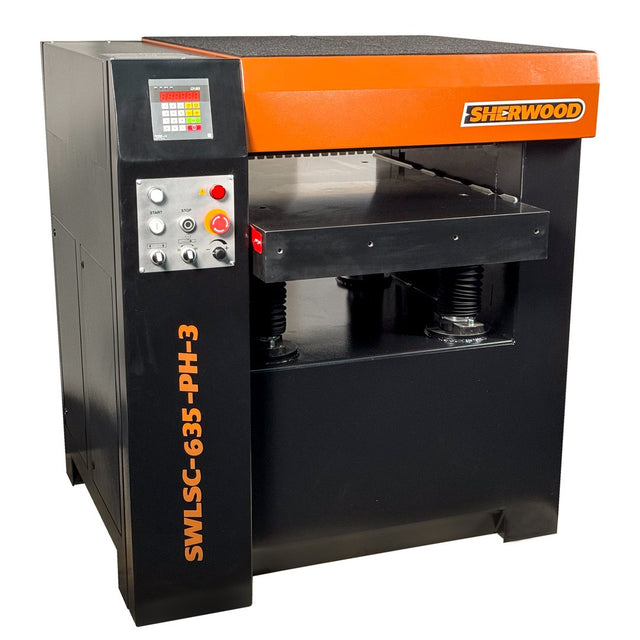

Sherwood 25in Euro Style Thicknesser 630mm Three Phase 10HP with Helical Cutterhead

Sherwood’s 25in Euro Style Thicknesser looks great – but it’s what’s under the hood that counts. Discover a high-spec machining solution that is optimised for continuous duty in light industrial environments.

The Sherwood 25in Euro Style Thicknesser is designed for professional woodworking. Its powerful 10HP 3-Phase motor tackles even the toughest Australian hardwoods and wide boards with ease, providing precise depth adjustment and variable feed speed for unmatched accuracy and versatility. The helical cutterhead ensures superior cut quality and durability, while advanced dust management and easy cutterhead access enhance efficiency and safety. This machine is a reliable choice for demanding woodworking tasks.

Wide Planing Capacity

The Sherwood 25in Euro Style Thicknesser can handle boards and slabs up to 630mm in width. The feed location of narrower boards can be varied from left to right across the cutterhead, distributing wear evenly across the 104 tungsten carbide inserts, reducing downtime and boosting productivity.

Powerful Motor

Equipped with a 10HP 3-Phase S1 induction motor, the Sherwood 25in Euro Style Thicknesser effortlessly handles even the toughest Australian hardwoods. With this much power available, it can deliver a maximum depth of cut of 8mm, allowing rapid progress towards your final stock dimension.

Precision Depth Adjustment

Thicknessing accuracy to 0.1mm is standard. Enter the desired height into the digital control and the motorised bed moves automatically to that setting, with automatic backlash compensation ensuring perfect precision every time.

Electronic Variable Speed Feed Control

The Sherwood 25in Euro Style Thicknesser offers infinitely variable feed rates between 4 and 16 metres per minute, allowing the operator to easily match the number of cuts per inch to the operation.

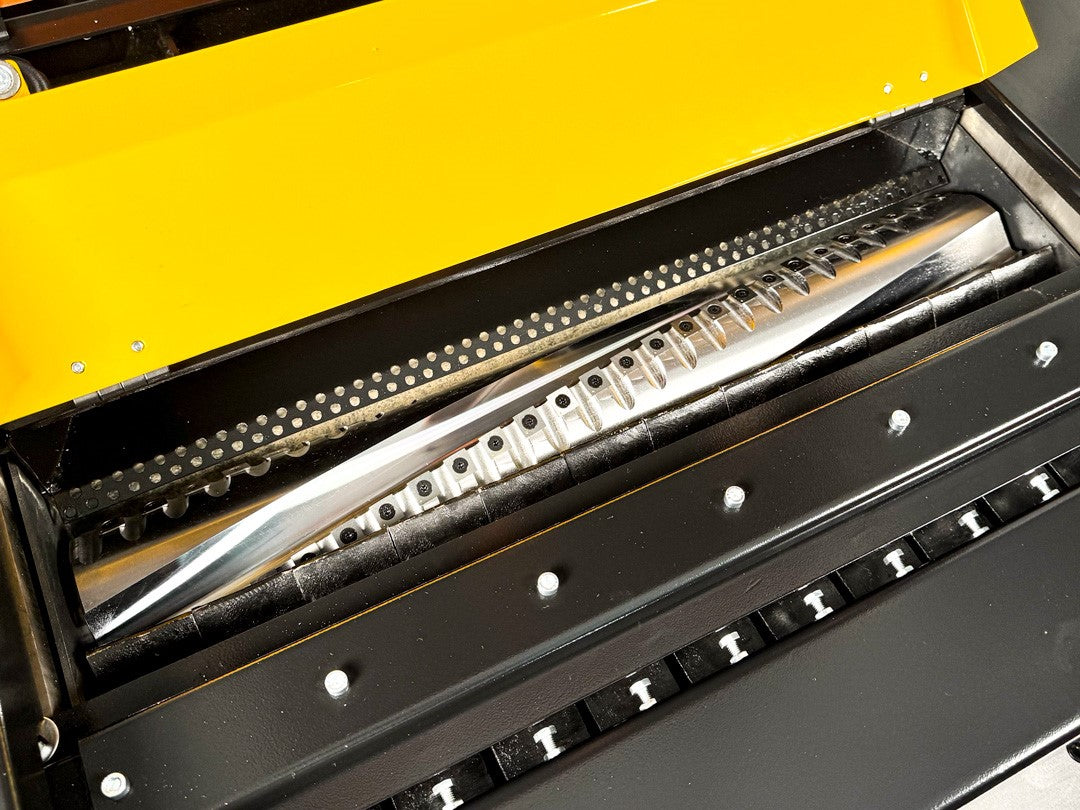

Helical Cutterhead

The helical cutterhead features 4 helical spirals of 26 four-sided tungsten carbide inserts. Each insert is lightly-radiused and oriented at a shear angle to the angle of rotation, delivering a superior cut quality and excellent edge retention.

Dust Management

The Euro-style cabinet is not just for looks. Enclosing all the moving parts inside steel panelwork directs your extractor’s airflow to exactly where it is needed, while isolating the motors and drivetrains from dust and debris.

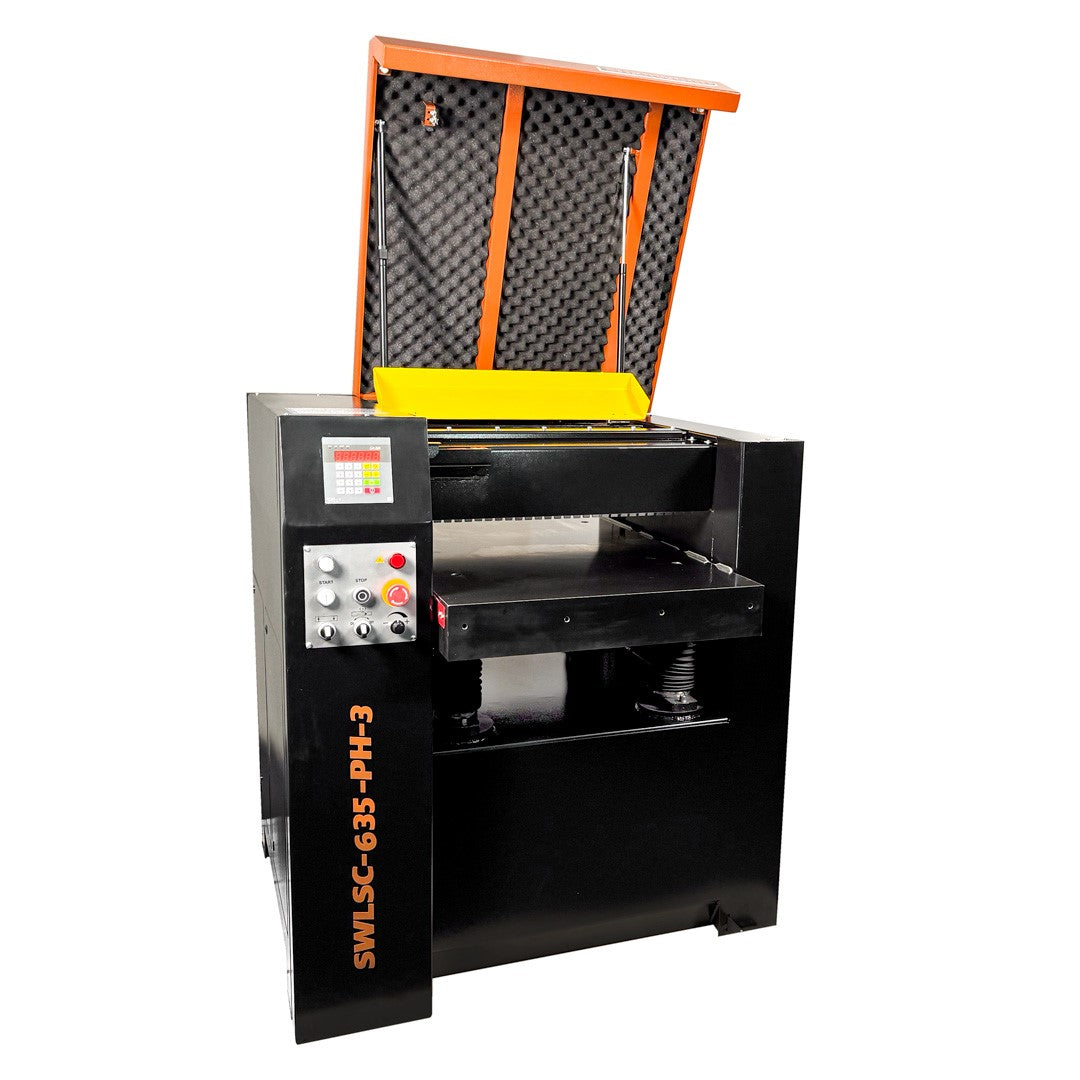

Cutterhead Access

The Sherwood 25in Euro Style Thicknesser has a hinged lid providing easy access to the cutterhead for insert rotation or changes. A cutoff switch ensures that the machine cannot be started with the lid open.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other thicknesser in its class is more supported than the Sherwood 25in Euro Style Thicknesser.

Powerful Motor

The cutterhead on the Sherwood 25in Euro Style Thicknesser is powered by a 10HP 3-Phase S1 induction motor. The motorised table lift and feed rollers are powered by separate motors, allowing all 10HP to be directed into the cutterhead.

Helical Head

Helical cutterheads deliver a very efficient and smooth cut, requiring less horsepower, making smaller chips and operating with far less noise. You will only need to replace the inserts when all four edges are dull, giving you much more life than Straight HSS knives.

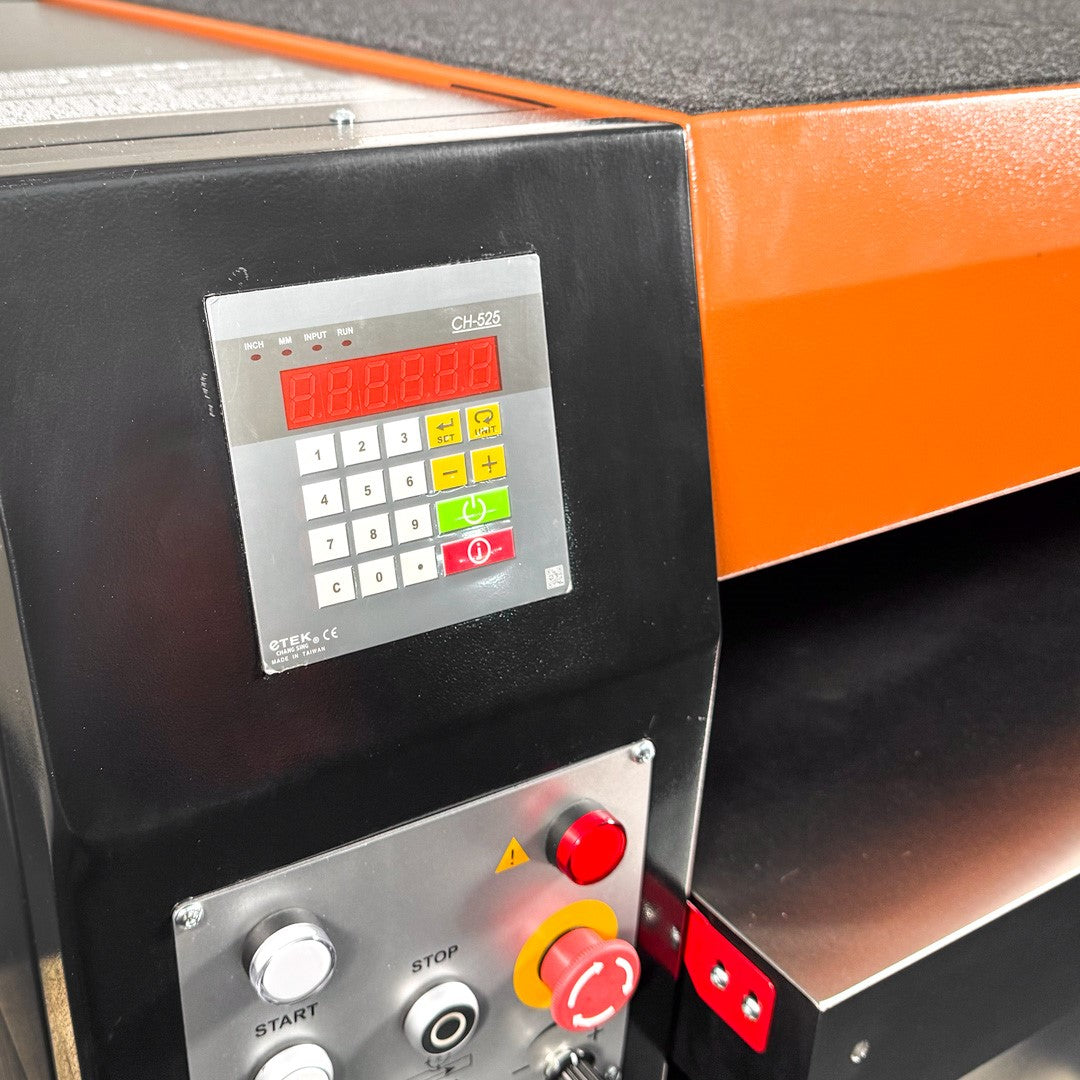

Electronic Height Adjustment

The bed height can be manually set by holding the ‘raise’ and ‘lower’ buttons, or it can be pre-set. Enter the desired height into the digital control and the motorised bed moves automatically to that setting.

0.1mm Accuracy with Anti-Backlash Compensation

Automatic Backlash Compensation delivers table height accuracy to 0.1mm every time.

Variable Feed Speed

The feed rollers in the Sherwood 25in Euro Style Thicknesser are powered by their own independent motor, allowing electronic variable speed control over feed rates.

Rapid Stock Removal

A 10HP cutterhead motor driving a helical cutterhead, coupled with EVS feed rate, delivers deep potential cut depths of up to 8mm per pass. Full-width anti-kickback fingers and a serrated infeed roller ensure that stock is securely moved through the machine even at high removal rates.
