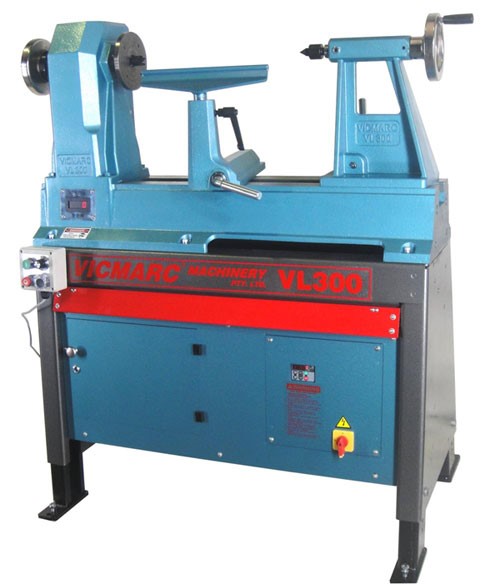

Vicmarc VL300S Wood Lathe with Short Adjustable Stand Mount 3HP EVS Made in Australia
Sale ends in:
Vicmarc VL300S Wood Lathe with Short Adjustable Stand Mount 3HP EVS Made in Australia is backordered and will ship as soon as it is back in stock.
Request Further Information
Vicmarc VL300S Wood Lathe with Short Adjustable Stand Mount 3HP EVS Made in Australia
Price excludes shipping. Please contact us for shipping charge.
The VL300 Short Adjustable Stand Mount EVS (Electronic Variable Speed) lathe has been designed to suit most wood turners. The electronic variable speed drive gives up to 200% torque on low rpm and it comes with a powerful 2.2kw motor. The three-step pulleys provide 3 ratios 1:1 for small to medium size work; 1:1.5 for medium to large work; and 1:3 for large work.
The cast iron lathe is mounted on a 5mm thick steel plate stand, which has been designed with a 700mm wide footprint for stability and rigidity. The stand also features wood shaving discharge chute and a knee stop bar.
All VL300 lathe models accept an extension bed at either end of the bed. A 500mm or 1000mm bolt on extension bed is available and multiple extensions can be added on.
VL300 Stand Mount Lathe comes standard with: 2.2kW Motor, Forward & Reverse Switch, Electronic Variable Speed Unit, Digital Speed Readout, 1x 150mm Faceplate, 1x Heavy Duty Livecentre Cup or Cone, 1x 300mm Toolrest, 1x Knockout bar, 1x Drive Dog, 1x Spanner, 1x Vicmarc Hat and Owners Manual.
Brand | Vicmarc |
Model SKU | V-007661-AU |
Country of origin | Australia |
Centre Height | 300mm |
Swing over bed | 600mm |
Distance between centres | 550mm |
Work Height (Stand Bottom to spindle centre) | 1070-1379mm |
Indexing holes | 24 |
Headstock & Tailstock spindle | 2MT |
3 Speeds | EVS 10-3000 rpm |
Tool Post Diameter | 30mm |
Hole through headstock spindle | 15mm |
Hole through tailstock spindle | 10.5 |
Quill Travel | 75mm |
Net Weight | 2296kg |
Dimensions (LxWxH) | 1060x720x1280mm |
