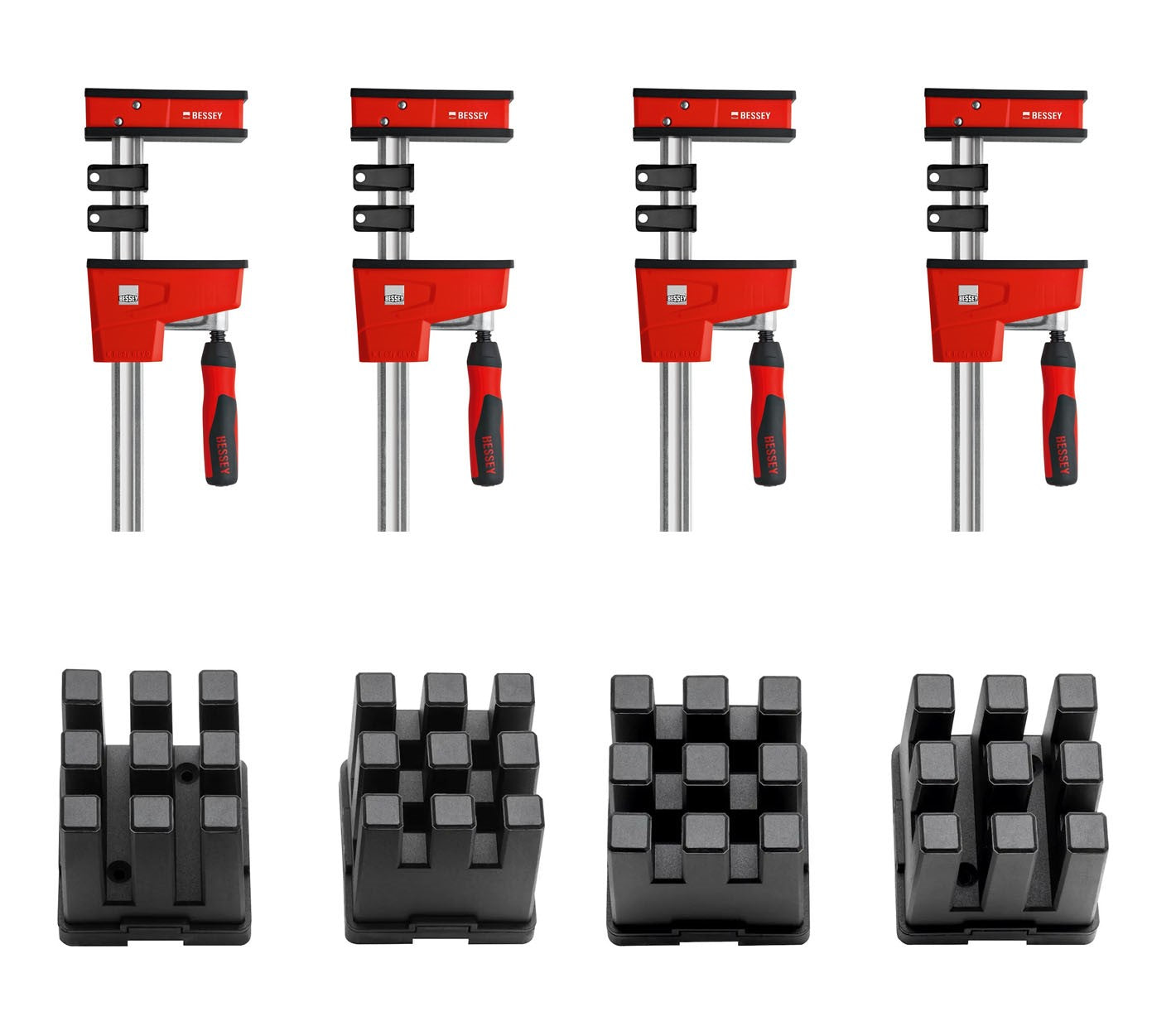

Bessey K-Body Clamps 2 x 600mm & 2 x 1500mm Plus Framing Block Set

A framed clamping system for Bessey K-Body REVO Clamps

The new generation K-Body REVO clamps have 30% larger parallel clamping surface than the previous K-Bodies and these four blocks minimise set up costs; provides parallel clamping pressure, mounts directly to work table for permanent jig set up; easy 90-degree square up adjustments

The framing blocks make setting up Bessey's famous K-Body REVOs as easy as it can possibly get. They all have separately adjustable clamping forces, they're so easy to assemble and they all come carefully packaged so you don't have to worry about losing or misplacing them later on.

Clamp Parallel K-Body Clamp Frame Set of 4 Features

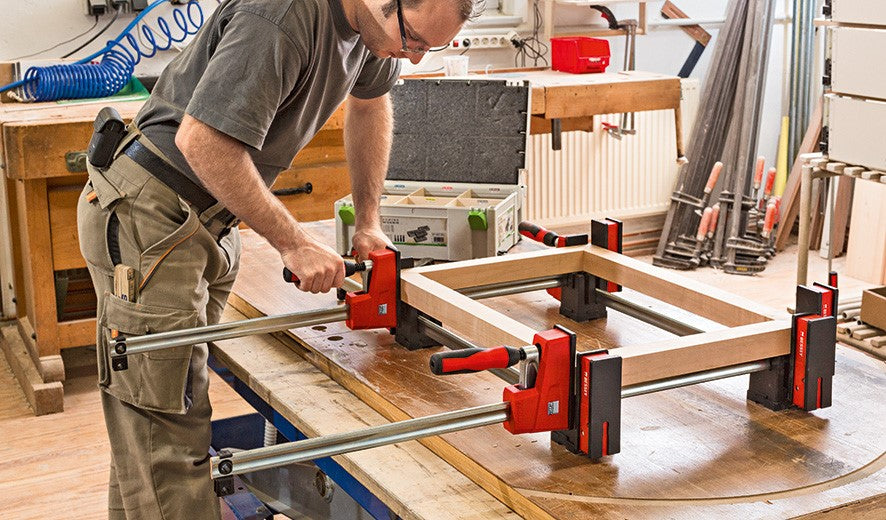

• Set the K-Body REVO’s into a framed clamping system (from 30cm to 250cm) with four 90° KP Blocks
• Separately adjustable clamping force with 2 inserted clamps per corner
• Lightweight / easy to assemble
• Sold as a pack of 4

World Class Parallel Clamping

Anywhere where high pressure clamping, 90° clamping or powerful spreading is required the BESSEY K Body REVO clamp is the ideal tool. With a new design that has increased the already impressive clamping forces now up to 8,000 N (up from 7,000 N in the original K Body REVO), large clamping surfaces and sensible accessories this clamp can do the job. The BESSEY K Body REVO clamp is also ideally suited for accurate adjustment of corners and offset edges.

• Clamping force up to 8,000 N
• The new ergonomically formed 2-component symmetrical plastic handle with hexagon socket means the clamping force can be comfortably applied (max. torque 17 Nm)
• Wear resistant cold drawn square blackened acme threaded spindle
• Very large 95 x 20 x 20mm parallel clamping surface
• Glass fibre reinforced polyamide jaw cover pressure caps to protect delicate surfaces (that are repellent to glue, and also resistant to paint and grease solvents)
• Can be converted to spreading function with no need for tools
• Protective workpiece contact elements - supports work piece from contact with rail.
• Profiled serrated rail - Two brakes on the sliding jaws  incorporates an anti gravity slide braking system, guaranteeing safe, non-slip clamping

K-Body REVO Specifications

• Throat 95mm

REVO K-Body Clamp Jig Block Kit Specifications
