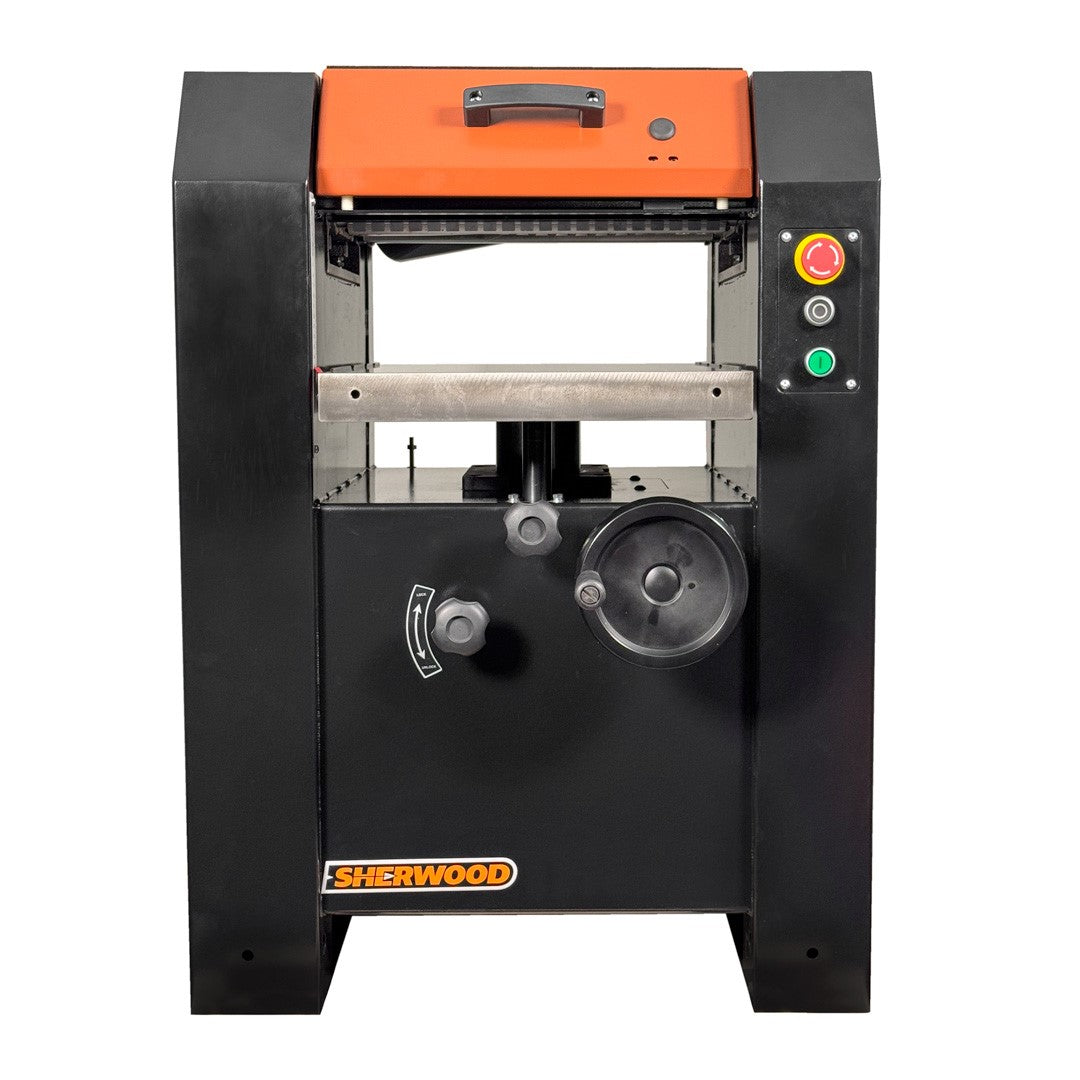

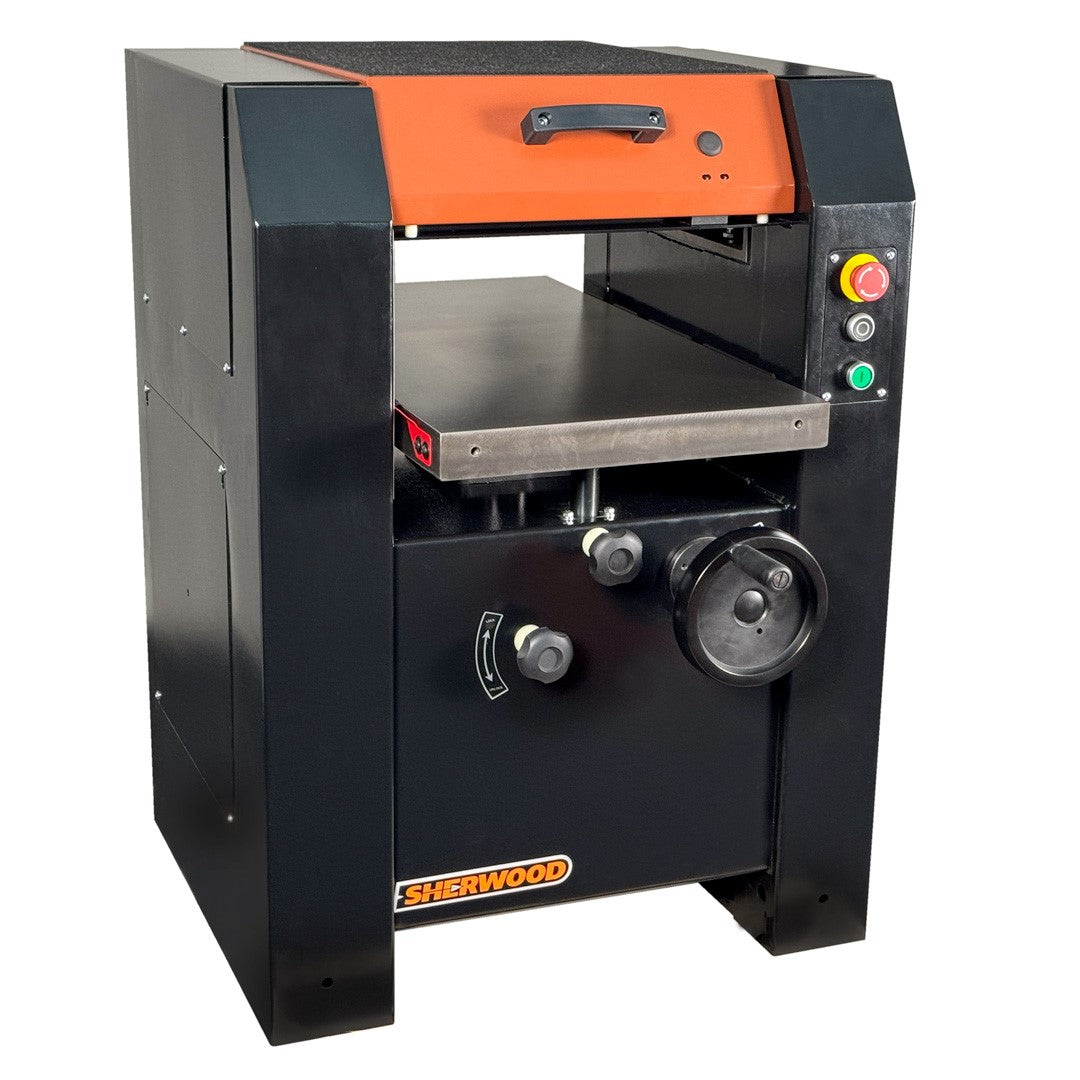

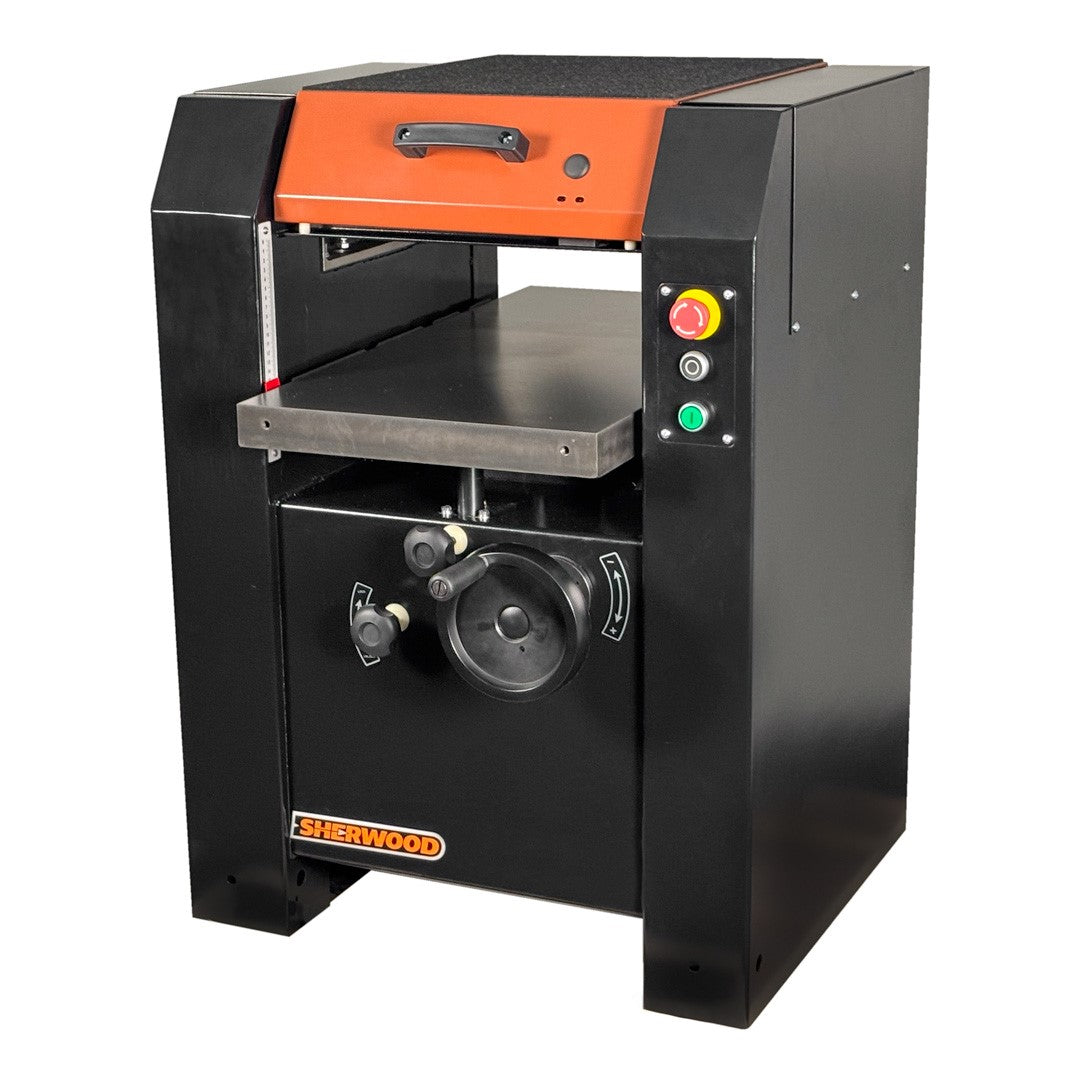

Sherwood 16in Euro Style Thicknesser 406mm 4HP with Helical Cutterhead

Don’t let the good looks fool you. Under the refined design of Sherwood’s 16in Euro Style Thicknesser lies a powerful workhorse with an appetite for timber. It is the perfect partner for craftspeople who demand accurate dimensioning for fine woodworking.

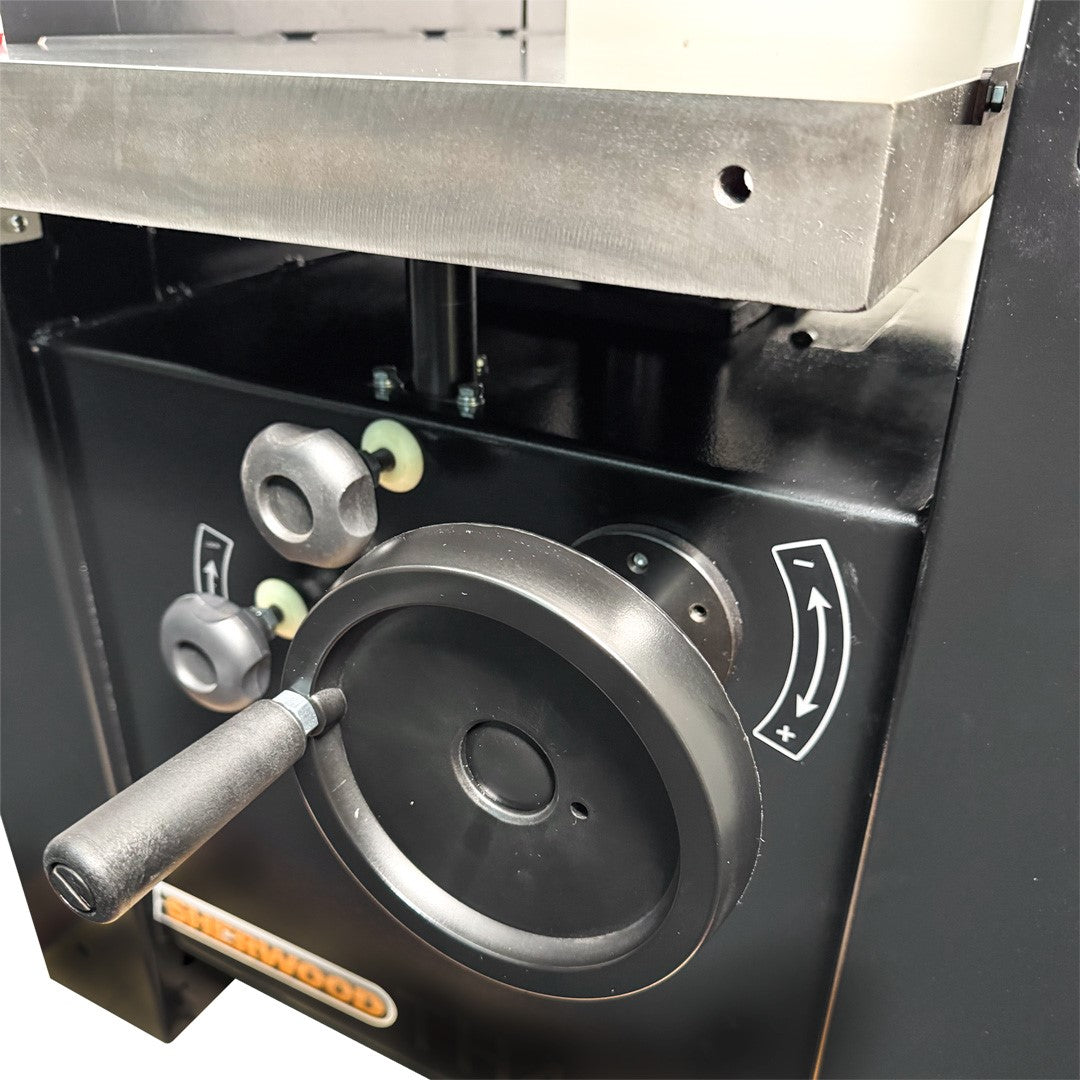

The Sherwood 16in Euro Style Thicknesser is designed for professional woodworking. Its powerful 4HP motor tackles even the toughest Australian hardwoods and wide boards with ease, providing precise depth adjustment and variable feed speed for unmatched accuracy and versatility. The helical cutterhead ensures superior cut quality and durability, while advanced dust management and easy cutterhead access enhance efficiency and safety. This machine is your reliable choice for demanding woodworking tasks.

Wide Planing Capacity

The Sherwood 16in Euro Style Thicknesser can handle boards and slabs up to 400mm in width. The feed location of narrower boards can be varied from left to right across the cutterhead, distributing wear evenly across the 72 tungsten carbide inserts, reducing downtime and boosting productivity.

Powerful Motor

Equipped with a 4HP S6 induction motor, the Sherwood 16in Euro Style Thicknesser effortlessly handles even the toughest Australian hardwoods. With this much power available, it can deliver a maximum depth of cut of 5mm, allowing rapid progress towards your final stock dimension.

Helical Cutterhead

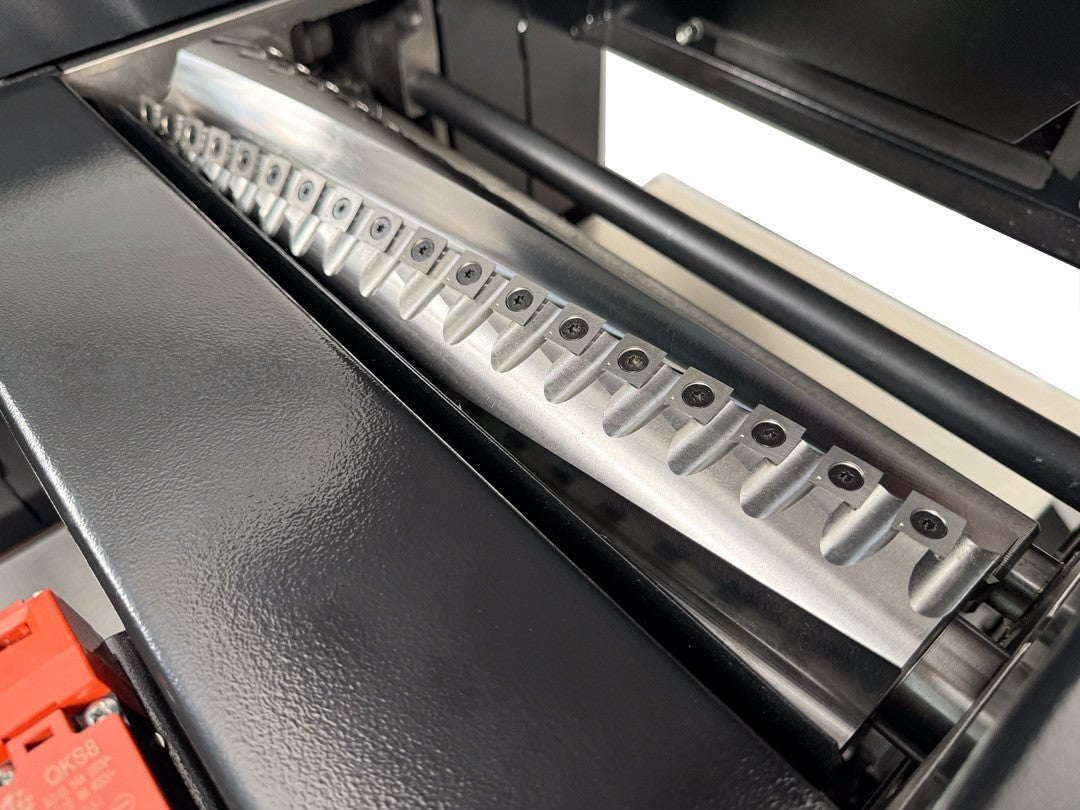

The helical cutterhead features 4 helical spirals of 18 four-sided tungsten carbide inserts. Each insert is lightly-radiused and oriented at a shear angle to the angle of rotation, delivering a superior cut quality and excellent edge retention.

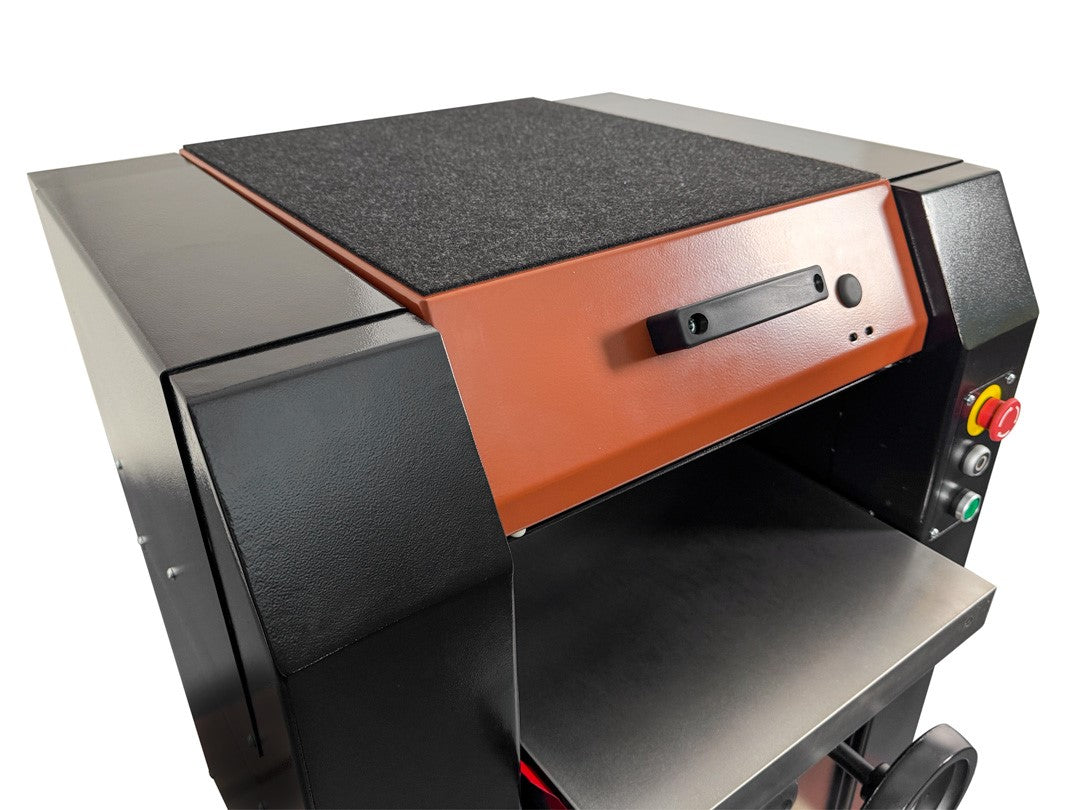

Dust Management

The Euro-style cabinet is not just for looks. Enclosing all the moving parts inside steel panelwork directs your extractor’s airflow to exactly where it is needed, while isolating the motors and drivetrains from dust and debris.

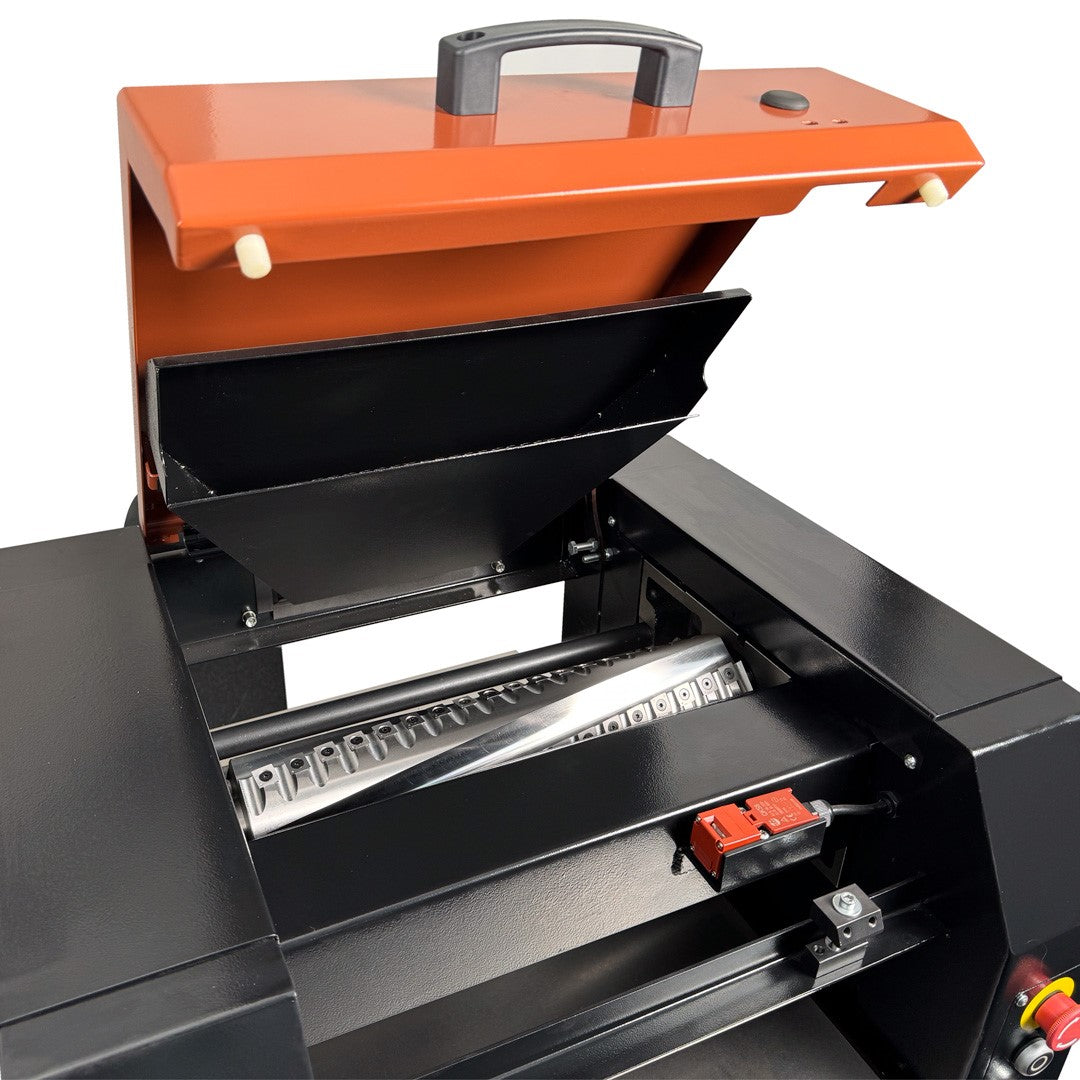

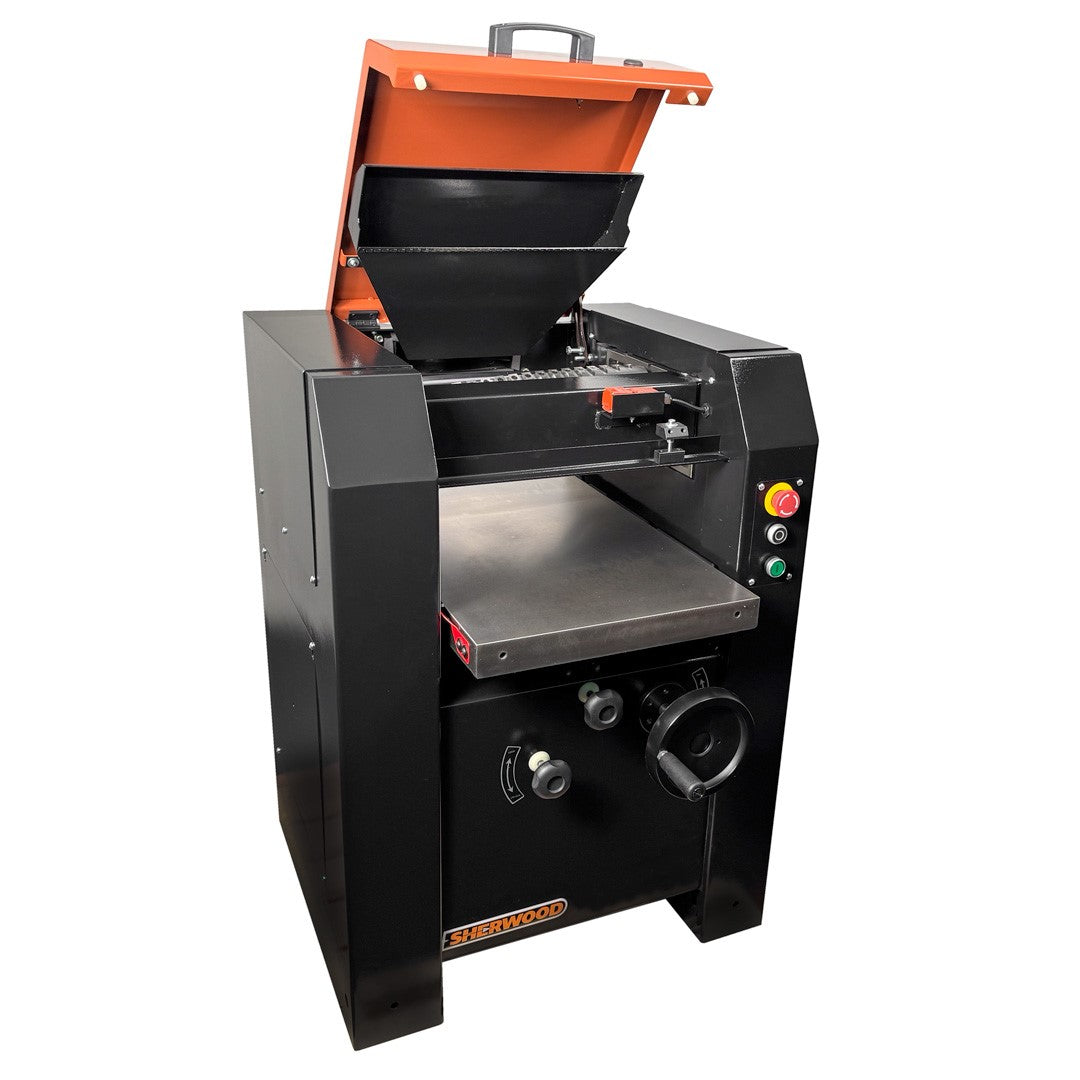

Cutterhead Access

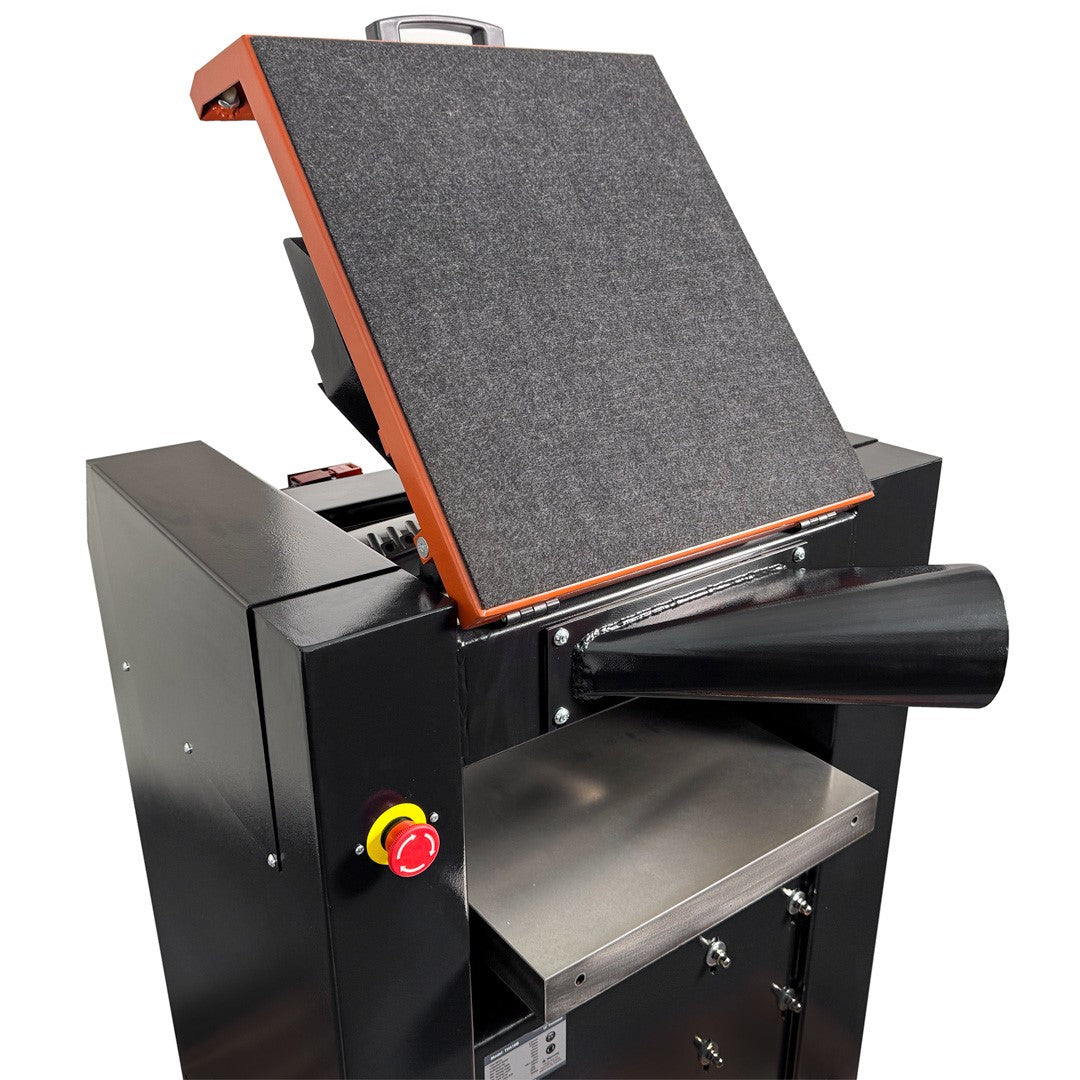

The Sherwood 16in Euro Style Thicknesser has a hinged lid providing easy access to the cutterhead for insert rotation or changes. A cutoff switch ensures that the machine cannot be started with the lid open.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other thicknesser in its class is more supported than the Sherwood 16in Euro Style Thicknesser.

Powerful Motor

The cutterhead on the Sherwood 16in Euro Style Thicknesser is powered by a 4HP induction motor rated for an S1 duty cycle. The Sherwood 16in Euro Style Thicknesser effortlessly handles even the toughest Australian hardwoods

Rapid Stock Removal

A 4HP cutterhead motor driving a helical cutterhead delivers deep potential cut depths of up to 5mm per pass. Full-width anti-kickback fingers and a serrated infeed roller ensure that stock is securely moved through the machine even at high removal rates.

Helical Head

Helical cutterheads deliver a very efficient and smooth cut, requiring less horsepower, making smaller chips and operating with far less noise. The helical cutterhead features 4 helical spirals of 18 four-sided tungsten carbide inserts. You will only need to replace the inserts when all four edges are dull, giving you much more life than straight HSS knives.

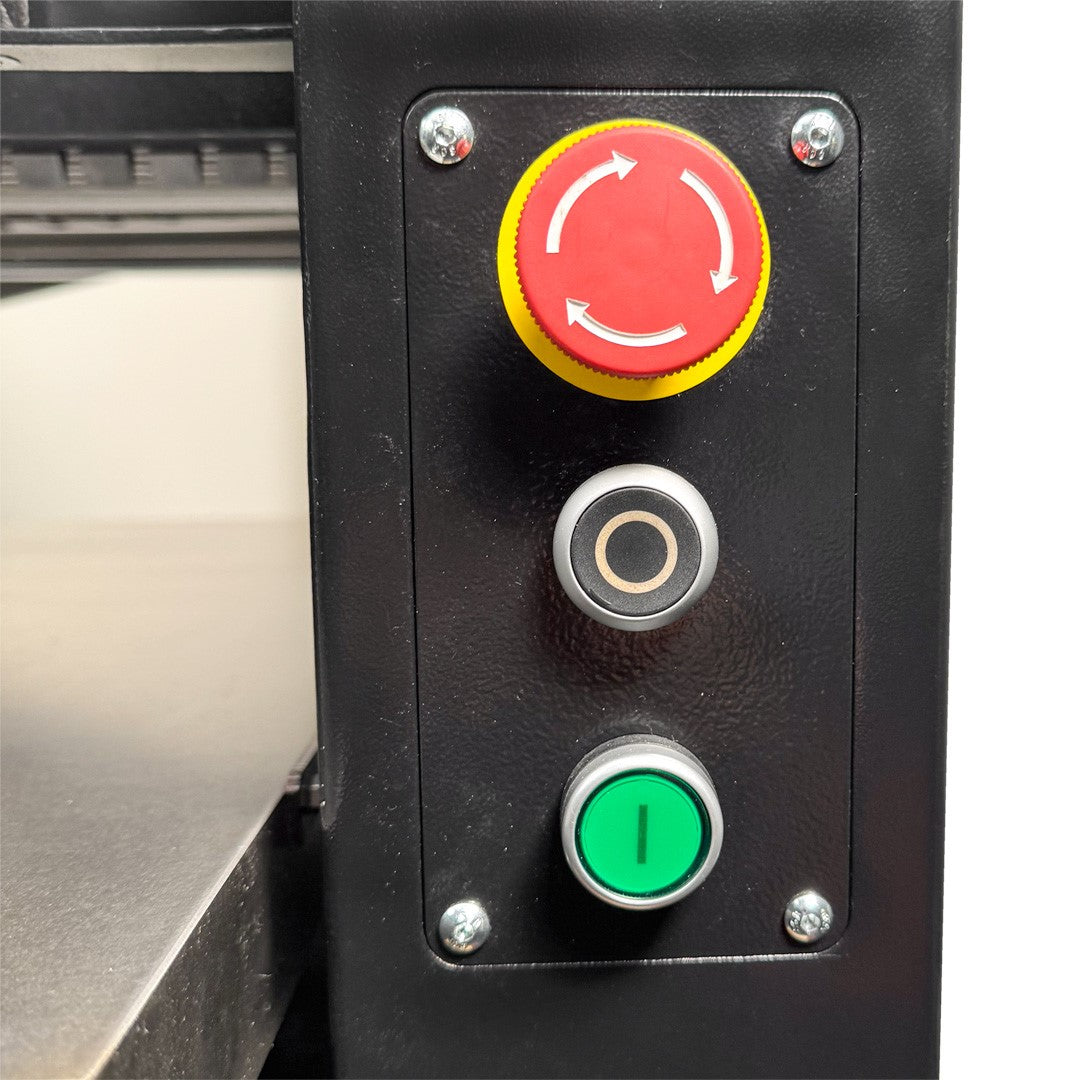

Safety Features

Front and back emergency stops and a cutoff switch on the lid ensure maximum safety for operators.

Dust Management

The Euro-style cabinet is not just for looks. Enclosing all the moving parts inside steel panelwork directs your extractor’s airflow to exactly where it is needed, while isolating the motors and drivetrains from dust and debris.

5-Year warranty

Backed by a 5-year limited warranty, no other thicknesser in its class is more supported than the Sherwood 16in Euro Style Thicknesser.
