Sherwood  |  SKU: SWTSC-406-PH-1

Sherwood 16in Industrial Thicknesser Helical Cutterhead Single Phase 3HP

$4,099.00
Melbourne: 7, Perth: 0

Free Shipping ends in:

00 : 00 : 00 : 00
Days
Hours
Mins
Secs

Request Further Information

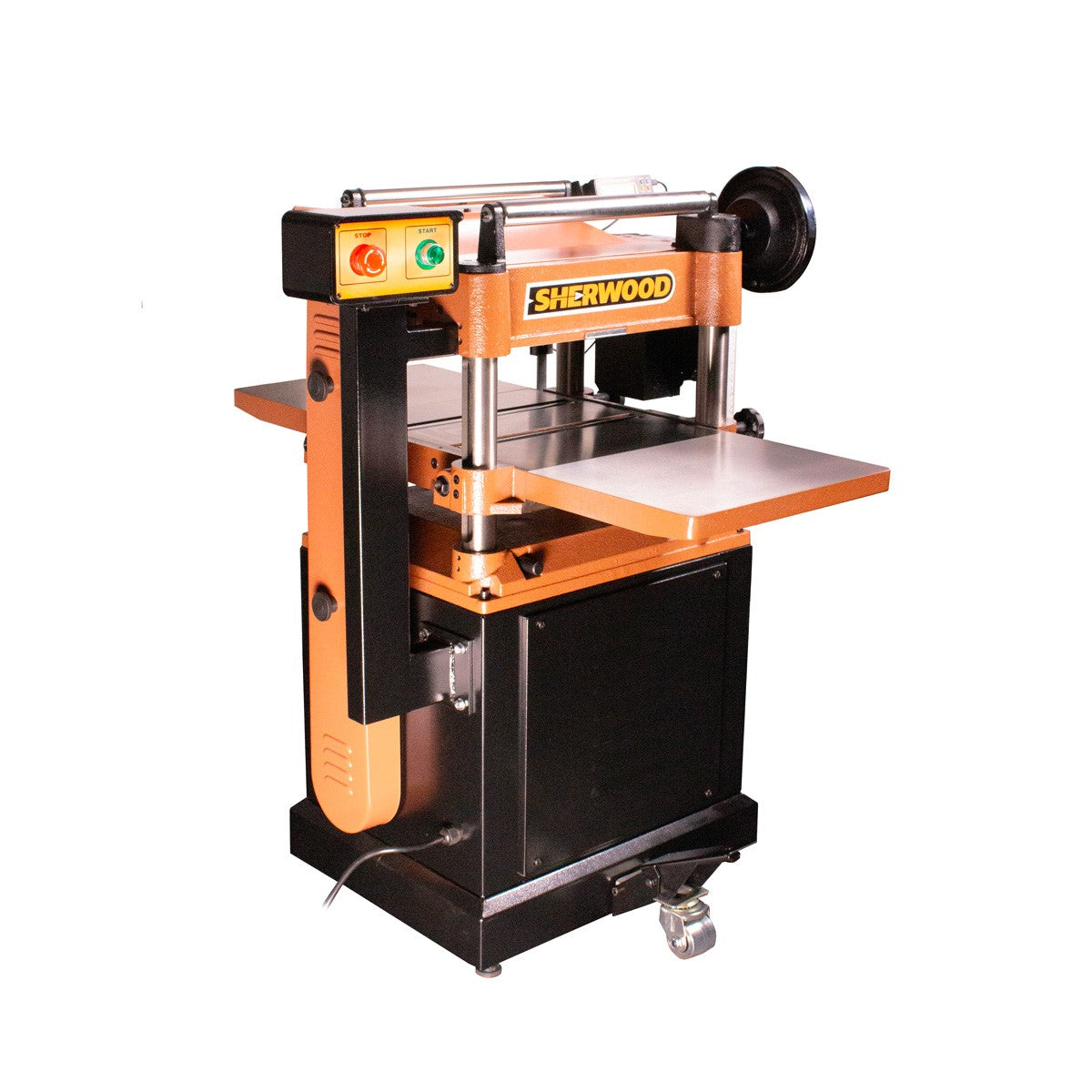

Sherwood 16in Industrial Thicknesser Helical Cutterhead Single Phase 3HP

Eligible for FREE Shipping*

Sherwood's upgraded 16in Industrial Thicknesser brings factory-grade specifications to Australian woodworkers. Built to last a lifetime – a machine that will never disappoint.

Discover unparalleled workshop excellence with the Sherwood 16in Industrial Thicknesser – your ultimate companion for precision planing. Constructed from robust cast-iron, the solid base, feed tables and cutterhead ensure stability and vibration absorption. Lock in the bed for consistent operations, whilst using the analogue or digital read out for precise measurements. Experience upgraded efficiency with the enhanced switch arm, a dynamic two-speed gearbox, and a 4in extraction port to keep your workspace clean. Backed by Sherwood’s 5-year warranty – it's time to elevate your workflow and watch the Sherwood 16in Industrial Thicknesser become an indispensable asset in your toolkit.

More Power

The three-horsepower induction motor delivers enough power to muscle through demanding dimensioning jobs, even in challenging Aussie hardwoods. The motor, which runs a triple-belt pulley system to the cutterhead, is matched with a two speed gear box to adjust your feed rate – slow feed rate for a better finished surface, and fast feed rate for rapid dimensioning.

More Accuracy

The hefty cast body eliminates vibration and cutterhead chatter, while the precision leadscrew head adjustment allows you to dial in your exact setting with confidence. Once the head position is set, the bed locks keep it tightly in place, increasing your accuracy and reducing snipe.

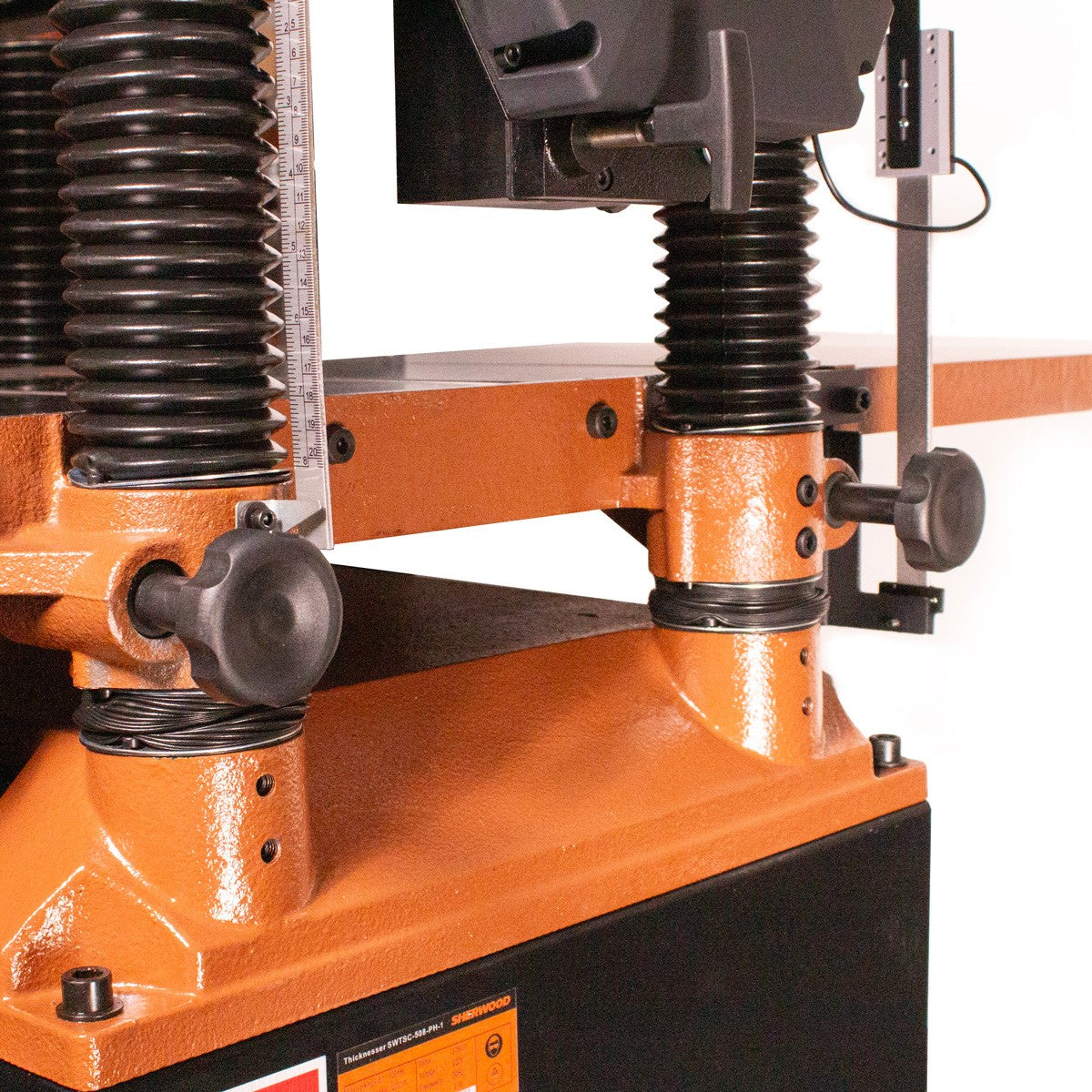

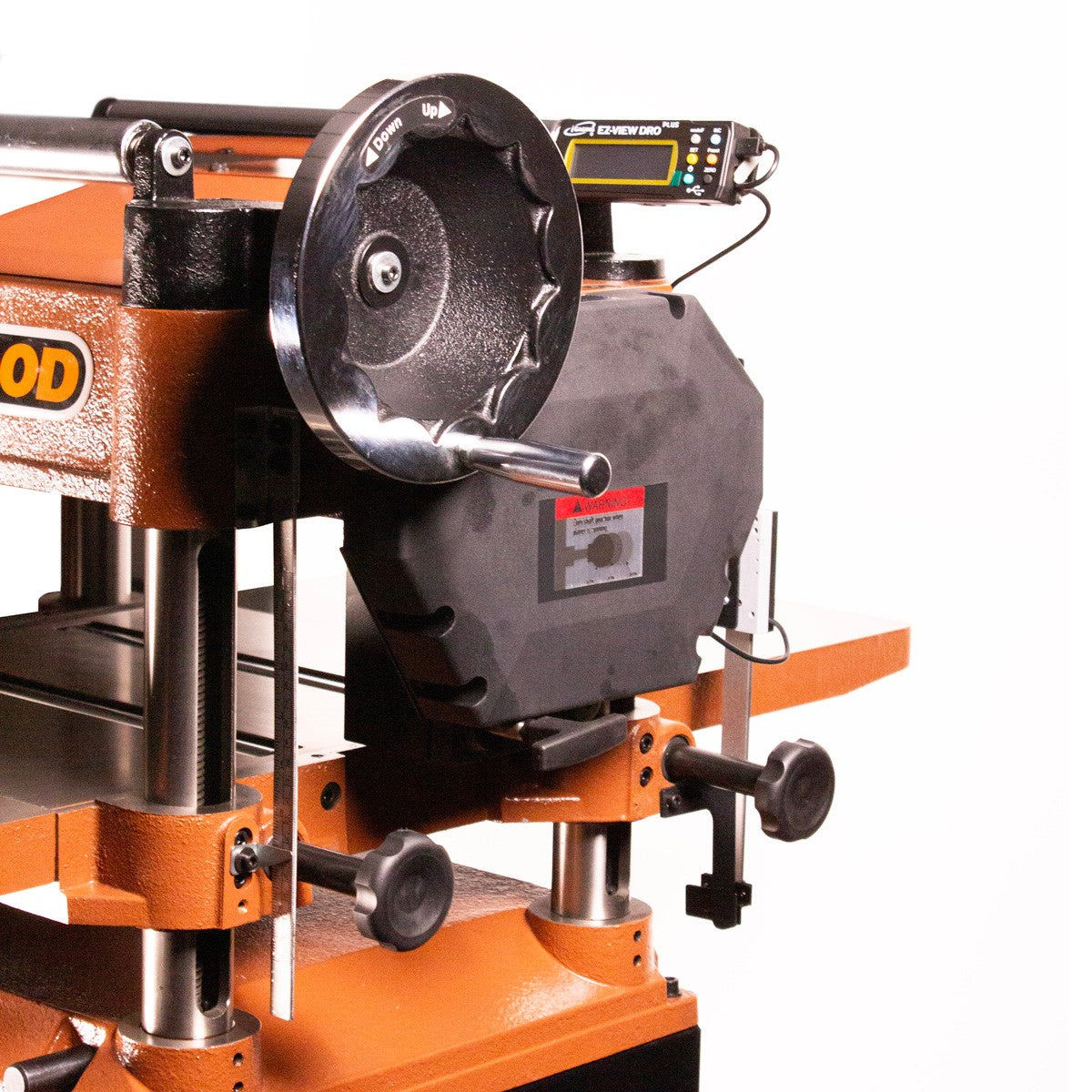

More ways to Measure

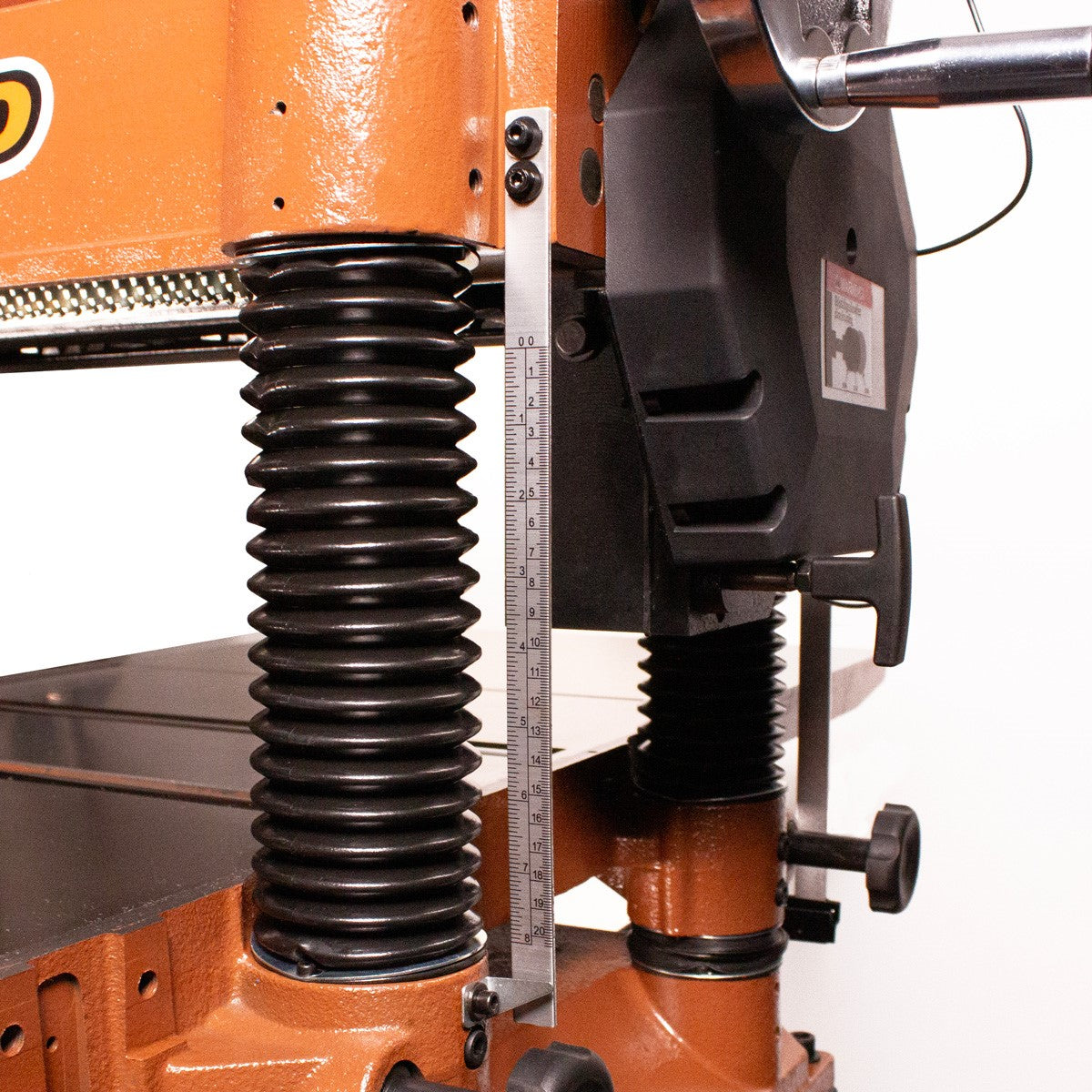

The Sherwood 16in Industrial Thicknesser is fitted with four massive support posts with chain-driven precise height adjustment. The steel rule read out on the left-hand side of the bed allows for quick for manual height adjustments.

For exacting precise measurements, the Sherwood 16in Industrial Thicknesser comes fitted with an iGaging Digital Read Out (DRO). The easy-to-read display shows metric in 0.05mm increments, as well as decimalised and fractional imperial in 1/64in increments. The hardened stainless-steel body is IP-54 water/dust resistant rated for long life. Zero out your measurements as needed, and have confidence that you’ll never be just ‘close enough’ again.

More Mobility

The Sherwood 16in Industrial Thicknesser is mounted on a cabinet equipped with four tough and smooth-rolling castors, allowing you to easily position the machine when needed. In one motion the foot locking knob, locks the castors into place, giving you a stable bed to plane. The inbuilt extendable lifting handles, allow for easy movement with a forklift or joist to manoeuvring into exact position in your workshop.

Helical Head

Helical cutterheads?deliver a very efficient and smooth cut, requiring less horsepower, making smaller chips and operating with far?less noise than other types of cutterheads.?Unlike conventional single straight knives, you do not need to replace the knife if it becomes damaged or dull. Instead, if one knife edge is damaged or needs sharpening simply turn it to another edge in seconds. You will only need to replace the inserts when four edges are dull, giving you much more life than HSS knives.

5-Year Warranty

All Sherwood products feature a standard 5-Year limited warranty. No other table saw in its class is more supported than the Sherwood 16in Industrial Thicknesser.

Helical Head

Helical cutterheads?deliver a very efficient, smooth and quieter cut.?Get much more life than HSS knives, with carbide knives that will only need replacing when the inserts when four edges are dull.

Rugged Build

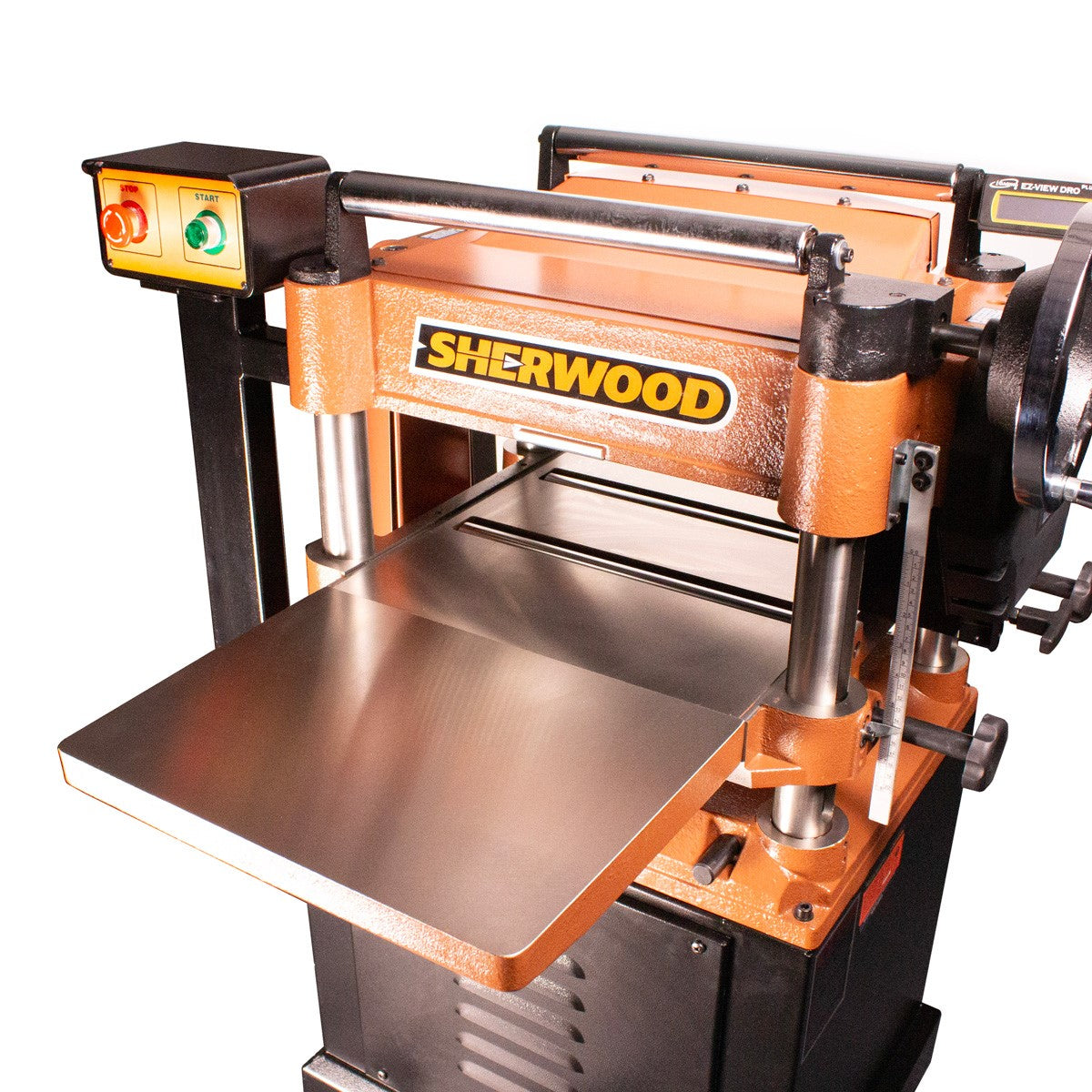

The Sherwood 16in Industrial Thicknesser features a massive cast-iron base, feed tables and cutterhead assembly.

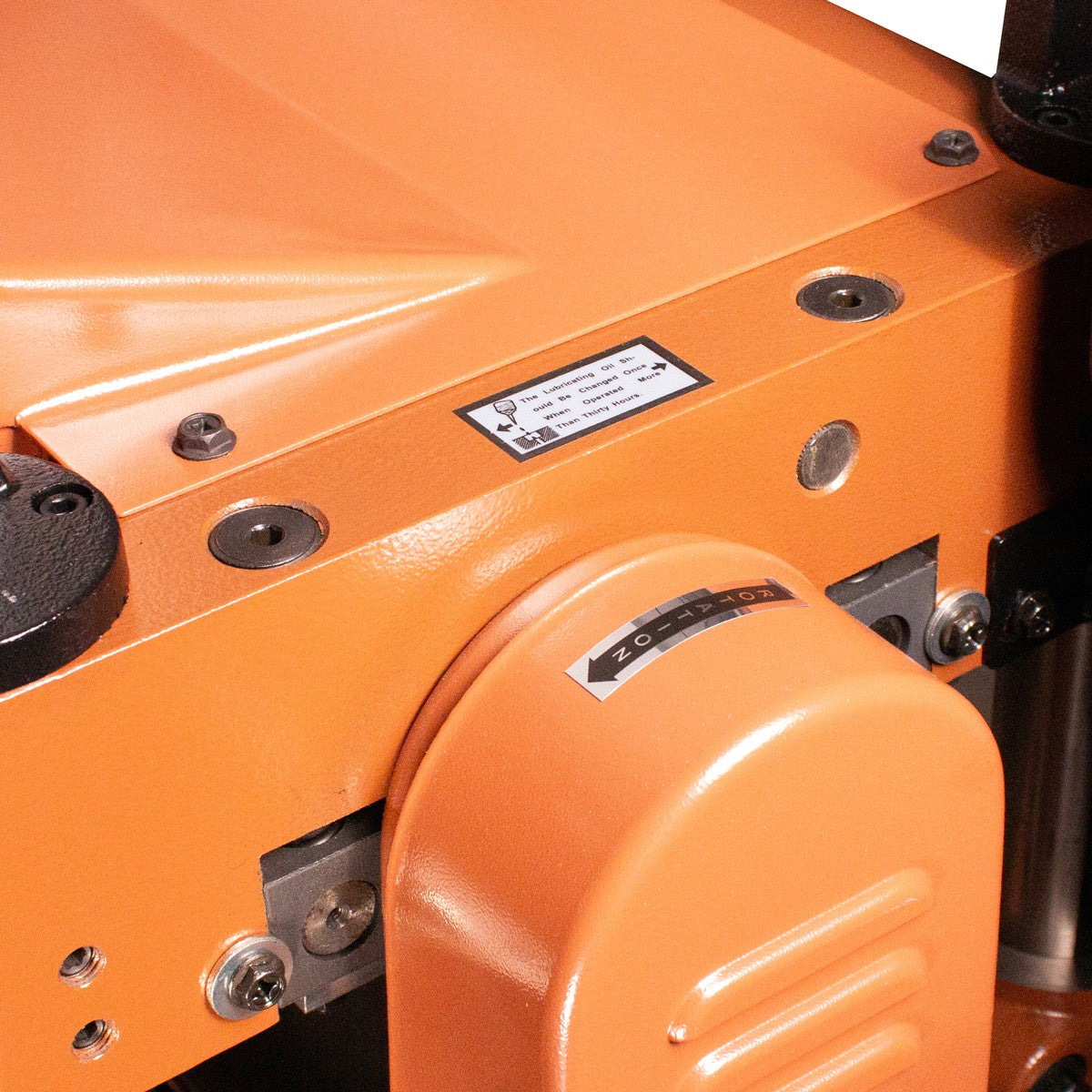

Two feed-speed gearbox

The two feed-speed gearbox is included as standard to adjust your feed rate – slow feed rate for a better finished surface, and fast feed rate for rapid dimensioning.

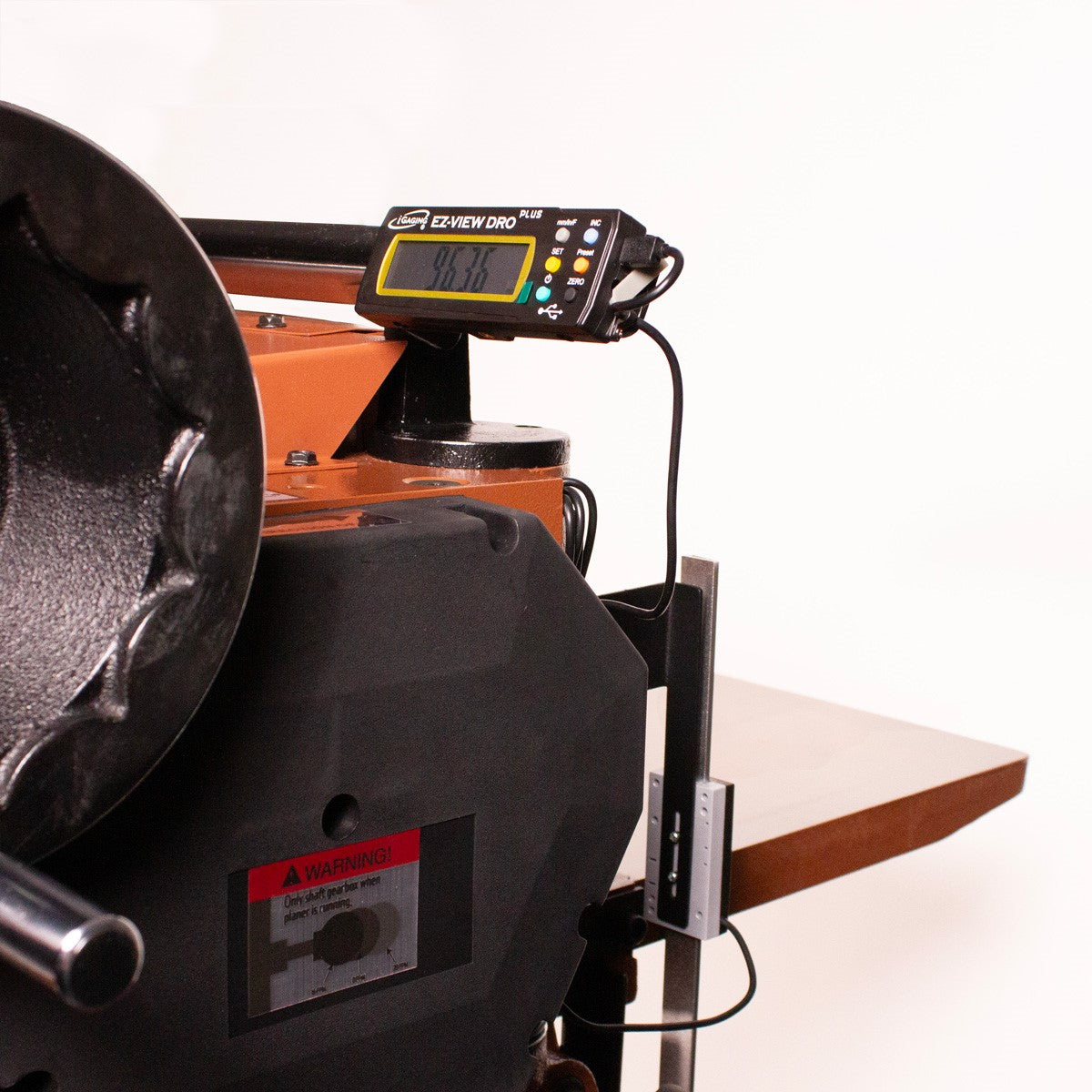

Digital Readout

The easy-to-read iGaging DRO displays metric in 0.05mm increments, as well as decimalised and fractional imperial in 1/64in increments. The iGaging DRO takes the guess work out of your precise adjustments – never be off with your measurements again!

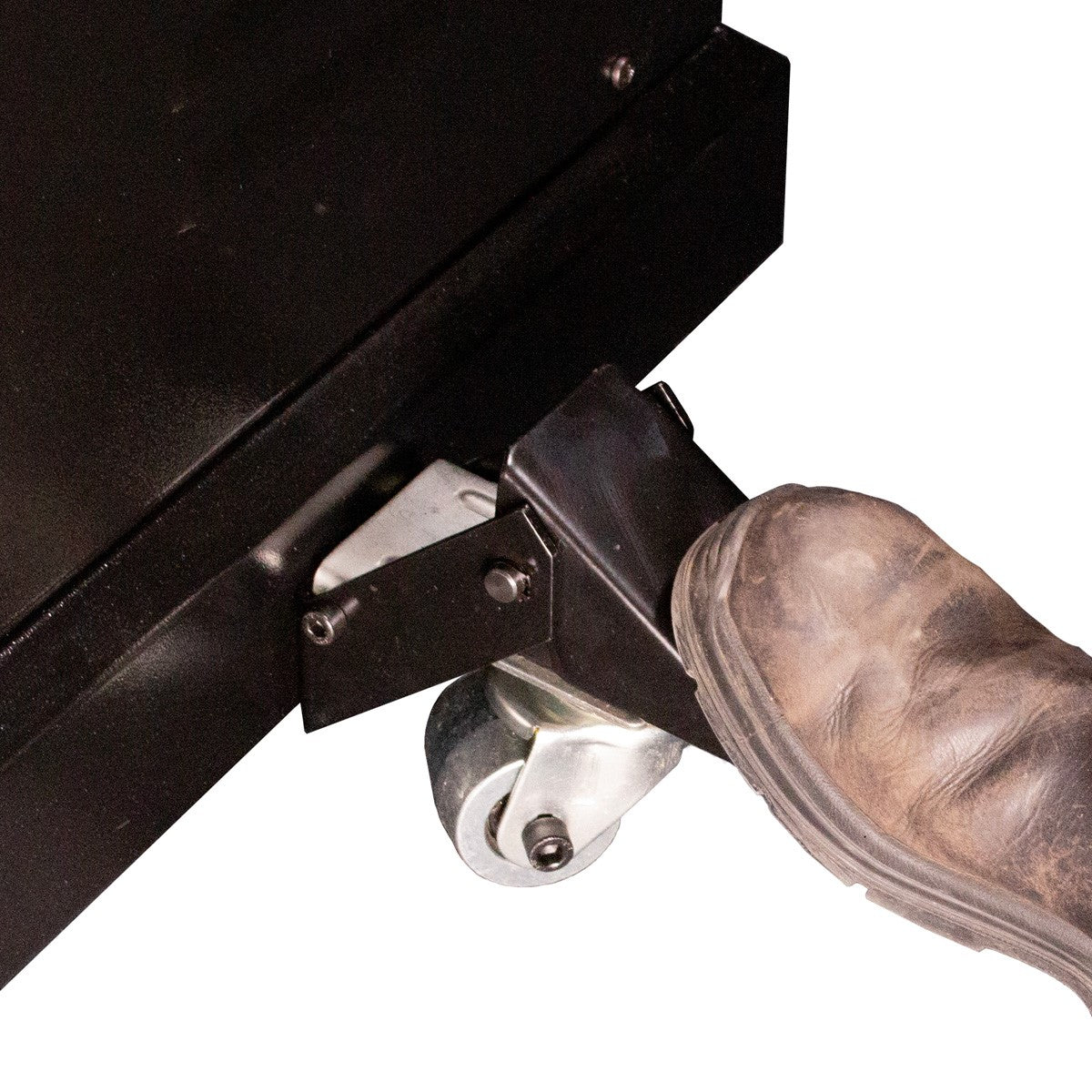

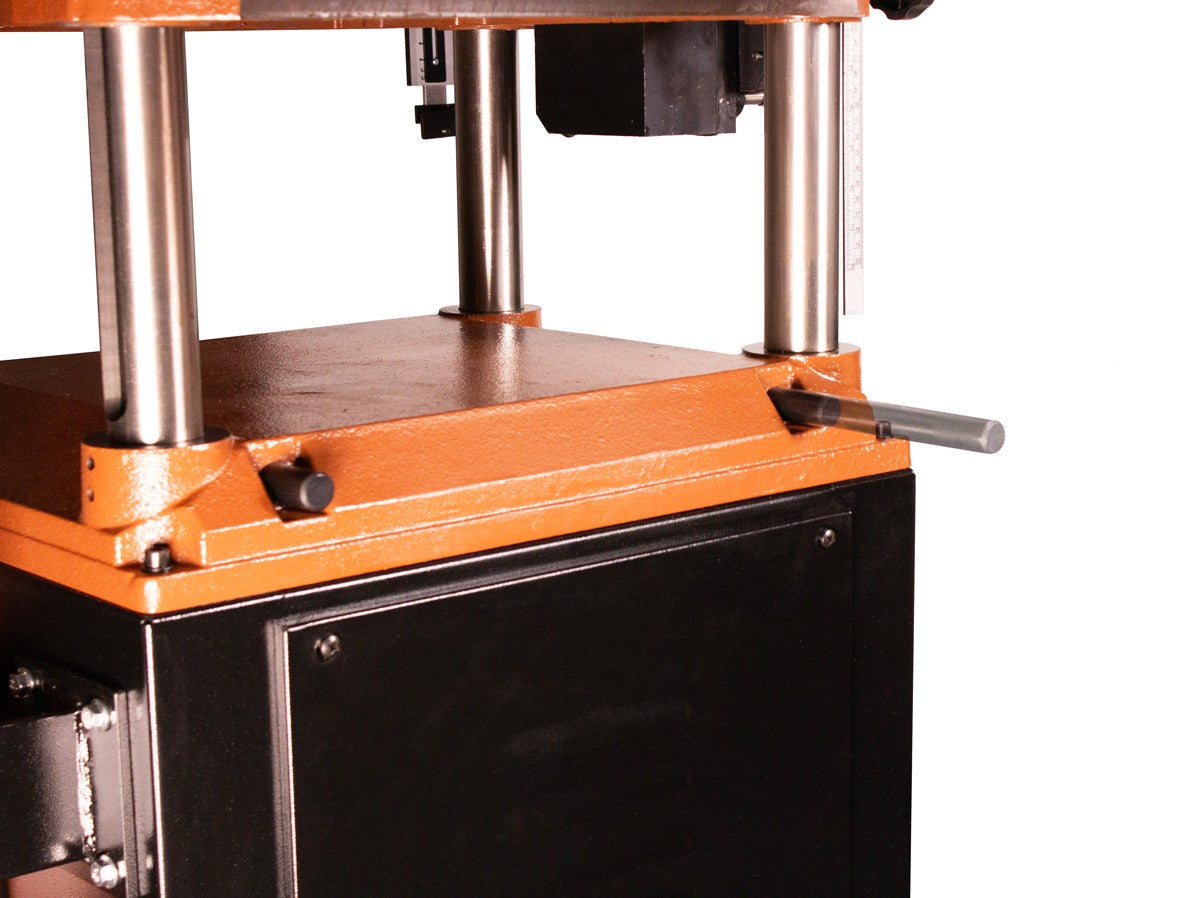

Stop, lock and go

A mobile wheel kit is built into base, featuring an easy one foot engagement to move around as necessary. The locking castors then keep your thicknesser stable and in place for whatever you throw at it. But that’s not all that locks! Lock your table in for consistent thicknessing large quantities of material.

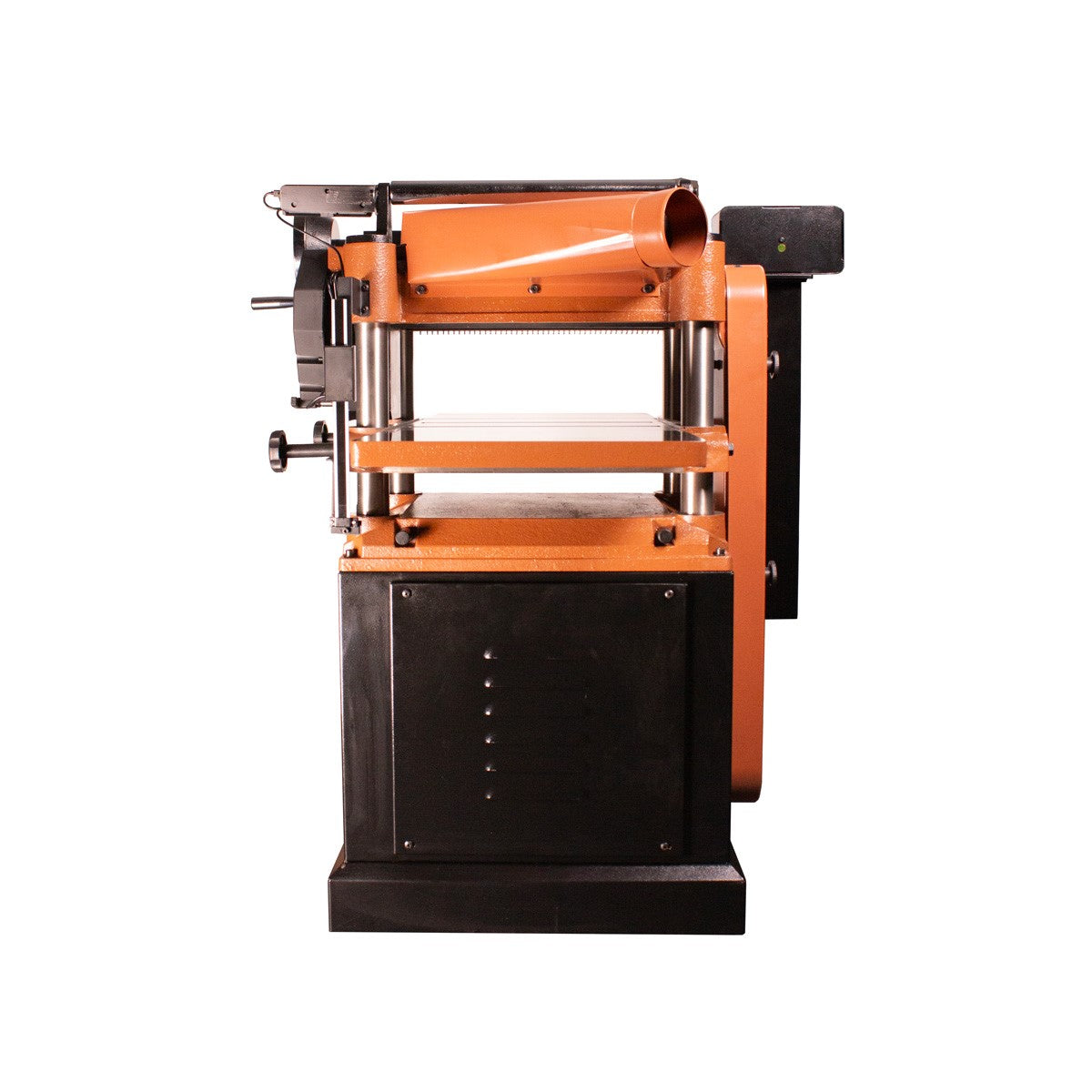

Dust Extraction

The handy large integrated dust hood with 4in outlet, efficient extracts dust right at the source, keeping your workshop neat and tidy.

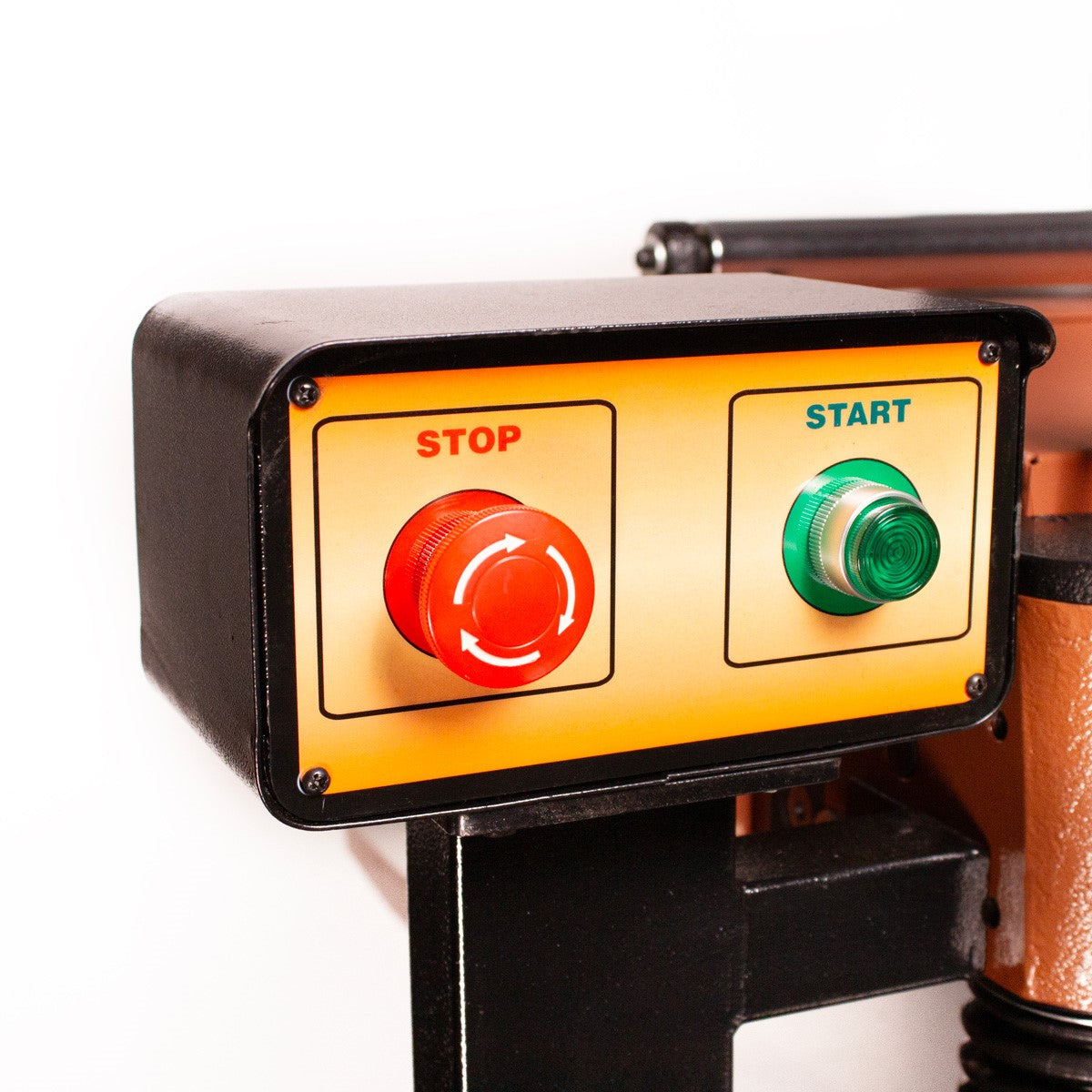

Upgraded Switch Arm

This model features an upgraded switch arm from the previous model. The switchbox is located on a sturdy steel arm that contains the power cord, preventing any catching or damage to the wire. The clear switch display, has a quick-stop function.

Magnetic NVR (No-Volt-Release) Switch

The Sherwood 16in Industrial Thicknesser is fitted with a magnetic no-volt-release switch, essential for those wanting to install automated extraction to their thicknesser.

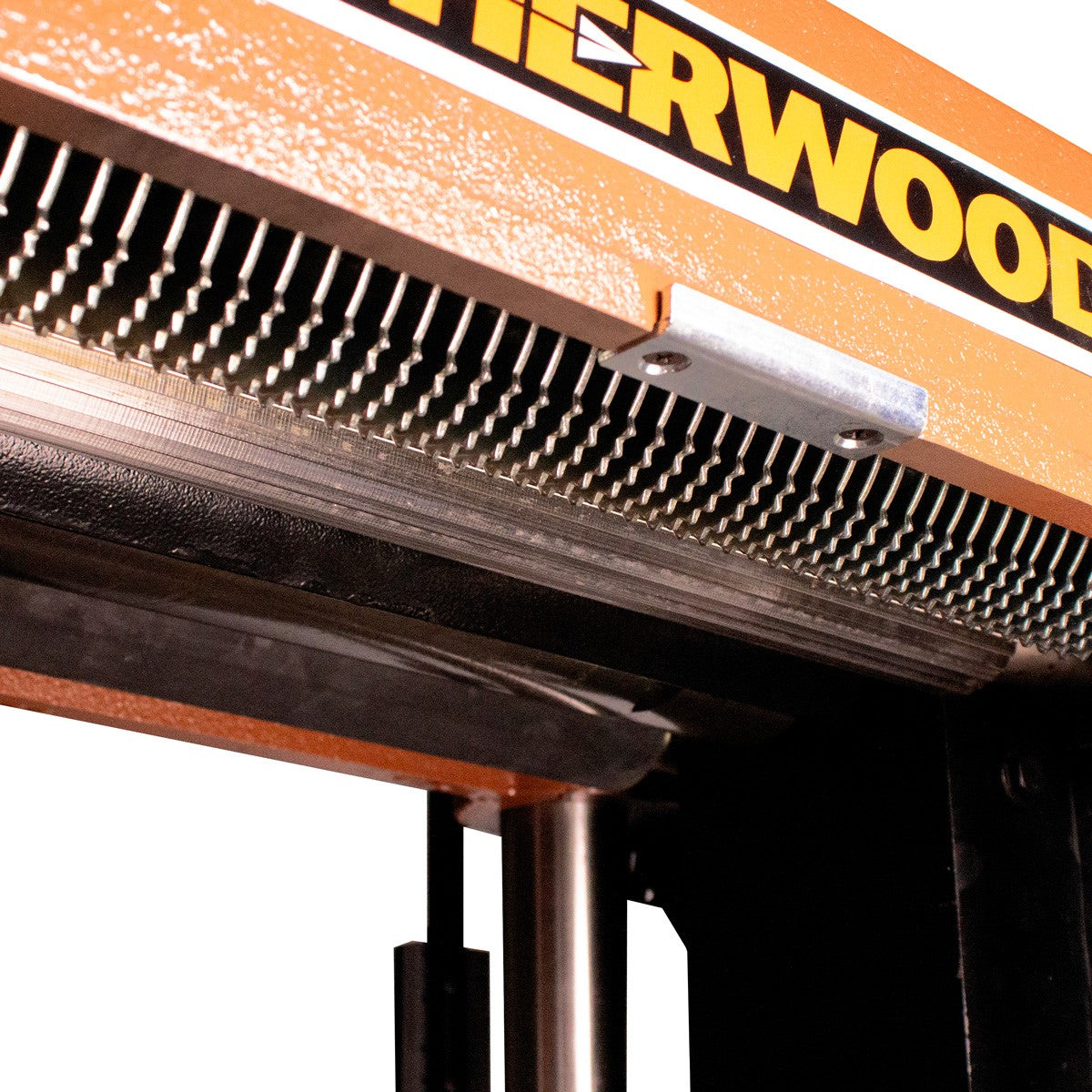

Rollers

The Sherwood 16in Industrial Thicknesser features serrated steel infeed and solid steel outfeed roller, as well as integral rollers for passing material from the outfeed to infeed side.

5-Year Warranty

All Sherwood products feature a standard 5-Year limited warranty. No other table saw in its class is more supported than the Sherwood 16in Industrial Thicknesser.

SKU

SWTSC-406-PH-1

Motor Size

2200W 3HP - 240V (15A circuit required)

Motor Type

Induction

# of Belts

Cutterhead Speed

5000rpm

# of Blades

85 Knives

Blade Type

Replaceable

Height Lock

Yes

Max Planing Capacity

406 x 203 mm

Min Stock Thickness

1.1mm

Planer Bed Size

390 x 450mm

Extension Table Size

406 x 305mm

Planer Feed Speed

4.8 & 6m/min

Dust Port Diameter

102mm (4in)

Machine Footprint

965 x 1060 x 1115mm
