Sherwood Deluxe Cast Iron Router Extension Wing for Table Saws 685 x 406mm with SRM-1800 Round Body Router Motor
Sale ends in:
Sherwood Deluxe Cast Iron Router Extension Wing for Table Saws 685 x 406mm with SRM-1800 Round Body Router Motor is backordered and will ship as soon as it is back in stock.
Request Further Information
Sherwood Deluxe Cast Iron Router Extension Wing for Table Saws 685 x 406mm with SRM-1800 Round Body Router Motor
Short on space but still after a premium router table setup?
Please note: These kits are designed to fit most cast iron table saws. Table saw is not included.
Also available with the Sherwood Plunge Router Lift.
The Sherwood 685 x 406mm cast-iron router top can be mounted directly to most table saws with a 685mm (27in) table depth, or with minimal compromise on larger saws. Shown here with a full router lift and dust box attached to a TS-250-SL-30-F cabinet saw, it transforms unused space into a high-performance routing station.
Installation is straightforward using the included hardware: simply align the pre-cast holes in the router wing, mark and drill your saw’s cast-iron edge (a 16mm twist drill is recommended for alignment), then secure with the supplied M12 bolts. While some saws may require alternative hardware, once mounted, the router wing becomes a solid, integrated extension of the saw.
Router Lift & SRM-1800W Round Body Motor

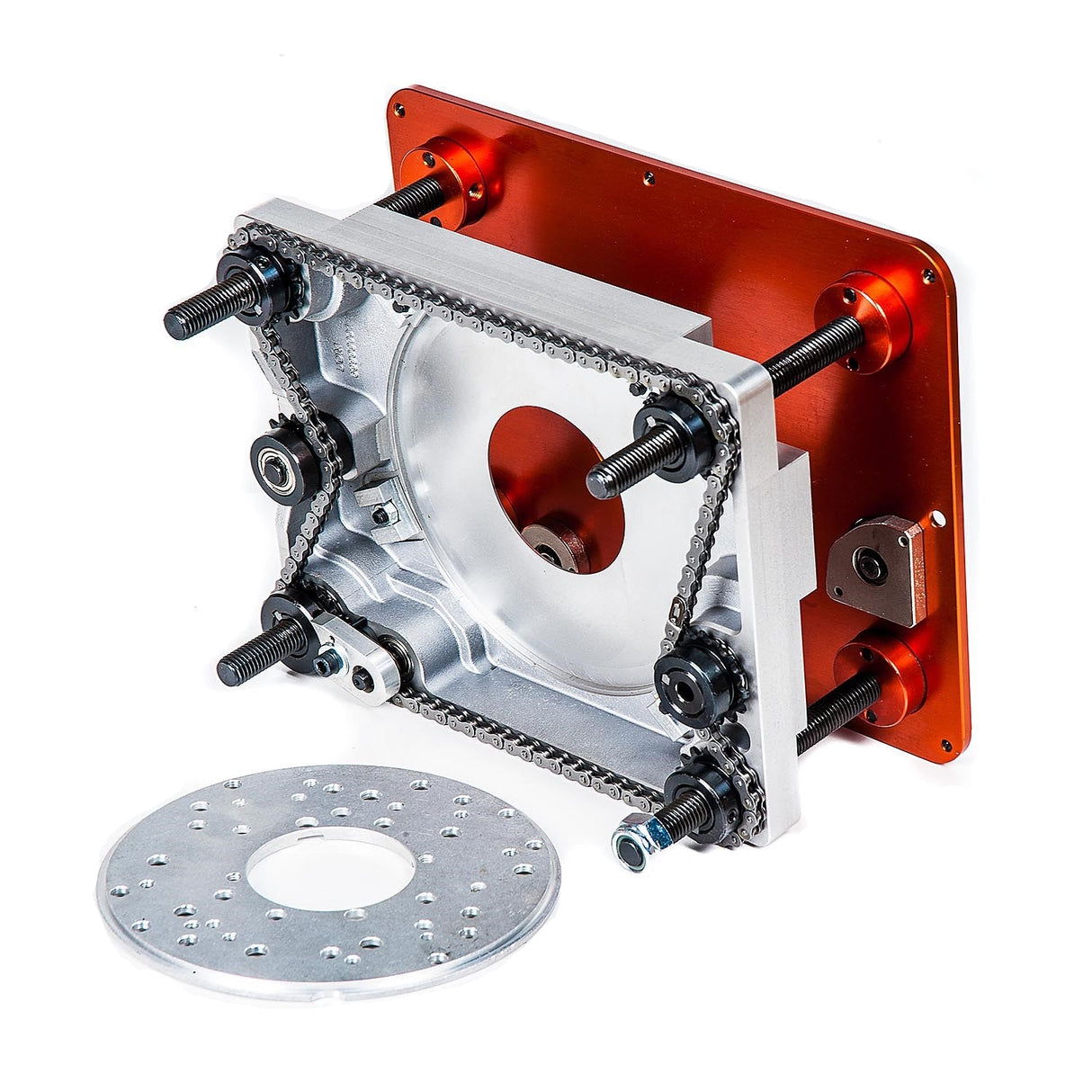

The Sherwood Router Lift delivers precision bit height adjustment, eliminating guesswork and ensuring clean, accurate routing. Built with a 6mm-thick CNC-machined and anodised aluminium mounting plate, it sits perfectly flush on the router table via six levelling grub screws. Its four-pillar lift design uses a hardened steel threaded rod and sealed bearings to achieve ultra-fine, backlash-free adjustments as precise as 0.1mm. A reinforced cast aluminium cradle dampens vibration for cleaner cuts, while the lift’s six-point billet aluminium clamp securely holds 106.7mm (4.2in) round-body motors—standard in North America—for compatibility and ease of bit changes above the table.
Paired with the Sherwood Round Body Router Motor, this setup becomes a high-performance routing solution. The motor delivers 2400W input and 1800W output, running at a continuously adjustable speed between 10,000 and 22,000 RPM with load-compensating control. It fits seamlessly into the Sherwood lift, mounts in minutes, and operates on a standard 240V 10A plug. Designed for table use, it skips unnecessary plunge bases and includes both 1/2in and 1/4in chucks, along with dual spanners for quick, above-table bit changes. Dust-sealing around the variable speed dial ensures longevity in demanding workshop conditions.
What's Included?
- 685 x 406mm cast-iron precision table top
- 27 x 16in Super-Flat Fence
- Sherwood Round Body Router Motor
- Router Lift
- Dust Collection Box
- Remote switchbox and mount bracket
- Extra 1.5m length of 2 1/2in dust hose to connect fence with collection box
- Most necessary mounting hardware
PLEASE NOTE: some hardware is included but may not suit your table saw so some may need to be provided to complete installation
Installation & Use Advice
- Due to the extra mass being hung from the side of the table saw, there may be a possibility that the whole saw could tilt and fall over. We recommend mounting some simple legs to the side of the saw that this table is mounted to in case tipping is likely - especially if the package is installed to the right-side of the blade.
- You will need to mount and remove the router fence every time you swap between the sawing and routing modes (using as a table saw or using as a router table).
- At this stage it is not possible to fit the fine adjustment assembly kit due to the mounting configuration.
